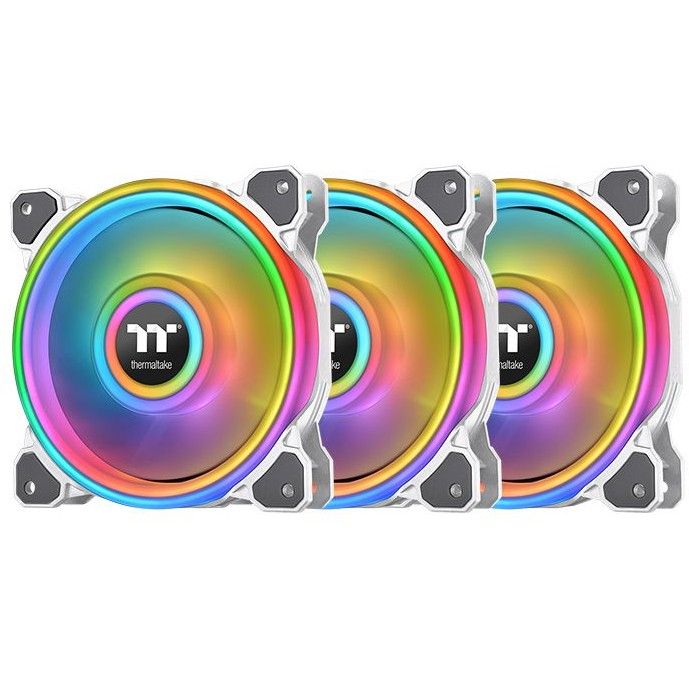

Thermaltake Riing Quad radiator fan is designed with 4 independent LED rings totaling 54 LEDs and 16.8 million color combinations. The fan is virtually inaudible when in operation and supports our NeonMaker light editing software and TT RGB PLUS Ecosystem.

Riing Quad Series

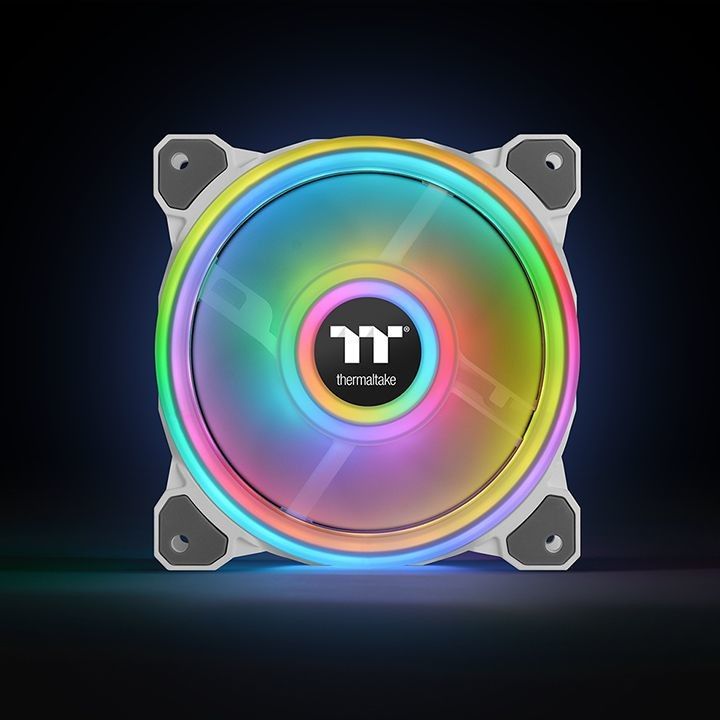

The Riing Quad radiator fan is unique and in its class of its own, combining outstanding reliability, silent operation, unrivaled cooling, and most importantly the fan is engineered with 54 LEDs, split between 4 separate ring’s creating vibrant and gorgeous lighting effects when set through our NeonMaker light editing software.

NeonMaker Light Editing Software
The NeonMaker is a new and innovative approach to adjusting the RGB lighting on the Riing Quad fans, allowing users to customize lighting profiles and orchestrate their own light shows. Personalize the Riing Quad fans with NeonMaker!

SET UP YOUR SPECTACULAR LIGHTING
Create fascinating lighting effects with our NeonMaker Light Editing Software, energize your PC with dynamic RGB lighting across your build.

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.

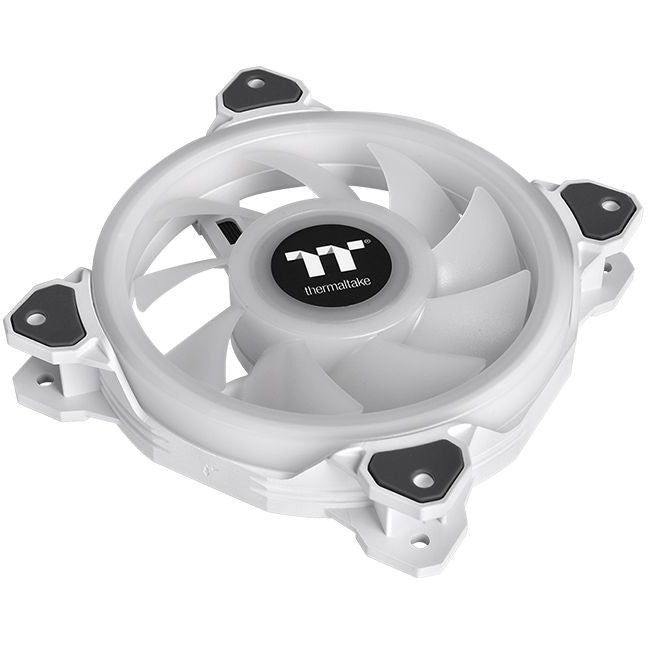

PWM Controlled Fan with 9-Fan Blade Design
Riing Quad’s PWM controlled fan is designed with 9 blades and is engineered to generate higher airflow without compromising on ultra-silent operation.

Extraordinary Cooling Performance
A specially designed fan blade allows even stronger flow, the Riing Quad fans ensure the cooling performance more efficient under intense operation.

Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

TT RGB PLUS Ecosystem

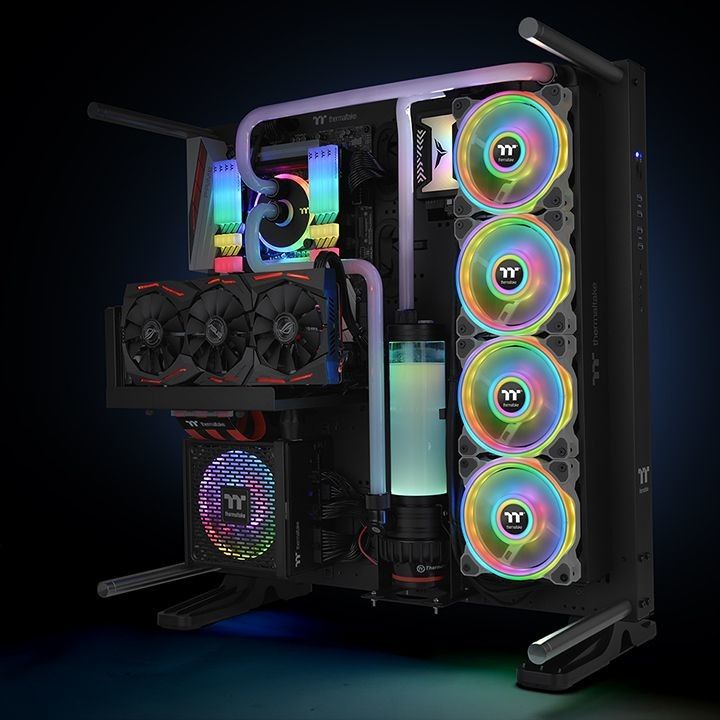

Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products (CPU/VGA water blocks, AIO CPU coolers, PSUs, LED strips, gaming keyboards, headsets, mice and mouse pads) to create a RGB ecosystem that is truly unique to you.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (min): 500 RPM
Rotational speed (max): 1500 RPM
Noise level (low speed): 19.8 dB
Noise level (high speed): 25.2 dB
Maximum airflow: 40.9 cfm
Maximum air pressure: 1.4 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Hydraulic
Design
Product colour: White
Number of fans: 3 fan(s)
Feature: Illumination LED
Number of LEDs: 54
Illumination colour: Multi
Power
Power consumption (typical): 3.24 W
Starting voltage: 9 V
Weight & dimensions
Weight: 189 g
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Other features
Bearing life (L10): 40000 h
Fan rated voltage: 5, 12 V
Country of origin: China
Logistics data
Harmonized System (HS) code: 84733080

Thermaltake Riing Quad 12 RGB. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 1500 RPM, Maximum air pressure: 1.4 mmH2O, Bearing type: Hydraulic. Product colour: White
Thermaltake




MBR CODE - CL-F100-PL12SW-A
EAN - 4713227523349
