Super Micro

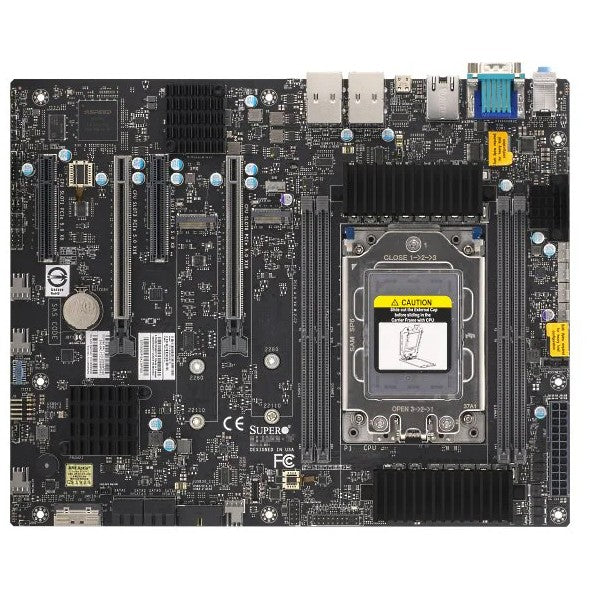

Supermicro MBD-H13SRA-F
Supermicro MBD-H13SRA-F
Couldn't load pickup availability
Processor
Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 1000 Series
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC
Supported memory clock speeds: 5200 MHz
Supported memory clock speed (max): 5200 MHz
Maximum internal memory: 4 TB
Supported memory module capacities: 16GB, 24GB, 32GB, 48GB, 64GB, 128GB, 256GB, 96GB, 1024GB, 512GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Feature: RAID support
RAID levels: 0, 1, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: CPU fan connector
Number of chassis fan connectors: 7
Feature: TPM connector
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Broadcom BCM5720
Features
Motherboard chipset: AMD TRX50
Audio chip: Realtek ALC888S
Audio output channels: 5.1 channels
Component for: Workstation
Motherboard form factor: ATX
Motherboard chipset family: AMD
Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
BIOS
BIOS type: AMI
BIOS memory size: 32 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.6
Operational conditions
Storage temperature (T-T): 0 - 50 °C
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 10 - 95%
Weight & dimensions
Width: 304.8 mm
Depth: 243.8 mm
Supermicro MBD-H13SRA-F. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper 1000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 4 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Broadcom BCM5720. Component for: Workstation, Motherboard form factor: ATX, Motherboard chipset family: AMD
Super Micro
MBR CODE - MBD-H13SRA-F-O
EAN - 0672042914906
