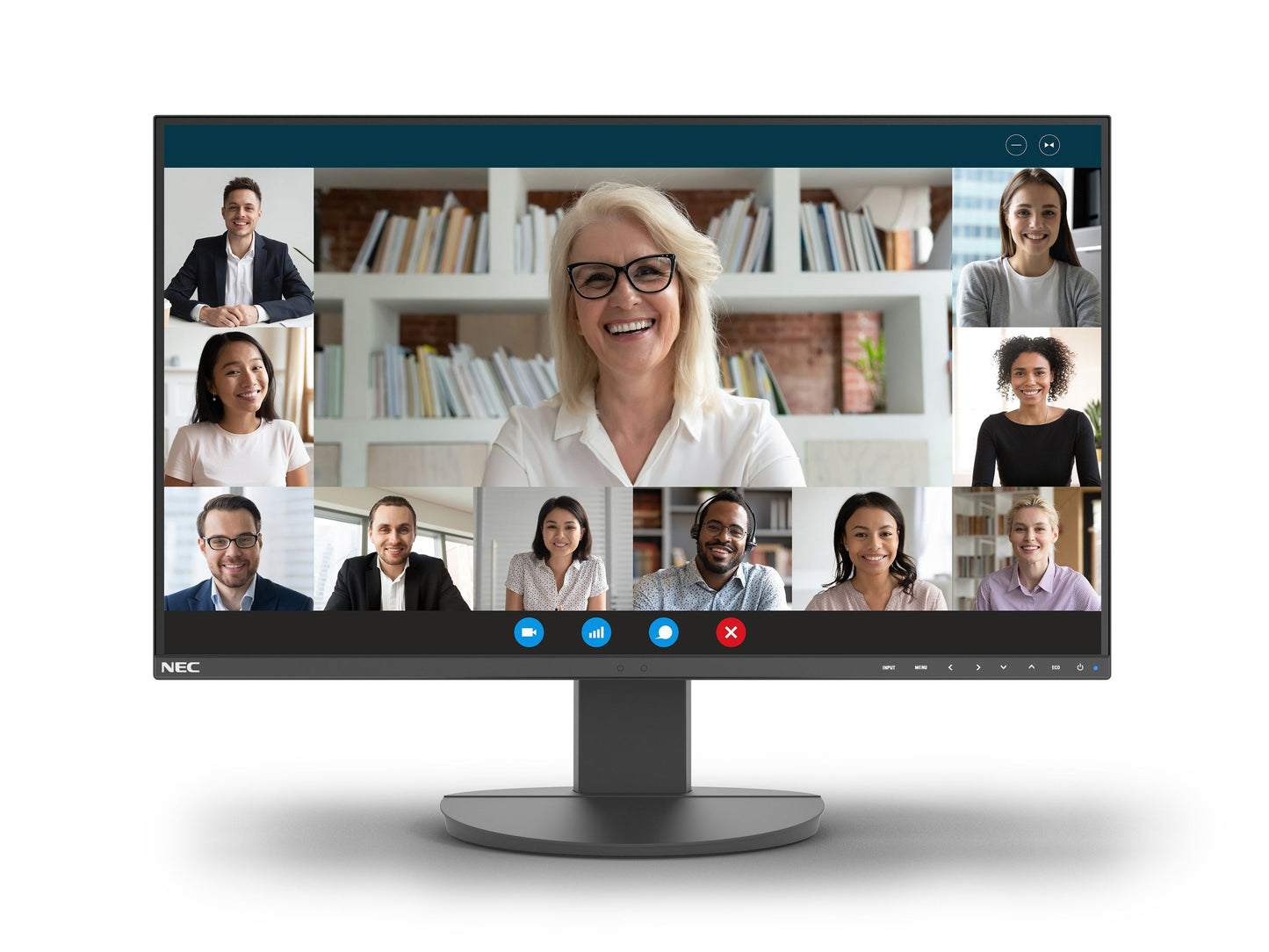

Powering workspace communications
Powering your PC/notebook and all your devices through a single cable, the MultiSync® EA272F is your workspace hub; no docking station required, the 65W USB-C connection means an efficient, clutter-free workstation from which to manage your communications. Easily increase your display area using DisplayPort-out to daisy-chain multiple displays, no additional cabling required.
User comfort is fundamental with full height adjustment, tilt, pivot and swivel supporting customised personal setup, whilst built-in low blue light technologies guard against eye fatigue without compromising true-to-life colour performance. Available in black or white, the 27” EA272F complements office interior design and ergonomics.
The connectivity advantage continues beyond USB Type-C with DisplayPort, HDMI, VGA and USB A for fully future-proof flexibility supporting new open office standards in hot desking and ‘bring your own device.’
Display
Display diagonal: 68.6 cm (27")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: AH-IPS
Backlight type: LED
Display brightness (typical): 250 cd/m²
Response time: 6 ms
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 5000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.311 x 0.311 mm
Digital horizontal frequency: 31.5 - 83 kHz
Digital vertical frequency: 55 - 75 Hz
Display diagonal (metric): 69 cm
Feature: DDC/CI
Performance
Feature: Flicker-free technology
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 2
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington

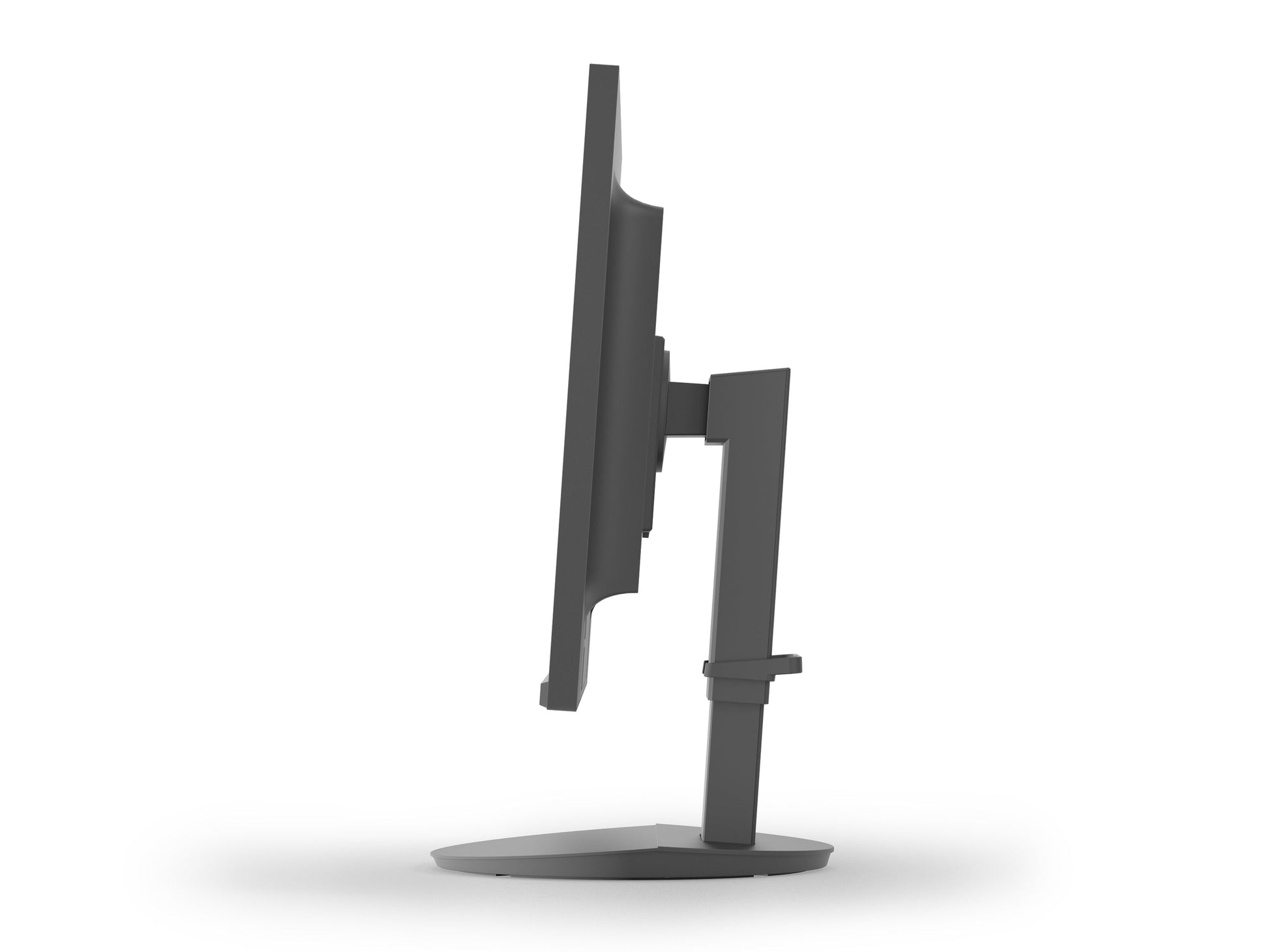

Feature: Height adjustment
Adjustable height (max): 15 cm
Feature: Swivelling
Swivel angle range: -170 - 170°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
Feature: Plug and Play
Power
Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 21 W
Power consumption (PowerSave): 3 W
AC input voltage: 100 - 240 V
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 404004
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 85%
Weight & dimensions
Width (with stand): 651.6 mm
Depth (with stand): 250 mm
Height (with stand): 359.8 mm
Weight (with stand): 9.2 kg
Bezel width (side): 0.8 mm
Bezel width (top): 0.8 mm
Bezel width (bottom): 1.58 cm
Packaging content
Cables included: AC, DisplayPort, USB
Sustainability
Sustainability certificates: ENERGY STAR, ErP, TCO
Other features
Energy efficiency class (old): A+
Compliance certificates: CE, RoHS
Logistics data
Harmonized System (HS) code: 85285210

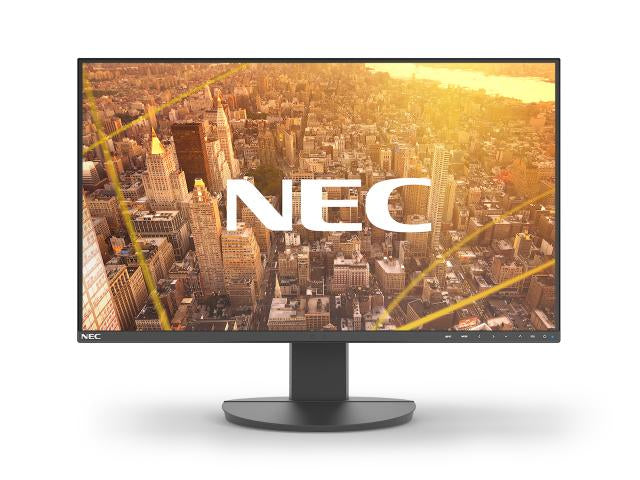

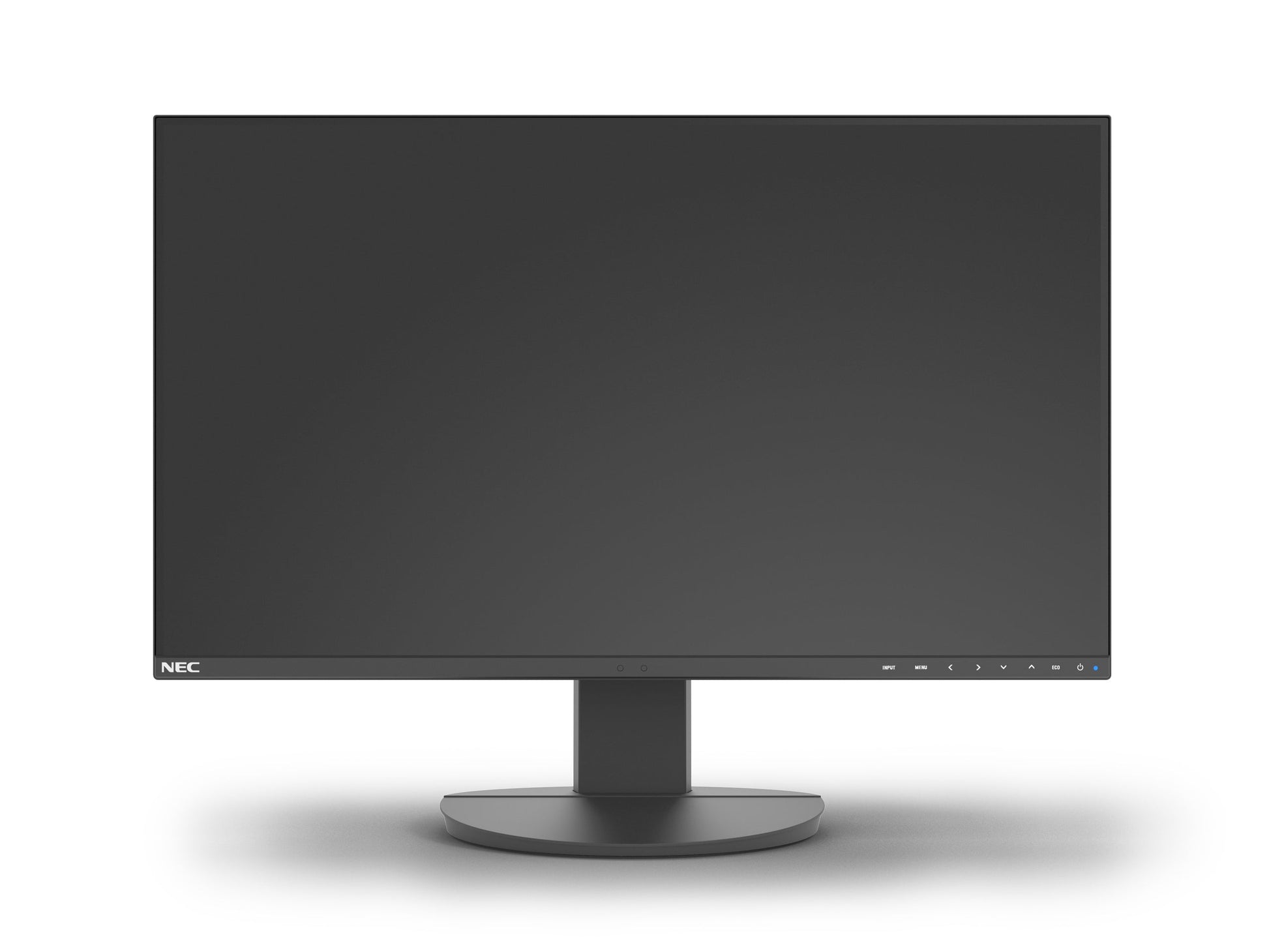

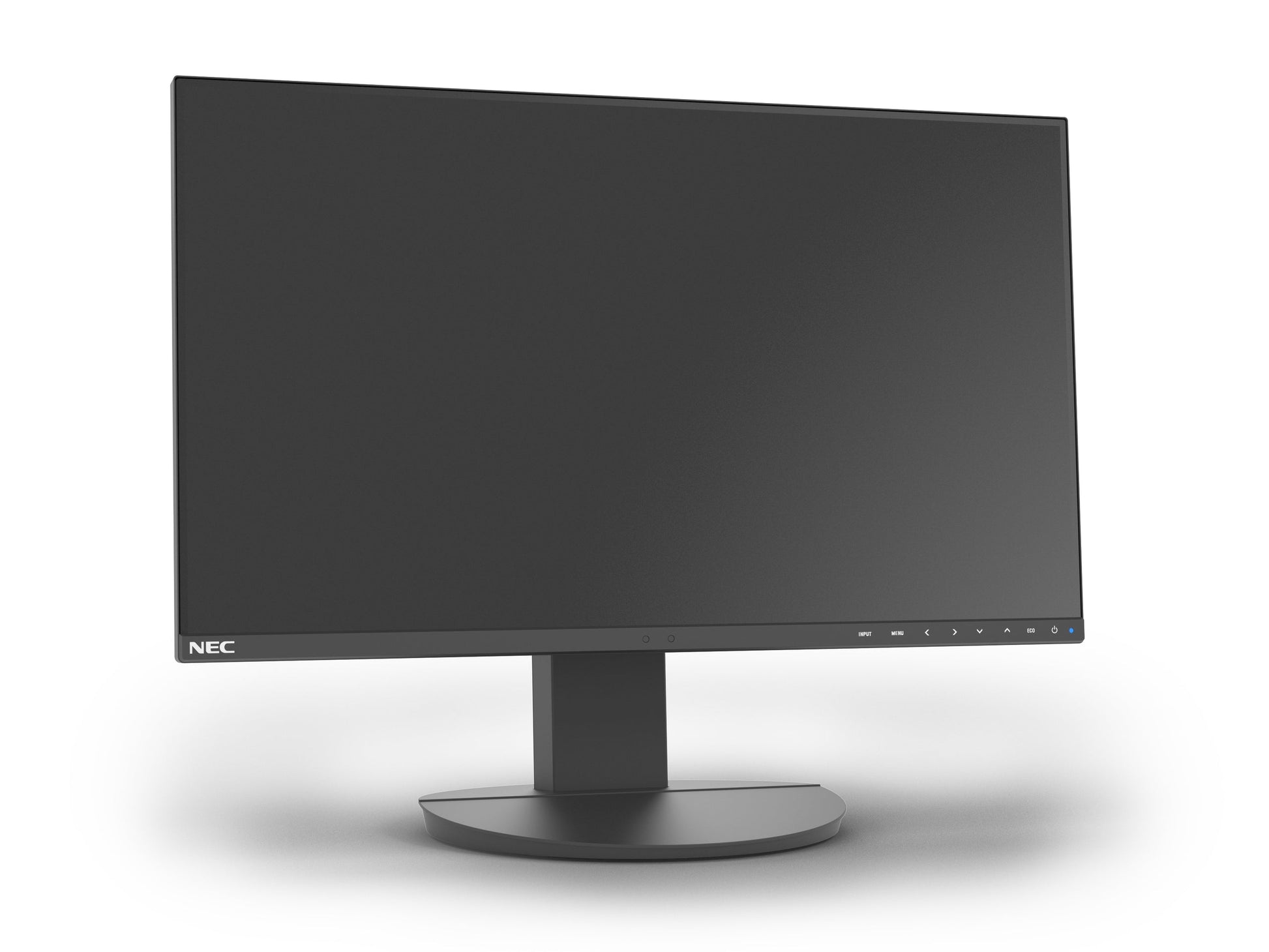

NEC MultiSync EA272F. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
SHARP NEC




MBR CODE - 60005033
EAN - 5028695120440
