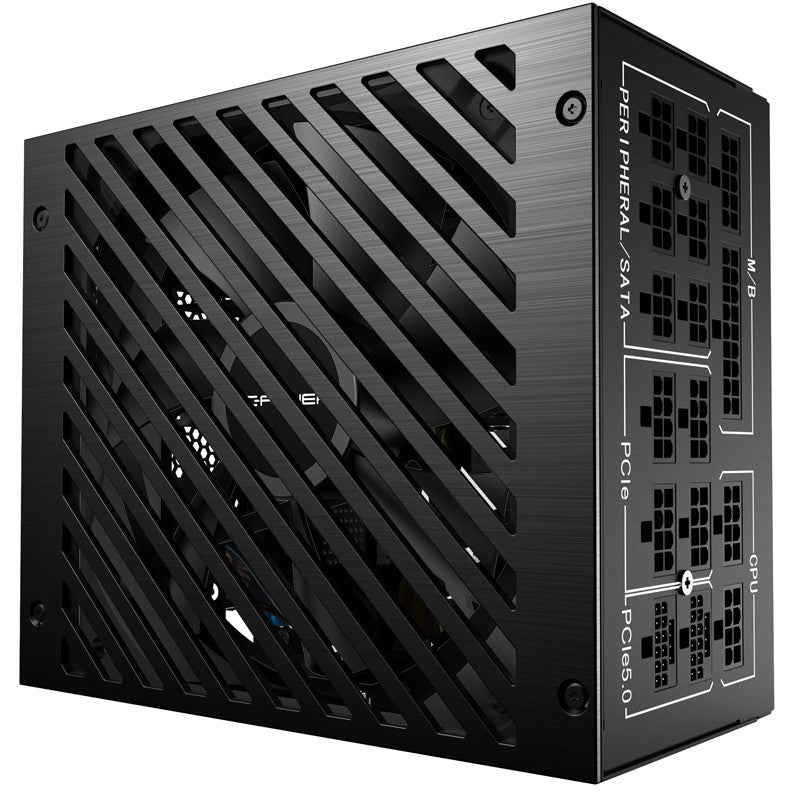

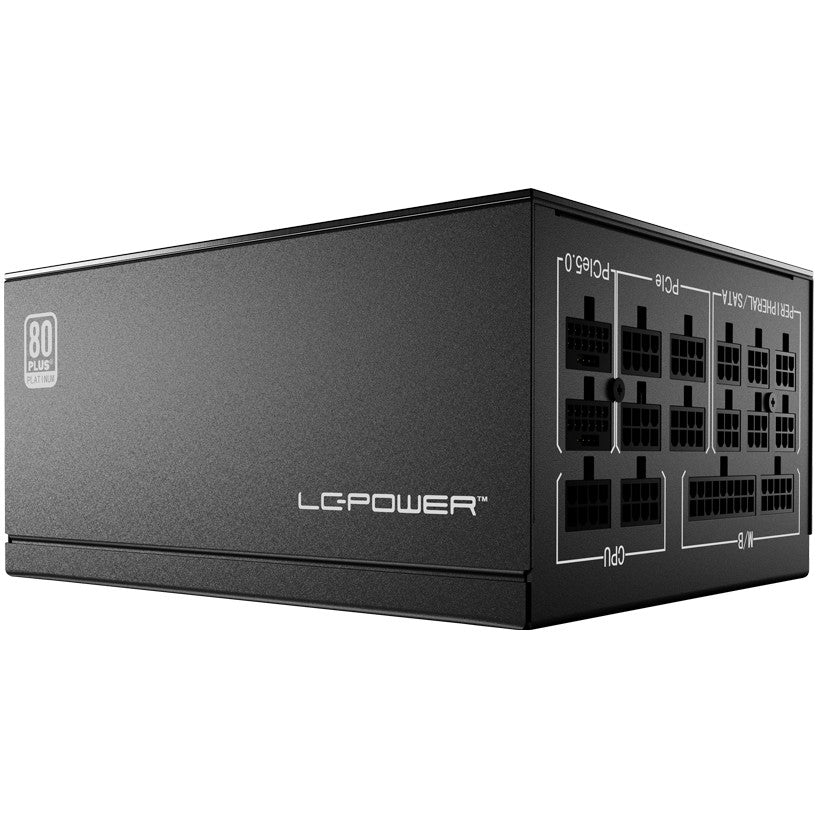

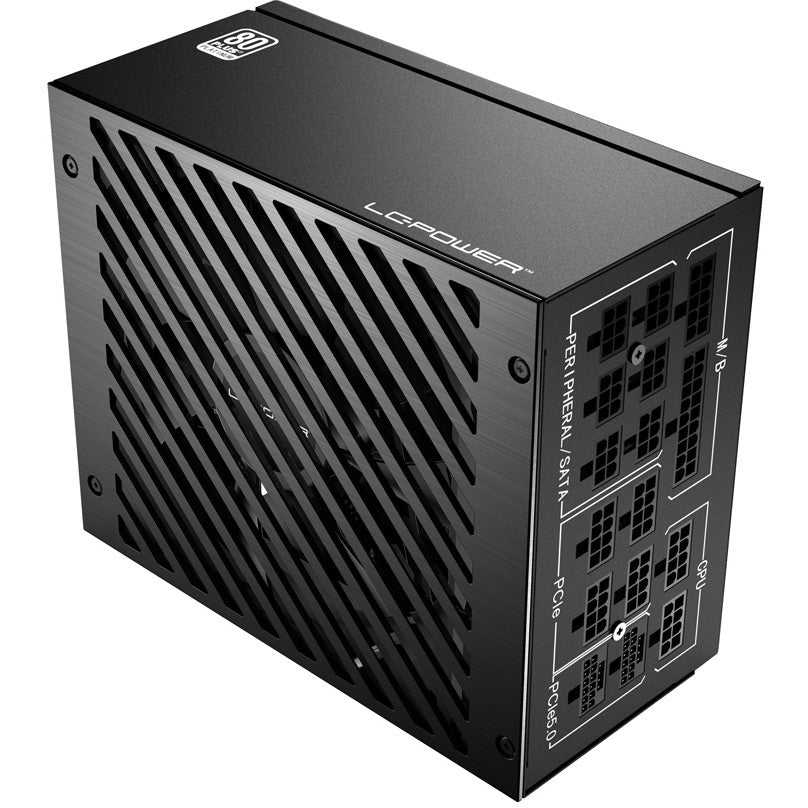

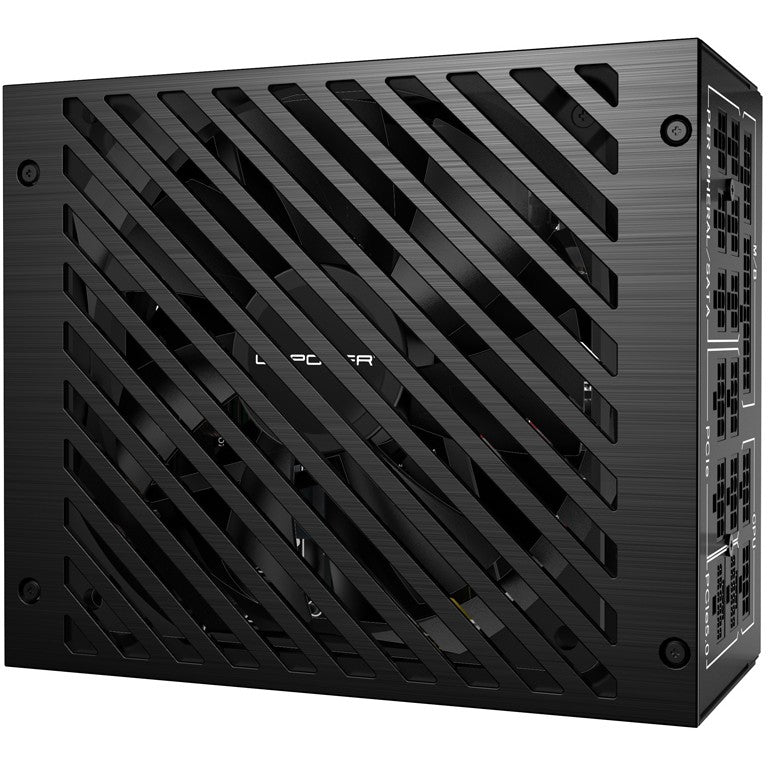

LC-Power LC1000P V3.0 power supply unit
LC-Power LC1000P V3.0 power supply unit
Couldn't load pickup availability
The LC1000P V3.0 is an 80 PLUS® PLATINUM certified, fully modular ATX power supply, which offers your system high stability and performance.
Power
Total power: 1000 W
AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 999.6 W
Combined power (+5V): 100 W
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.3 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 3 A
Efficiency: 92%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

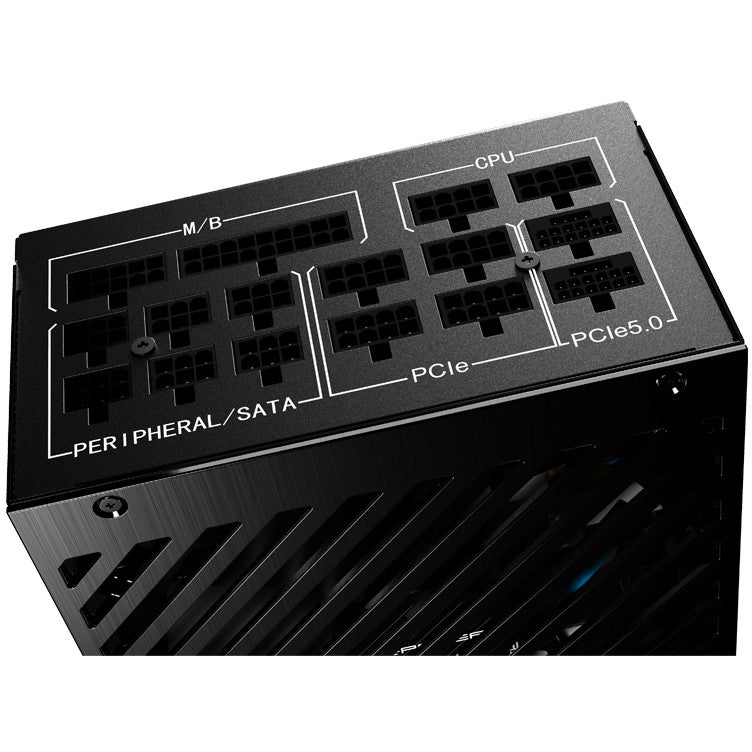

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 10
Number of PATA power connectors: 5
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 500,800 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: ATX power connector (20+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Packaging content
Cables included: PATA, PCIe, SATA
Certificates
Compliance certificates: CE, cTUVus
Weight & dimensions
Width: 86 mm
Depth: 180 mm
Height: 150 mm
Weight: 3.05 kg
Packaging data
Package width: 115 mm
Package depth: 310 mm
Package height: 225 mm
Package weight: 3.39 kg
Package type: Box
Technical details
Feature: Sustainability compliance
Logistics data
Warranty period: 3 year(s)
LC-Power LC1000P V3.0. Total power: 1000 W, AC input voltage: 110 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800,950 mm. Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: PATA, PCIe, SATA
LC-Power
MBR CODE - LC1000P V3.0 Platinum
EAN - 4260070120220
