When Lightning strikes


When Lightning strikes

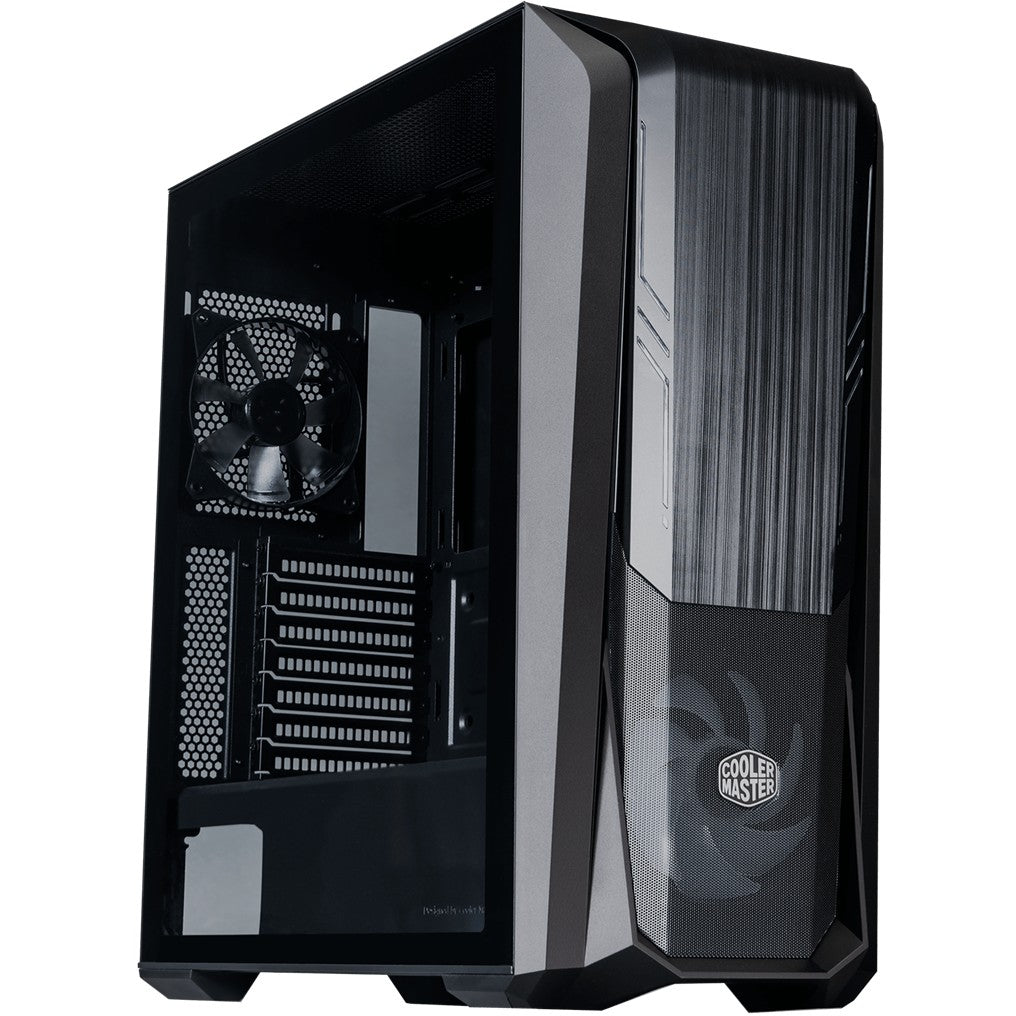

With top-notch gaming support and stealthy, futuristic design, MasterBox 500 really is the best of both worlds. The iconic MasterBox geometric facade features eye-catching, circuit inspired ARGB accents, easily customizable via a dedicated button on the I/O panel to display a stunning array of colors.

The chassis boasts upgraded cooling support, capable of housing a maximum of seven 120mm fans as well as dual 360mm radiators for both air and water cooling versatility. The top panel can be completely removed, allowing for greater access and ease during radiator or fan installations. The pre-installed fans provides powerful, silent cooling while giving users a head start on a fully illuminated build.

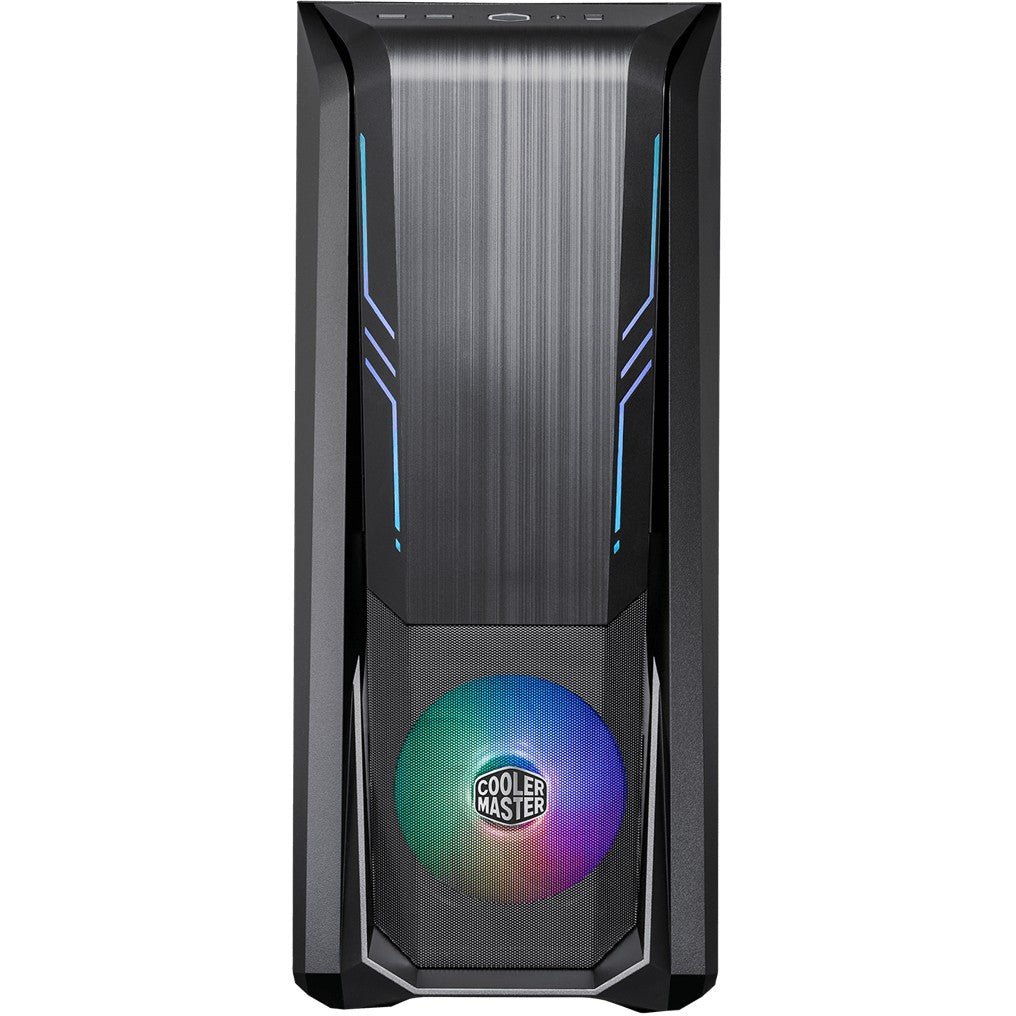

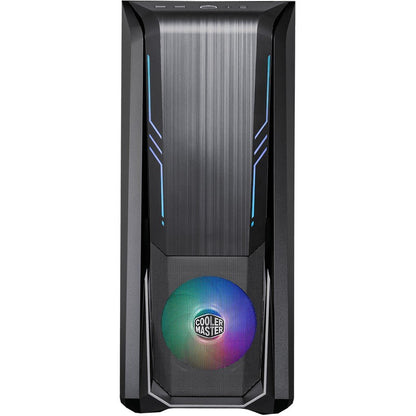

ARGB Front Panel
The iconic MasterBox geometric facade features minimalistic, circuit inspired ARGB strips, giving the chassis a stylish and futuristic profile. ARGB lighting can be effortlessly managed via a dedicated button on the I/O panel.

FineMesh Front Panel
Cooler Master’s FineMesh technology excels in providing maximum airflow, superior dust filtration, and amplifies the ARGB SickleFlow fans installed with a scattered glowing effect.

Removable Top Panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

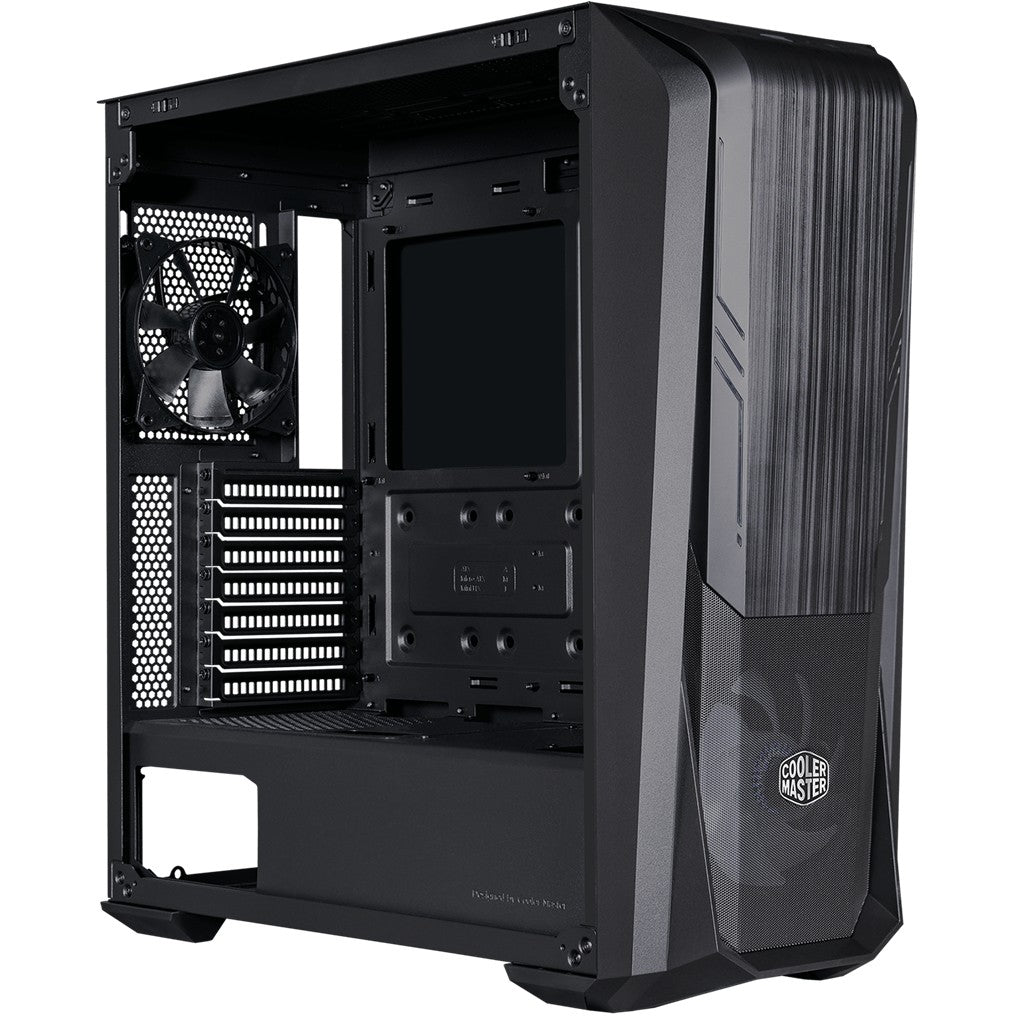

Screwless & Tool-Free Design TG Side Panel

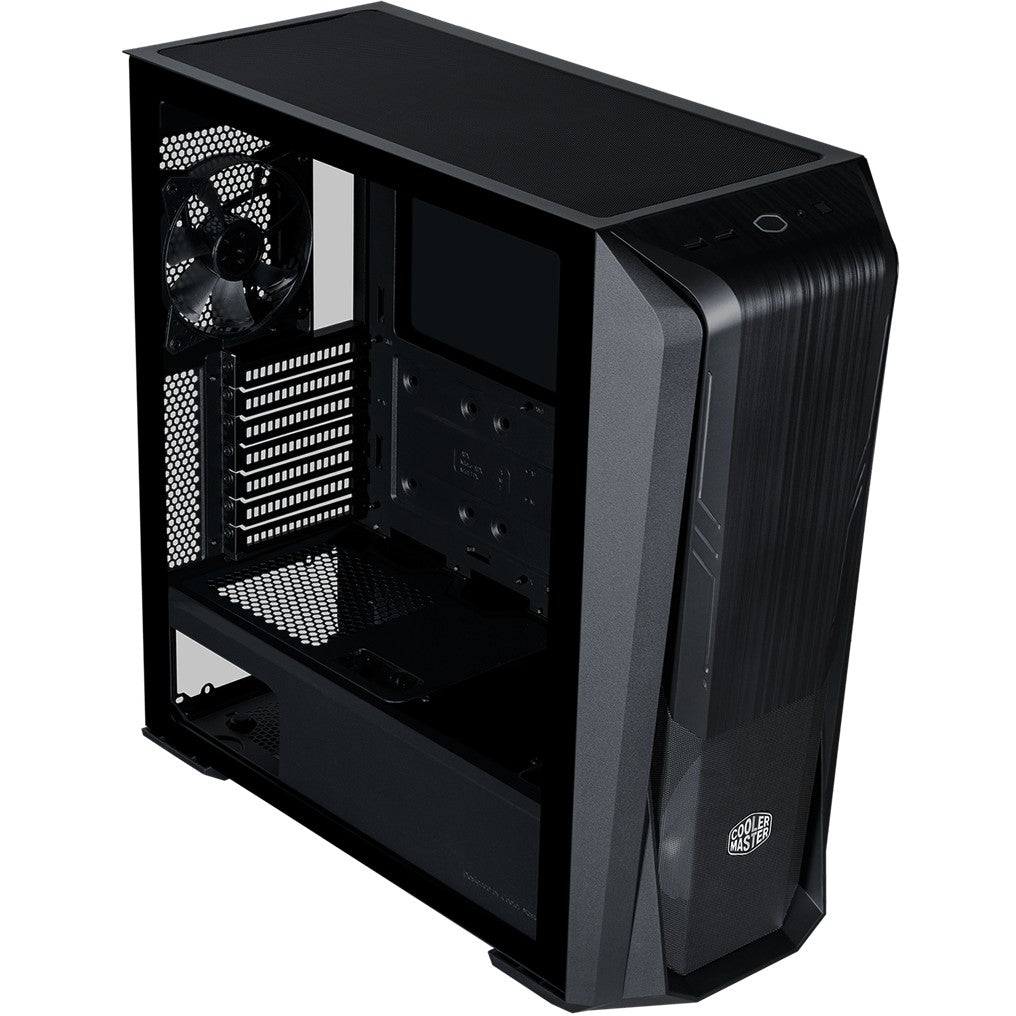

The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

Versatile Cooling Options
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Room For Upgrades
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.
Design
Material: Mesh, Plastic, Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black

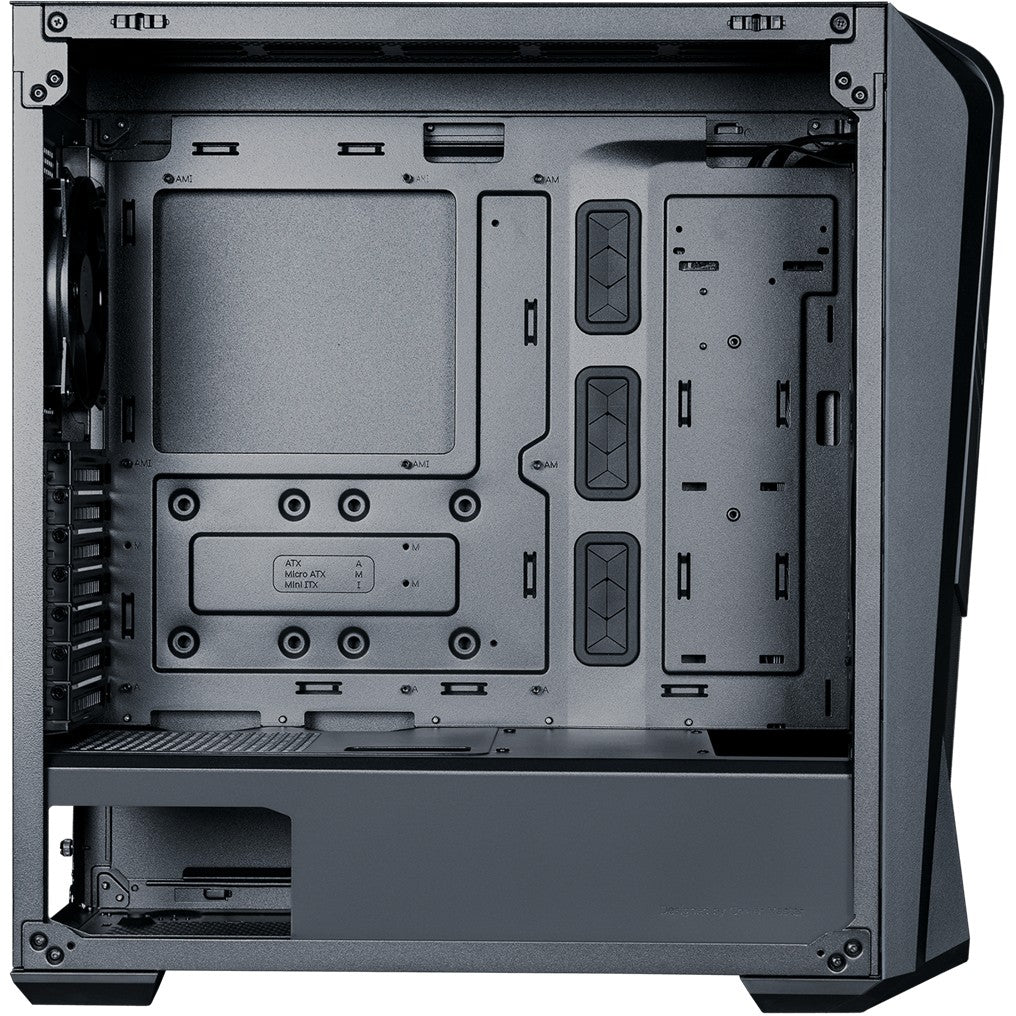

Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 6
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Feature: Anti-dust filter
Feature: Reset button
Feature: RGB control button
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 18 cm
Power supply
Supported power supply form factors: ATX
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 1x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240,280,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
Weight & dimensions
Width: 209 mm
Depth: 505 mm
Height: 499 mm
Weight: 7.7 kg
Packaging data
Feature: LED controller
Package width: 290 mm
Package depth: 558 mm
Package height: 584 mm
Package weight: 9.03 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Volume: 51 L

Cooler Master MasterBox 500. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans installed: 1x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 209 mm, Depth: 505 mm, Height: 499 mm
Cooler Master




MBR CODE - MB500-KGNN-S00
EAN - 4719512123348
