LC-Power LC6650 V2.3 power supply unit
LC-Power LC6650 V2.3 power supply unit
No se pudo cargar la disponibilidad de retiro

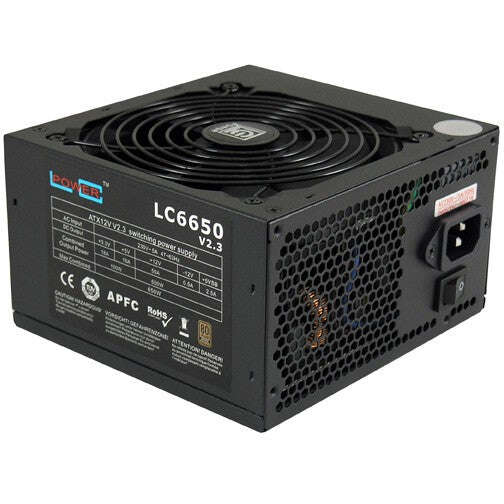

The legendary SUPER SILENT SERIES by LC-POWER offers the optimum price-performance ratio: thanks to its high-value 120mm fan, the LC6650 V2.3 lets you experience a stress-free and super-silent work in your office as well as at home. Despite the low sound level, the power supply offers an excellent cooling capacity for your system thanks to its honeycomb styled ventilation grille on its back.
The power supply features all current connectors of the office and mid-range sector. Besides current mainboards you can connect several SATA and PATA hard disk drives respectively optical drives. A graphic card can be added due to the PCI-Express V2.0 connector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (<0,5W) and increases the efficiency of the power supply to >88%!
Power
Total power: 650 W
AC input voltage: 230 V
AC input frequency: 47 - 63 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 600 W
Combined power (+5V): 100 W
Max output current (+3.3V): 18 A
Max output current (+12V): 50 A
Max output current (+5V): 18 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 88%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 5
Number of PATA power connectors: 3
SATA power cable length: 550,650,750 mm
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
CPU power cable length: 45 cm
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Floppy disk drive cable length: 55 cm
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Certificates
Compliance certificates: RoHS
Certification: CE, TÜV
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 2.08 kg
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
LC-Power LC6650 V2.3. Total power: 650 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,650,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: CE, TÜV
LC-Power
MBR CODE - LC6650 V2.3
EAN - 4260070125638
