Gigabyte

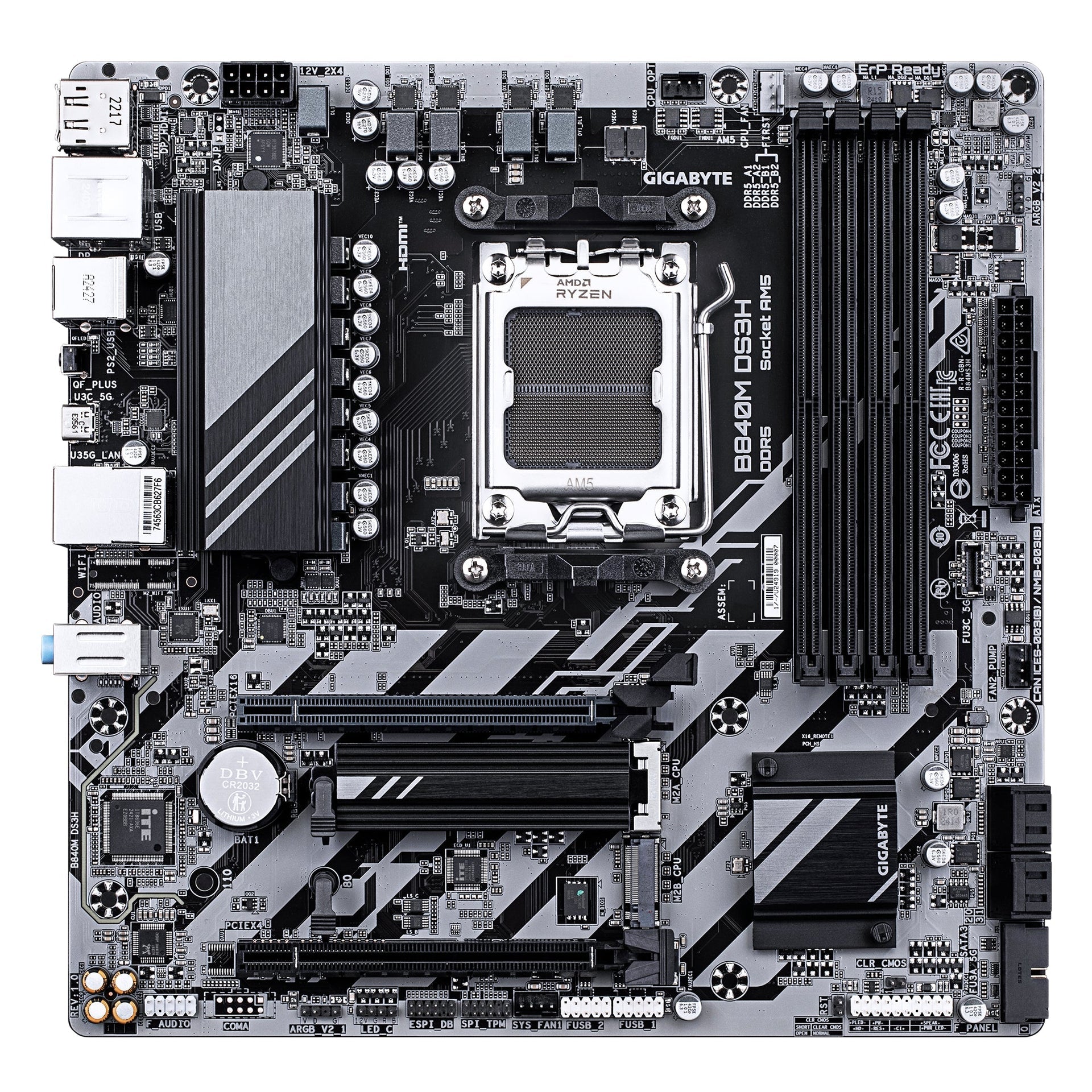

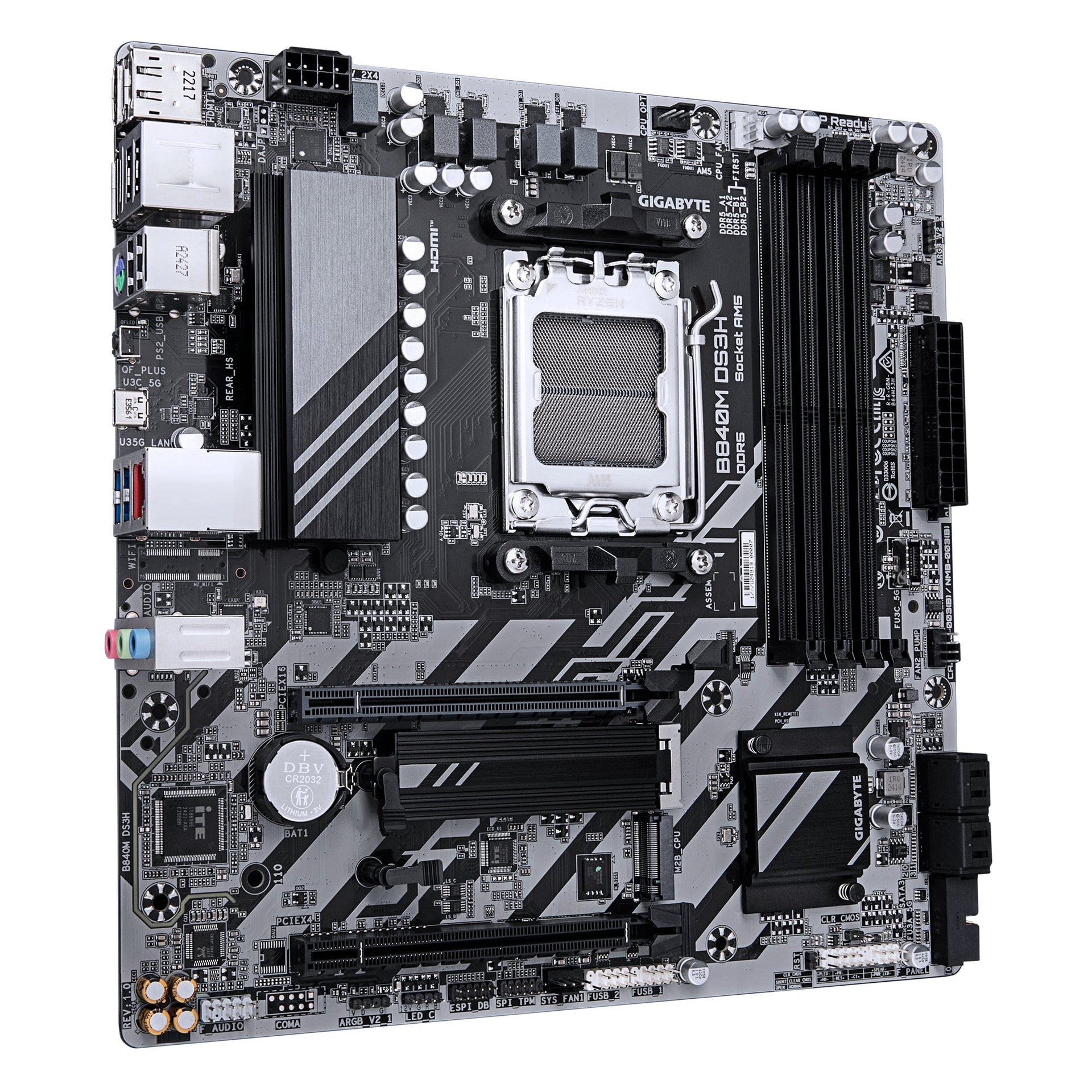

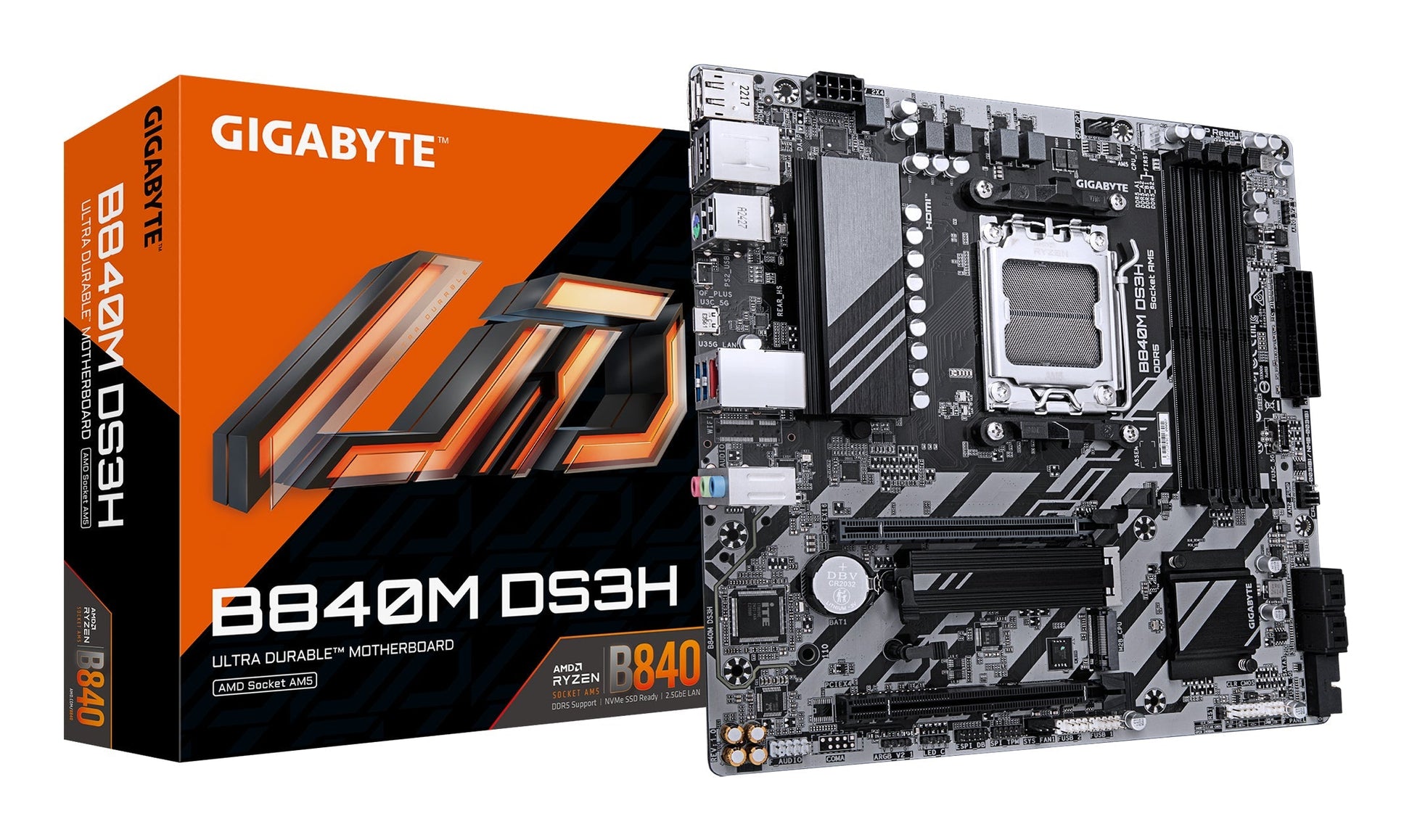

Placa base GIGABYTE B840M DS3H
Placa base GIGABYTE B840M DS3H
No se pudo cargar la disponibilidad de retiro
| Fabricante del procesador | AMD |
| Zócalo del procesador | Zócalo AM5 |
| Serie de procesadores compatibles | Serie AMD Ryzen 7000, Serie AMD Ryzen 8000, Serie AMD Ryzen 9000 |
| Zócalos de procesador compatibles | Zócalo AM5 |
| Tipos de memoria admitidos | DDR5-SDRAM |
| Número de ranuras de memoria | 4 |
| Tipo de ranuras de memoria | DIMM |
| Canales de memoria | Doble canal |
| Compatibilidad ECC | No ECC |
| Velocidades de reloj de memoria admitidas | 8200, 8000, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz |
| Velocidad de reloj de memoria admitida (máx.) | 8200 MHz |
| Memoria interna máxima | 256 GB |
| Memoria sin búfer | Sí |
| Memoria interna máxima por ranura | 64 GB |
| Tipos de unidades de almacenamiento compatibles | HDD y SSD |
| Interfaces de unidad de almacenamiento compatibles | M.2, PCI Express 4.0, SATA III |
| Número de discos duros compatibles | 4 |
| Número de unidades de almacenamiento admitidas | 6 |
| Compatibilidad con RAID | Sí |
| niveles RAID | 0, 1, 10 |
| Soporte de tecnología de procesamiento paralelo | No compatible |
| Resolución máxima | 4096 x 2160 píxeles |
| HDCP | Sí |
| Versión de DirectX | 12.0 |
| Conectores USB 2.0 | 2 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Número de conectores SATA III | 4 |
| Conector de audio del panel frontal | Sí |
| Conector del panel frontal | Sí |
| Conector de alimentación ATX (24 pines) | Sí |
| Conector del ventilador de la CPU | Sí |
| Número de conectores de ventilador de CPU | 2 |
| Número de conectores del ventilador del chasis | 2 |
| Conector de alimentación EPS (8 pines) | Sí |
| Número de conectores de alimentación EPS (8 pines) | 1 |
| Conector TPM | Sí |
| Número de conectores de la bomba de agua | 2 |
| Conector de pines LED RGB | Sí |
| Número de conectores de pines de LED RGB | 3 |

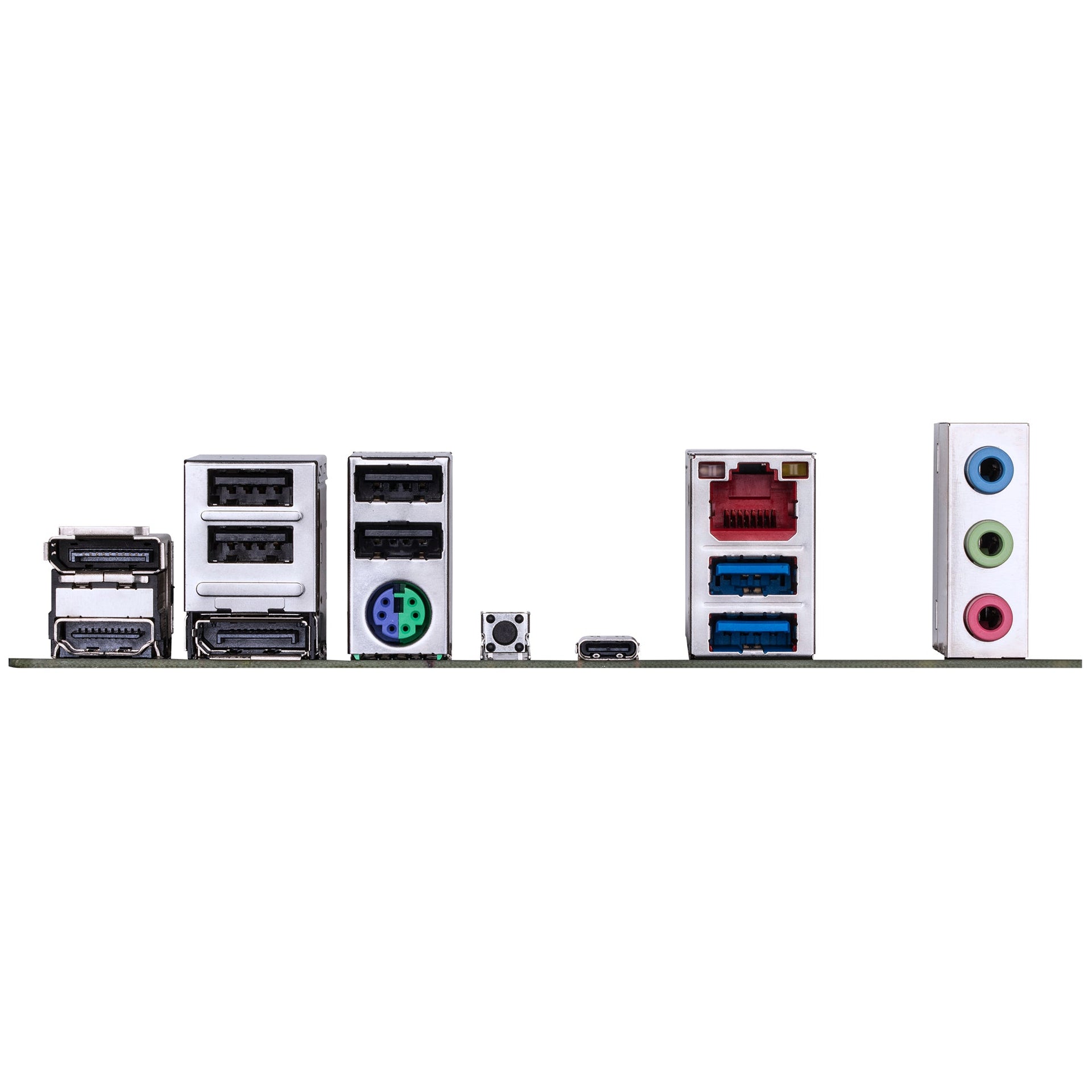

| Cantidad de puertos USB 2.0 | 4 |
| Cantidad de puertos USB 3.2 Gen 1 (3.1 Gen 1) Tipo A | 2 |
| Cantidad de puertos USB 3.2 Gen 1 (3.1 Gen 1) Tipo-C | 1 |
| Puertos LAN Ethernet (RJ-45) | 1 |
| Cantidad de puertos PS/2 | 1 |
| Cantidad de puertos HDMI | 1 |
| Versión HDMI | 2.1 |
| Cantidad de DisplayPorts | 2 |
| Versión DisplayPort | 1.4 |
| Salidas de auriculares | 1 |
| Entrada de línea | Sí |
| Entrada de micrófono | Sí |
| Red local Ethernet | Sí |
| Tipo de interfaz Ethernet | Ethernet de 2,5 gigabits |
| Controlador LAN | Realtek RTL8125 |
| Wi-Fi | No |
| Chipset de la placa base | AMD B840 |
| Chip de audio | Realtek ALC897 |
| Canales de salida de audio | 7.1 canales |
| Color del producto | Marrón oscuro |
| Monitoreo de la salud de la PC | Ventilador, temperatura, voltaje, refrigeración por agua |
| Componente para | ordenador personal |
| Factor de forma de la placa base | micro ATX |
| Familia de chipsets de placa base | AMD |
| Tipo de enfriamiento | Pasivo |
| Tipo de fuente de alimentación | ATX |
| Sistemas operativos Windows compatibles | Windows 10 x64, Windows 11 x64 |
| Ranuras PCI Express x16 (Gen 3.x) | 1 |
| Ranuras PCI Express x16 (Gen 4.x) | 1 |
| Número de ranuras M.2 (M) | 2 |
| 1.er tamaño de clave M.2 más grande | 2580 |
| 1.ª generación M.2 PCI Express más alta | 4.0 |
| 2.º tamaño de clave más grande de M.2 | 25110 |
| 2.ª generación M.2 PCI Express más alta | 4.0 |
| Tipo de BIOS | UEFI AMI |
| Tamaño de la memoria del BIOS | 256 Mbit |
| Versión ACPI | 5.0 |
| Borrar el puente CMOS | Sí |
| Versión de la interfaz de administración de escritorio (DMI) | 2.7 |
| Versión del BIOS de administración del sistema (SMBIOS) | 2.7 |
| Productos por caja de envío (interior) | 1 pieza(s) |
| Peso de la batería | 3 gramos |
| Peso de litio por batería | 0,07 gramos |
| Número de celdas de la batería | 1 |
| Tecnología de baterías | Dióxido de litio y manganeso (LiMnO2) |
| Tipo de batería | CR2032 |
| Ancho del paquete | 265 milímetros |
| Profundidad del paquete | 265 milímetros |
| Altura del paquete | 54 milímetros |
| Peso del paquete | 1,13 kilogramos |
| Ancho | 244 milímetros |
| Profundidad | 244 milímetros |
| Altura | 35 milímetros |
| Pilas incluidas | Sí |
| Tornillos incluidos | Sí |
| Software incluido | Norton® Internet Security (versión OEM) Software de gestión del ancho de banda de LAN |
| Peso | 1,05 kilogramos |
| Período de garantía | 3 año(s) |
