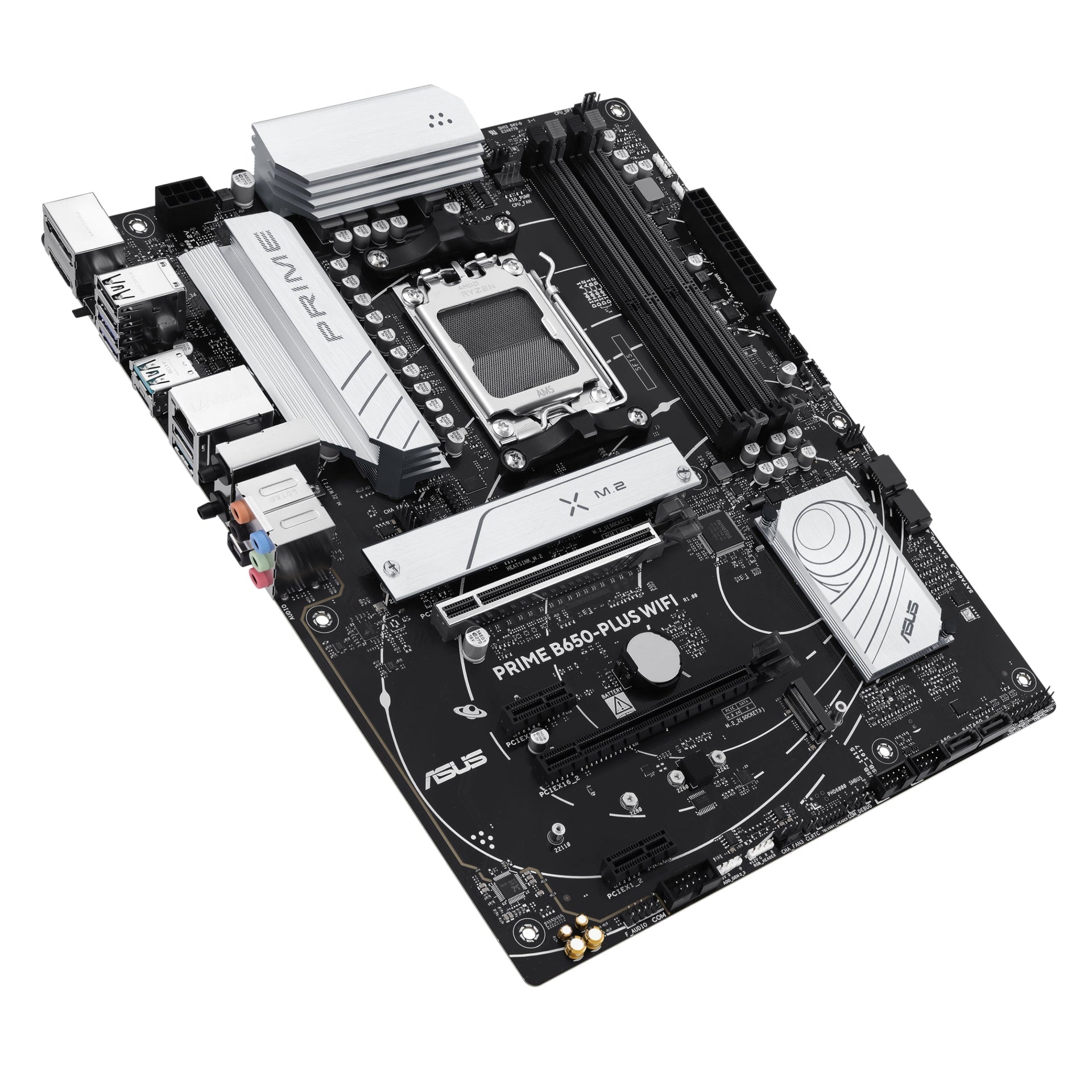

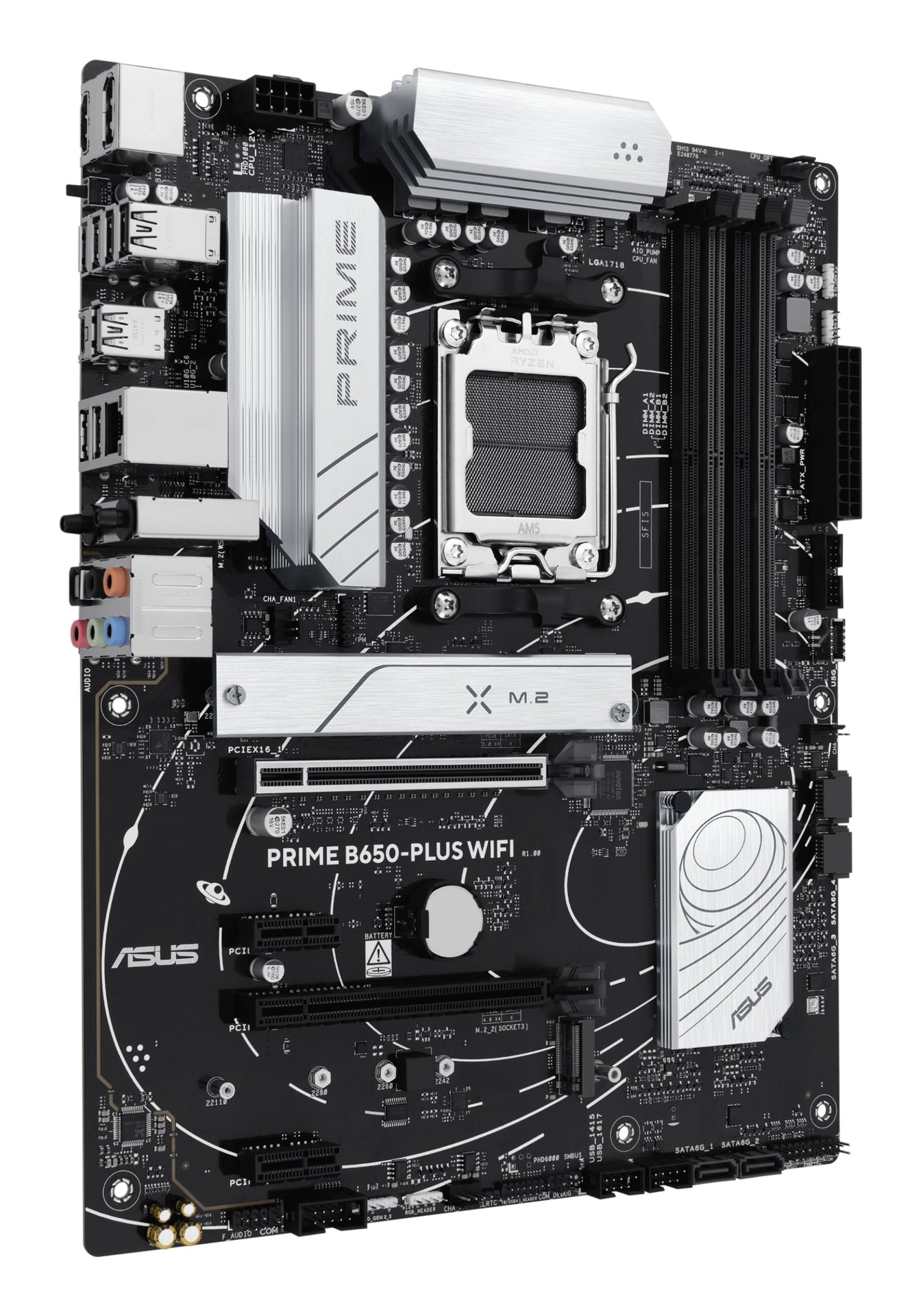

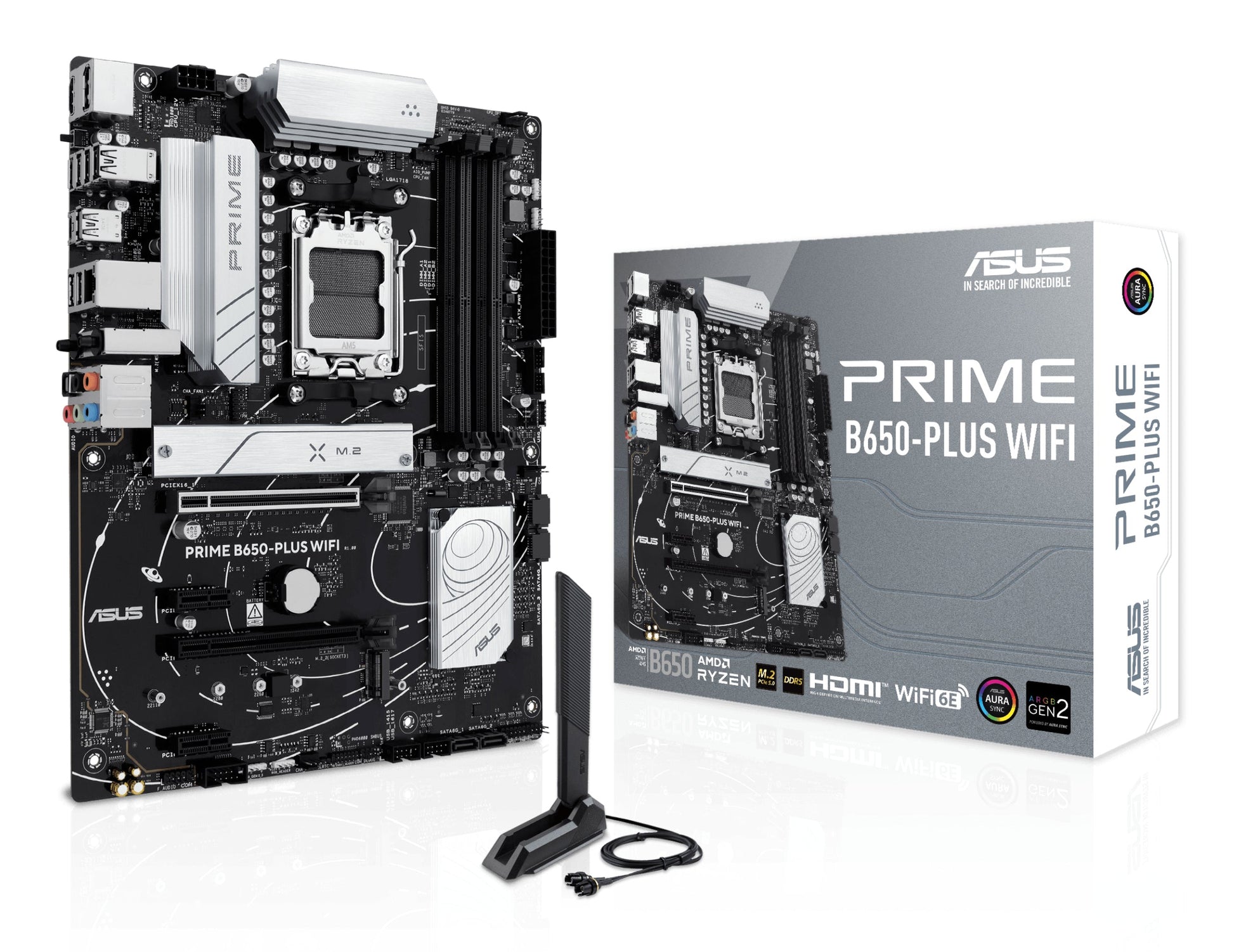

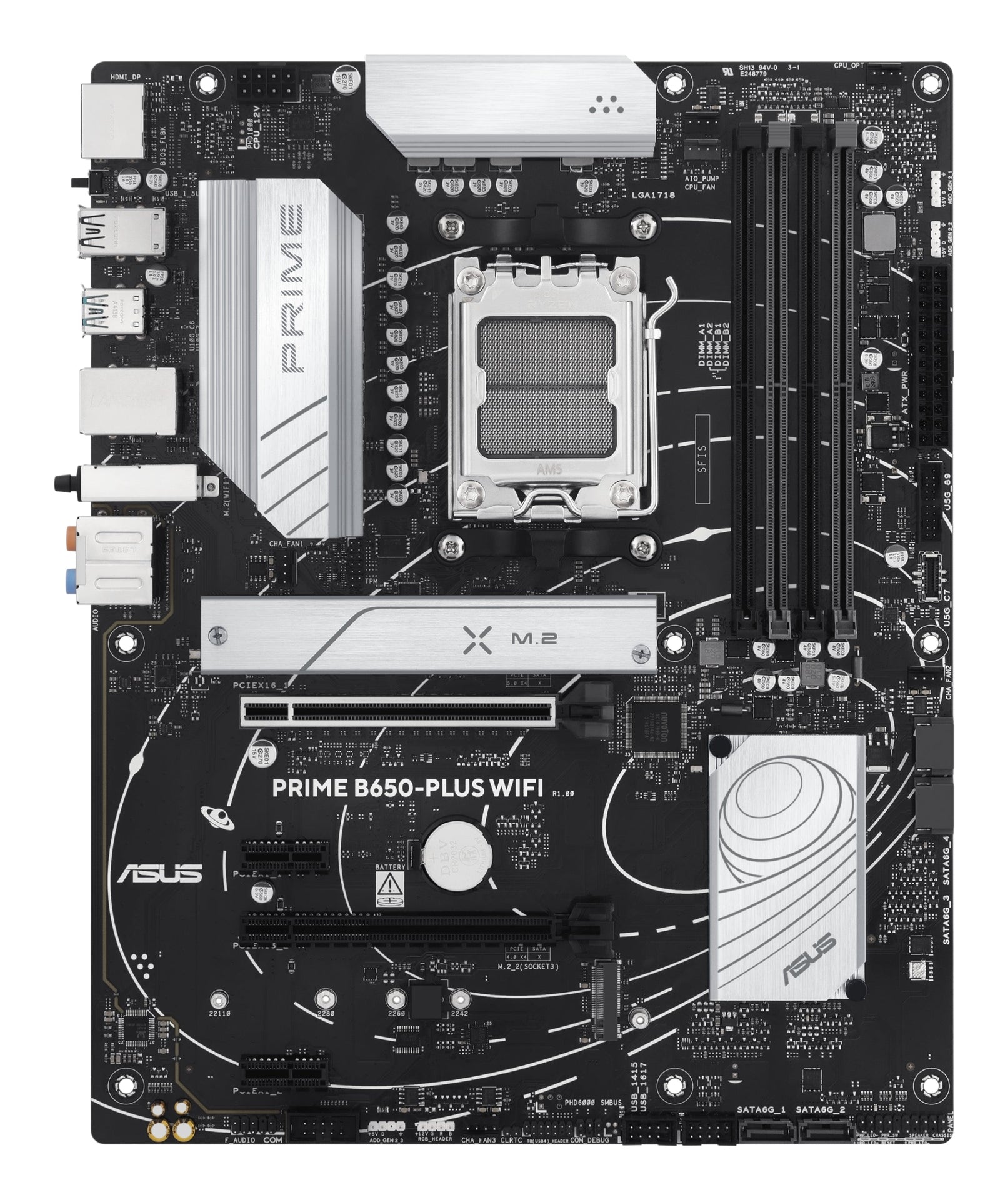

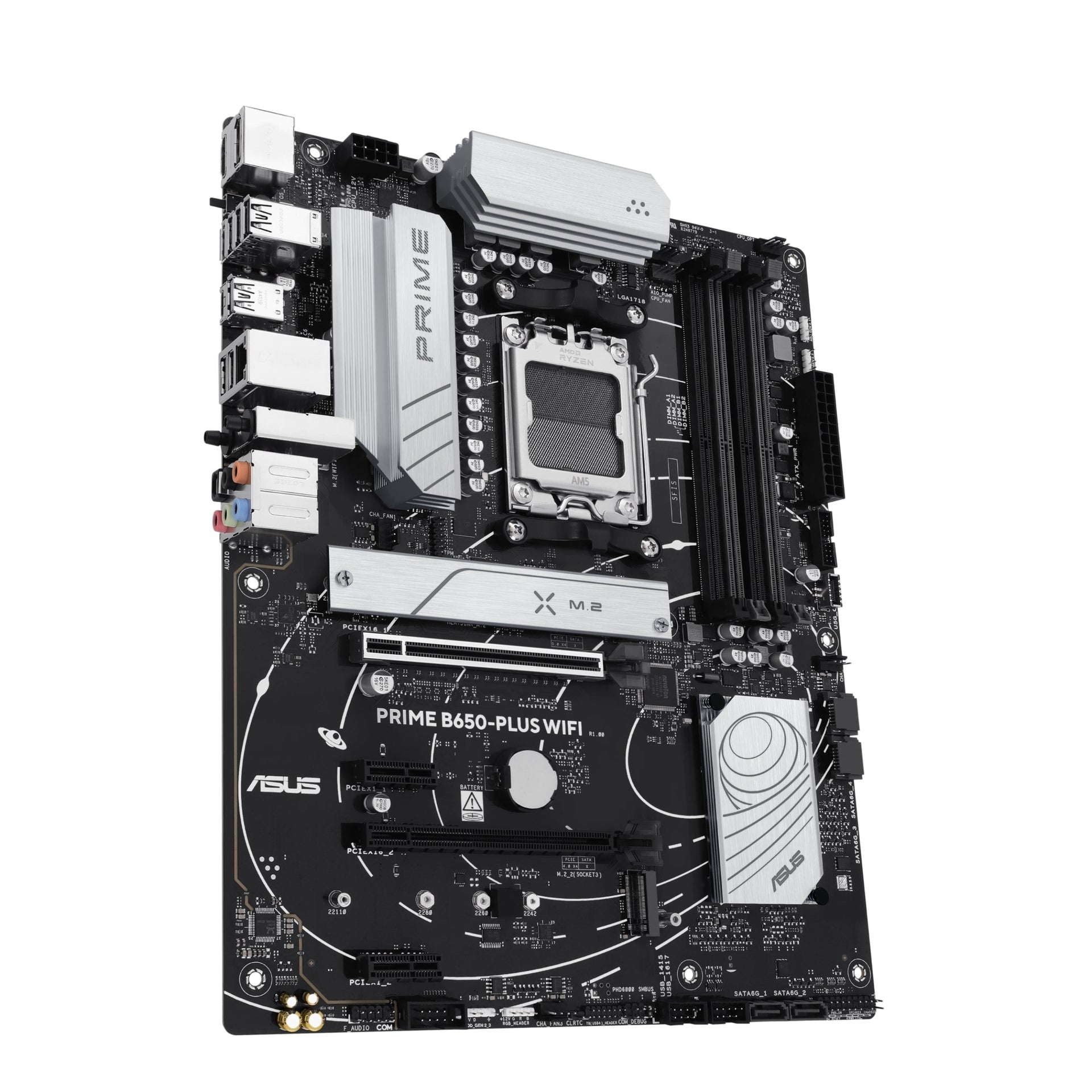

ASUS PRIME B650-PLUS WIFI
ASUS PRIME B650-PLUS WIFI
No se pudo cargar la disponibilidad de retiro
Las placas base ASUS Prime están diseñadas por expertos para aprovechar al máximo el potencial de los procesadores AMD Ryzen de las series 9000, 8000 y 7000. Con un diseño de alimentación robusto, soluciones de refrigeración integrales y opciones de ajuste inteligentes, PRIME B650-PLUS WIFI ofrece a usuarios y ensambladores de PC DIY diversas optimizaciones de rendimiento mediante funciones intuitivas de software y firmware. Esta plataforma ofrece la potencia y la conectividad que exigen las aplicaciones avanzadas de IA para PC.
| Fabricante del procesador | AMD |
| Zócalo del procesador | Zócalo AM5 |
| Serie de procesadores compatibles | Serie AMD Ryzen 7000, Serie AMD Ryzen 8000, Serie AMD Ryzen 9000 |
| Zócalos de procesador compatibles | Zócalo AM5 |
| Tipos de memoria admitidos | DDR5-SDRAM |
| Número de ranuras de memoria | 4 |
| Tipo de ranuras de memoria | DIMM |
| Canales de memoria | Doble canal |
| Compatibilidad ECC | ECC y no ECC |
| Velocidades de reloj de memoria admitidas | 7400, 4800, 7600, 7800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Velocidad de reloj de memoria admitida (máx.) | 7600 MHz |
| Memoria interna máxima | 192 GB |
| Memoria sin búfer | Sí |
| Tipos de unidades de almacenamiento compatibles | HDD y SSD |
| Interfaces de unidad de almacenamiento compatibles | M.2, SATA III |
| Número de discos duros compatibles | 4 |
| Número de unidades de almacenamiento admitidas | 6 |
| Compatibilidad con RAID | Sí |
| niveles RAID | 0, 1, 10 |
| Soporte de tecnología de procesamiento paralelo | No compatible |
| Conectores USB 2.0 | 2 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Número de conectores SATA III | 4 |
| Conector de audio del panel frontal | Sí |
| Conector del panel frontal | Sí |
| Conector de alimentación ATX (24 pines) | Sí |
| Conector del ventilador de la CPU | Sí |
| Número de conectores de ventilador de CPU | 2 |
| Número de conectores del ventilador del chasis | 3 |
| Conector de alimentación EPS (8 pines) | Sí |
| Número de conectores COM | 1 |
| Conector TPM | Sí |
| Conectores Thunderbolt | 1 |
| Conector de alimentación de 12 V | Sí |
| Conector de pines LED RGB | Sí |
| Número de conectores de pines de LED RGB | 1 |

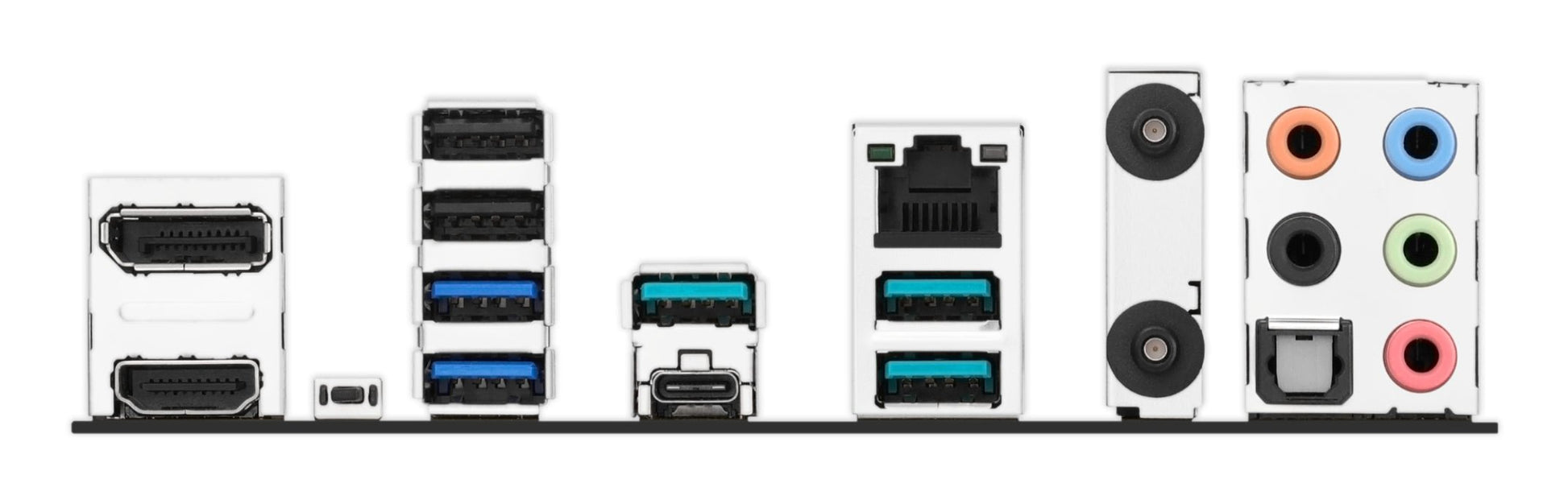

| Cantidad de puertos USB 2.0 | 2 |
| Cantidad de puertos USB 3.2 Gen 1 (3.1 Gen 1) Tipo A | 2 |
| Cantidad de puertos USB 3.2 Gen 2 (3.1 Gen 2) Tipo A | 3 |
| Cantidad de puertos USB 3.2 Gen 2 (3.1 Gen 2) Tipo-C | 1 |
| Puertos LAN Ethernet (RJ-45) | 1 |
| Cantidad de puertos HDMI | 1 |
| Cantidad de DisplayPorts | 1 |
| Puerto de salida S/PDIF | Sí |

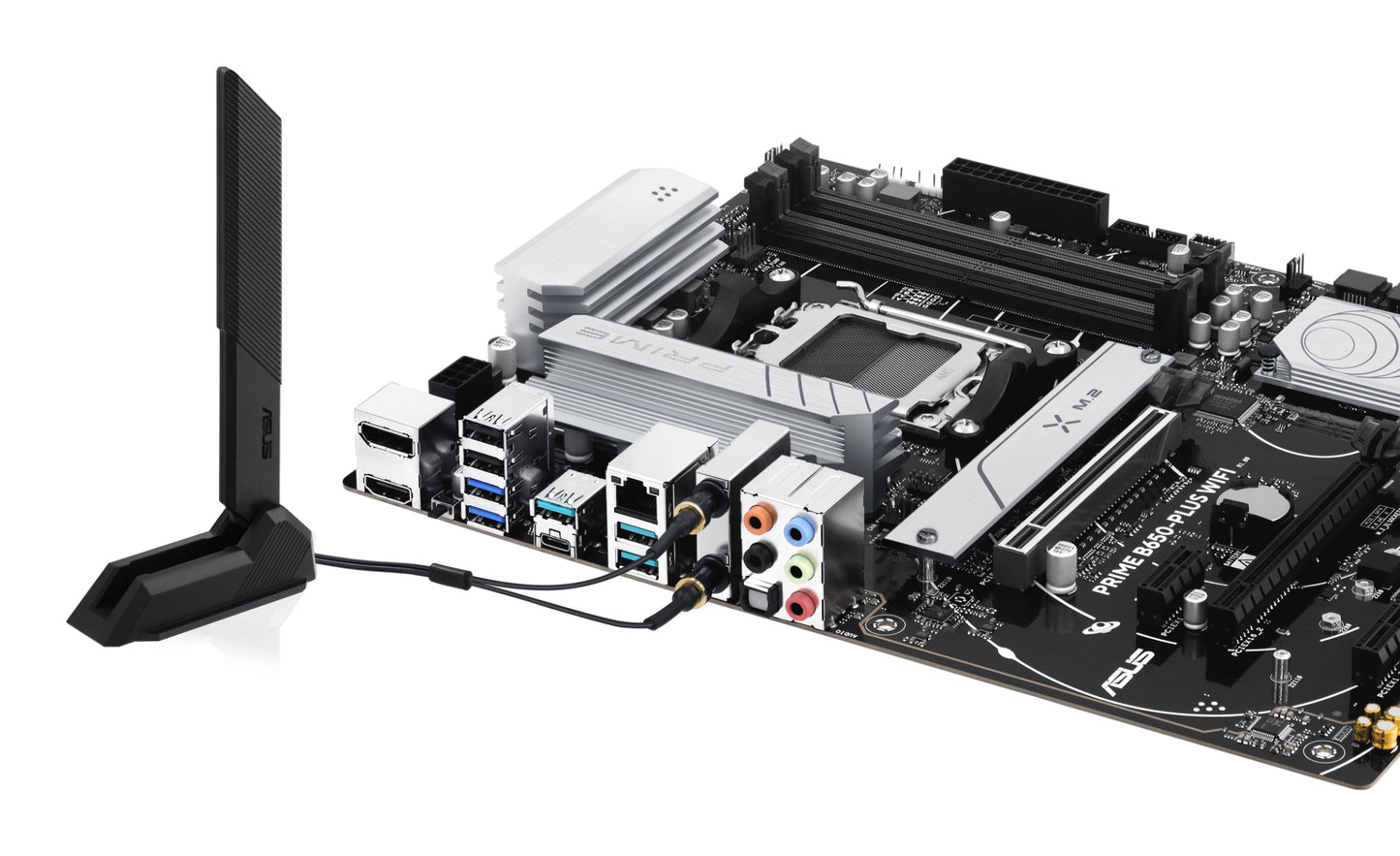

| Conector de antena WiFi-AP | 1 |
| Red local Ethernet | Sí |
| Tipo de interfaz Ethernet | Ethernet de 2,5 gigabits |
| Wi-Fi | Sí |
| Estándar superior de Wi-Fi | Wi-Fi 6E (802.11ax) |
| Estándares de Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | Sí |
| Versión de Bluetooth | 5.3 |
| Chipset de la placa base | AMD B650 |
| Canales de salida de audio | 7.1 canales |
| Componente para | ordenador personal |
| Factor de forma de la placa base | ATX |
| Familia de chipsets de placa base | AMD |
| Sistemas operativos Windows compatibles | Windows 10 x64, Windows 11 |
| Ranuras PCI Express x1 (Gen 4.x) | 2 |
| Ranuras PCI Express x16 (Gen 4.x) | 2 |
| Número de ranuras M.2 (M) | 2 |
| 1.er tamaño de clave M.2 más grande | 22110 |
| 1.ª generación M.2 PCI Express más alta | 5.0 |
| 2.º tamaño de clave más grande de M.2 | 22110 |
| 2.ª generación M.2 PCI Express más alta | 4.0 |
| Tipo de BIOS | UEFI AMI |
| Tamaño de la memoria del BIOS | 256 Mbit |
| Ancho del paquete | 338 milímetros |
| Profundidad del paquete | 373 milímetros |
| Altura del paquete | 68 milímetros |
| Peso del paquete | 1,35 kilogramos |
| Ancho | 305 milímetros |
| Profundidad | 244 milímetros |

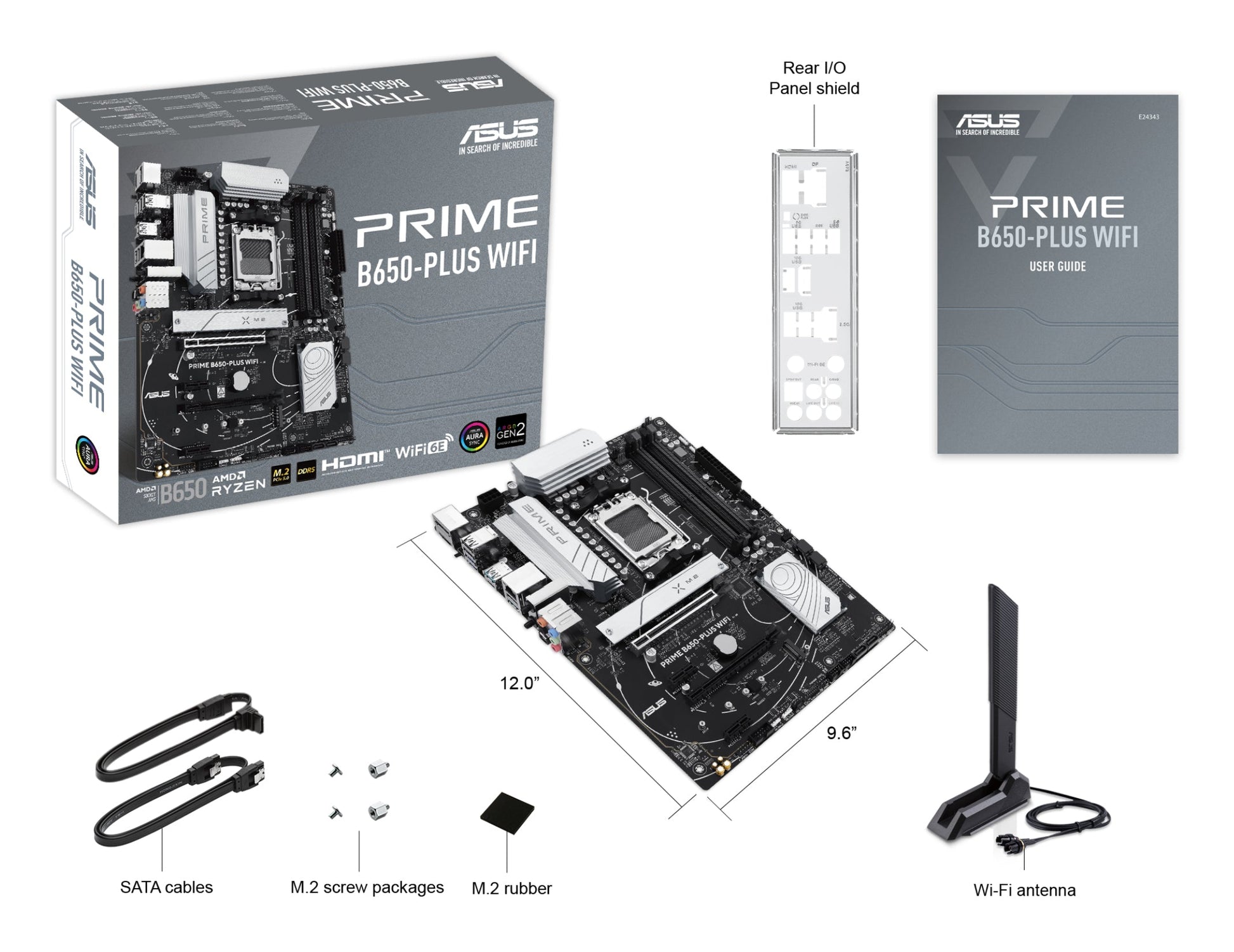

| Cables incluidos | SATA |
| Antena incluida | Sí |
| Tornillos incluidos | Sí |
