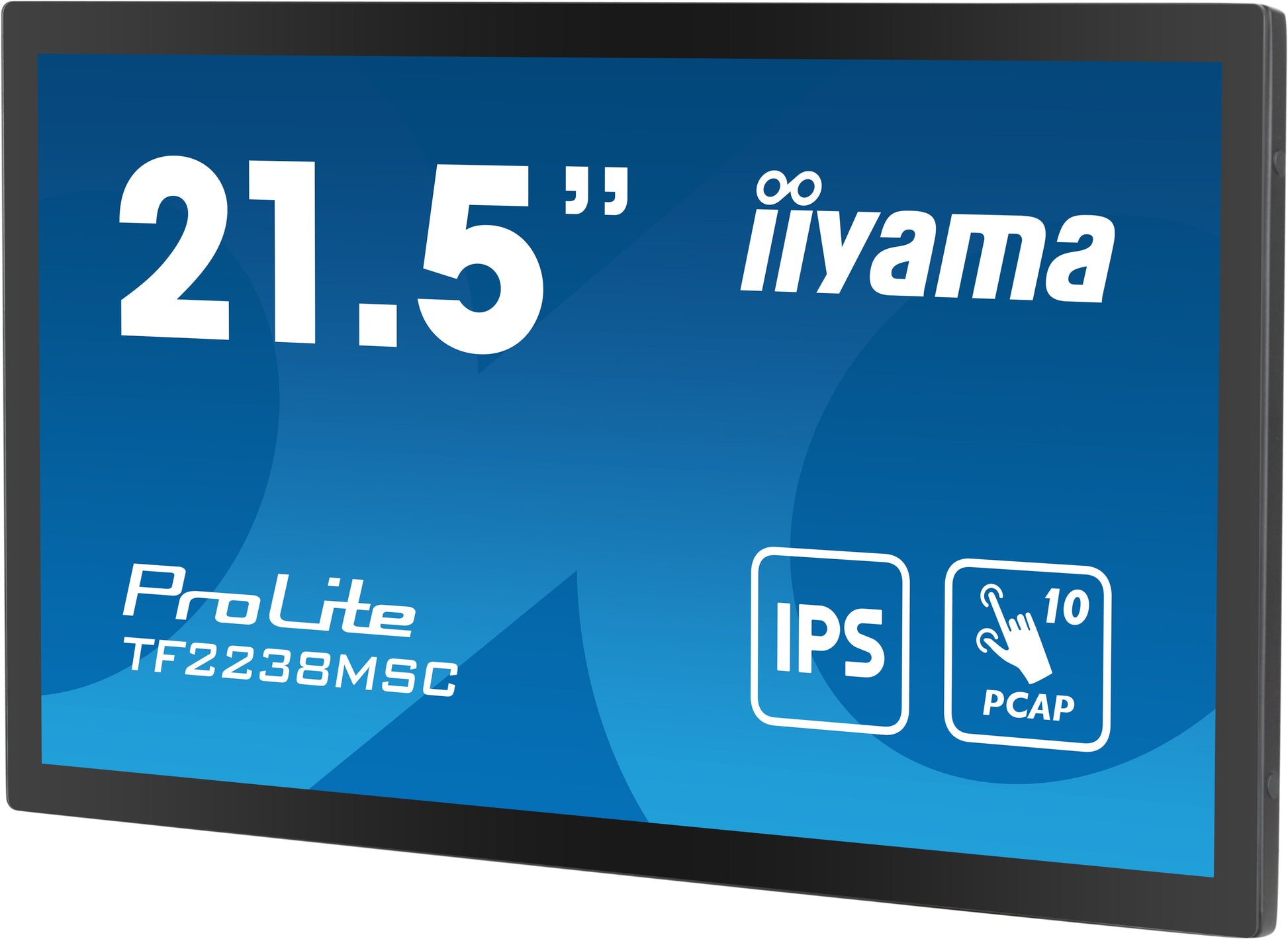

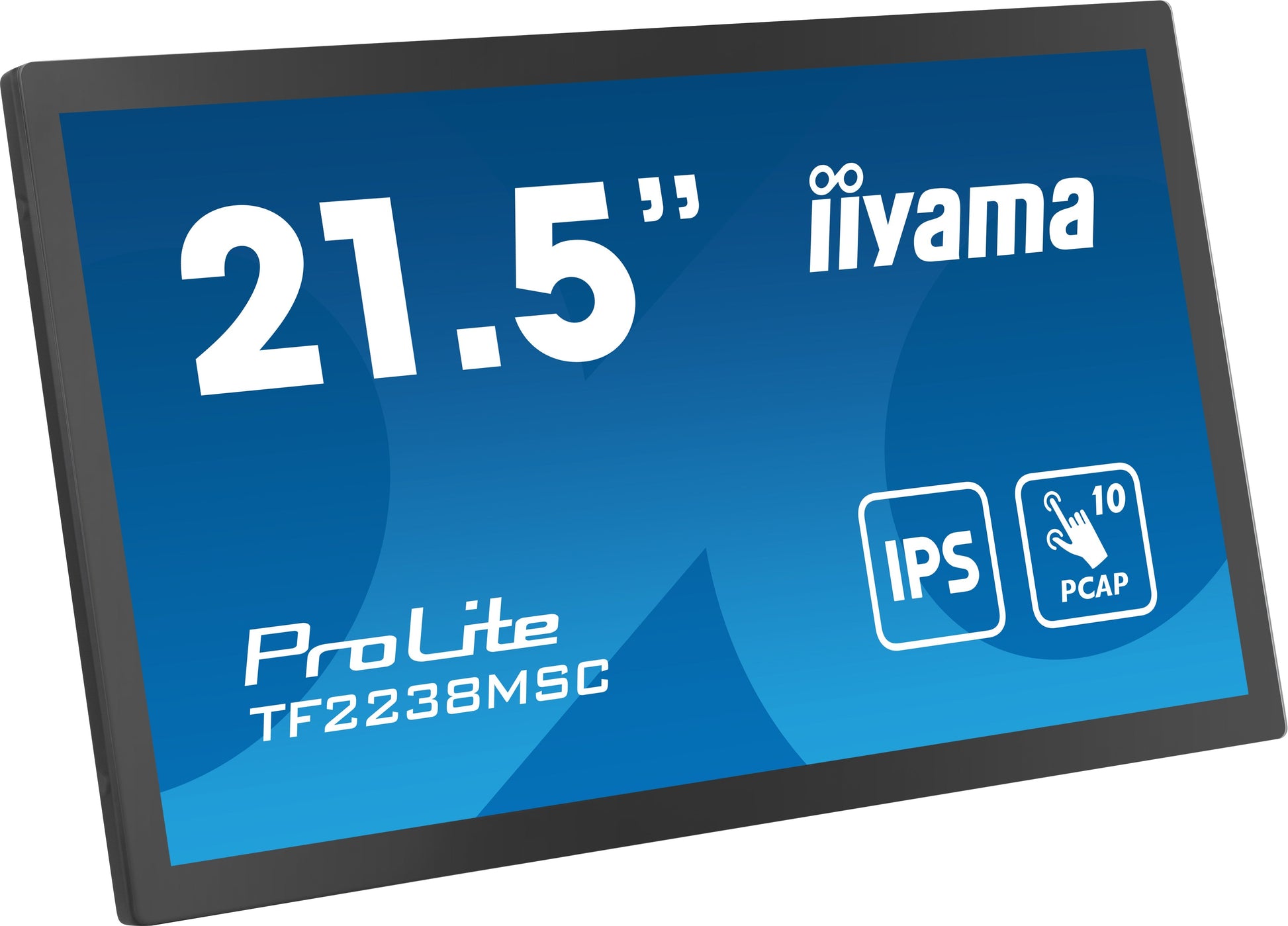

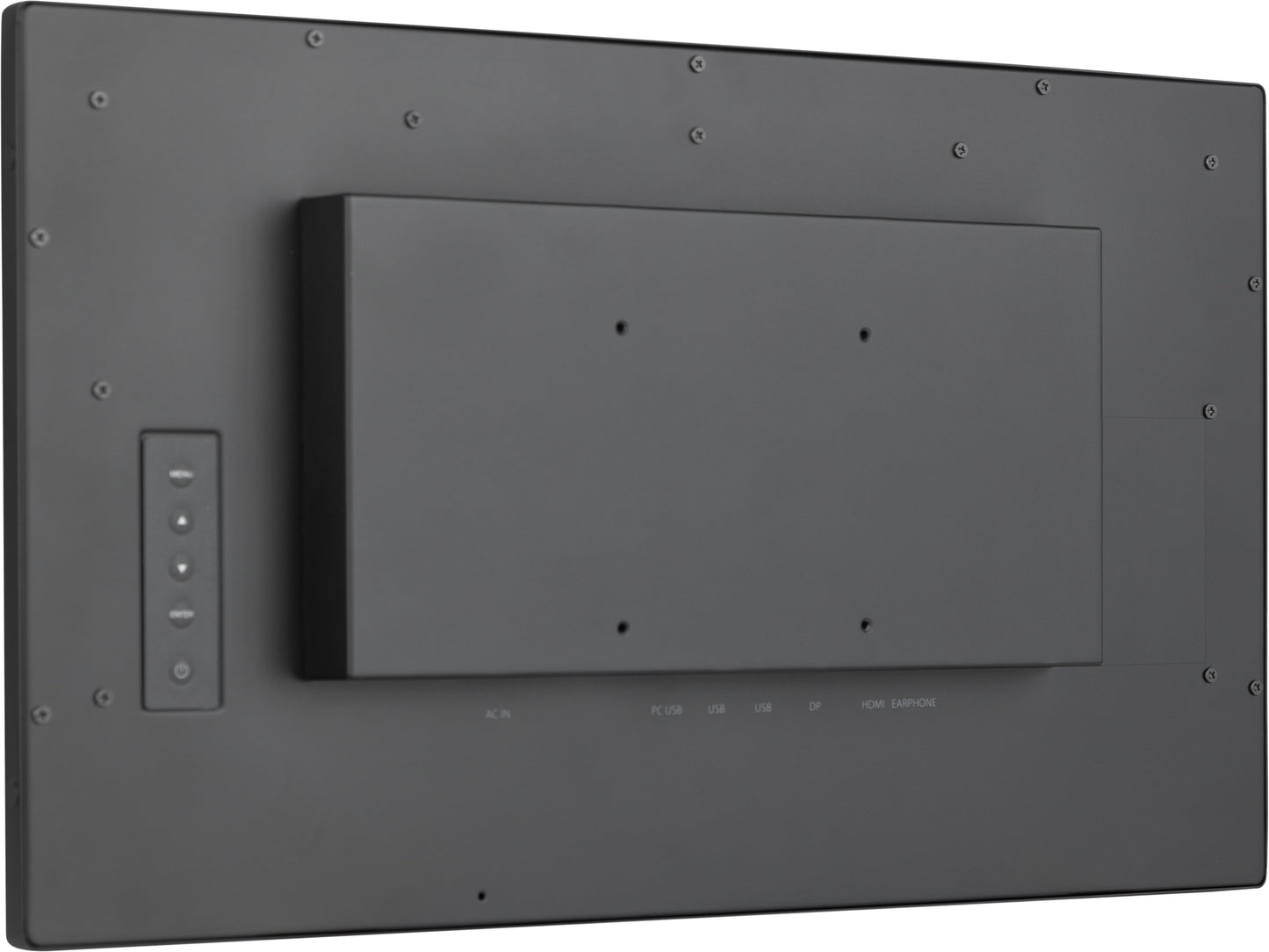

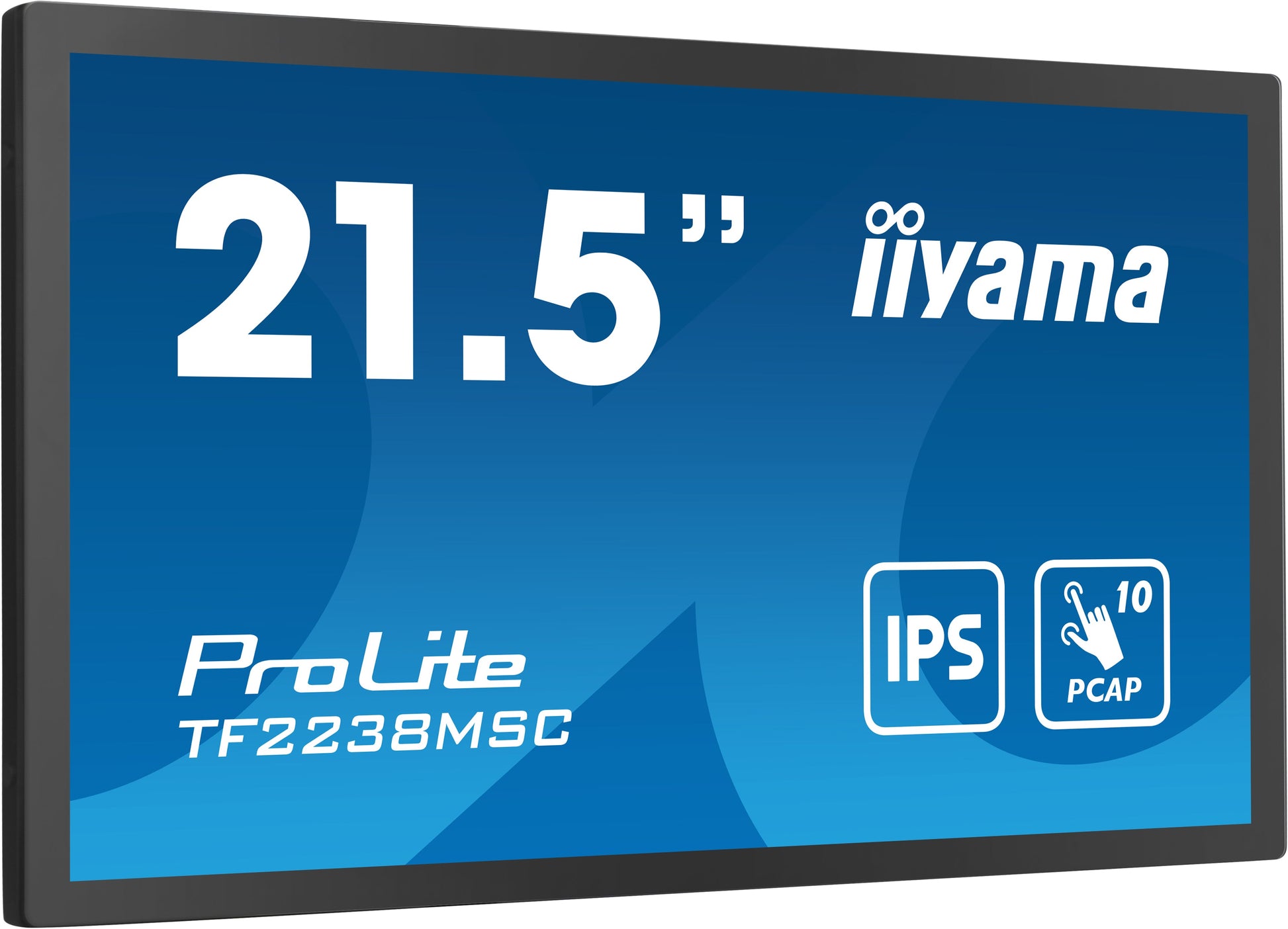

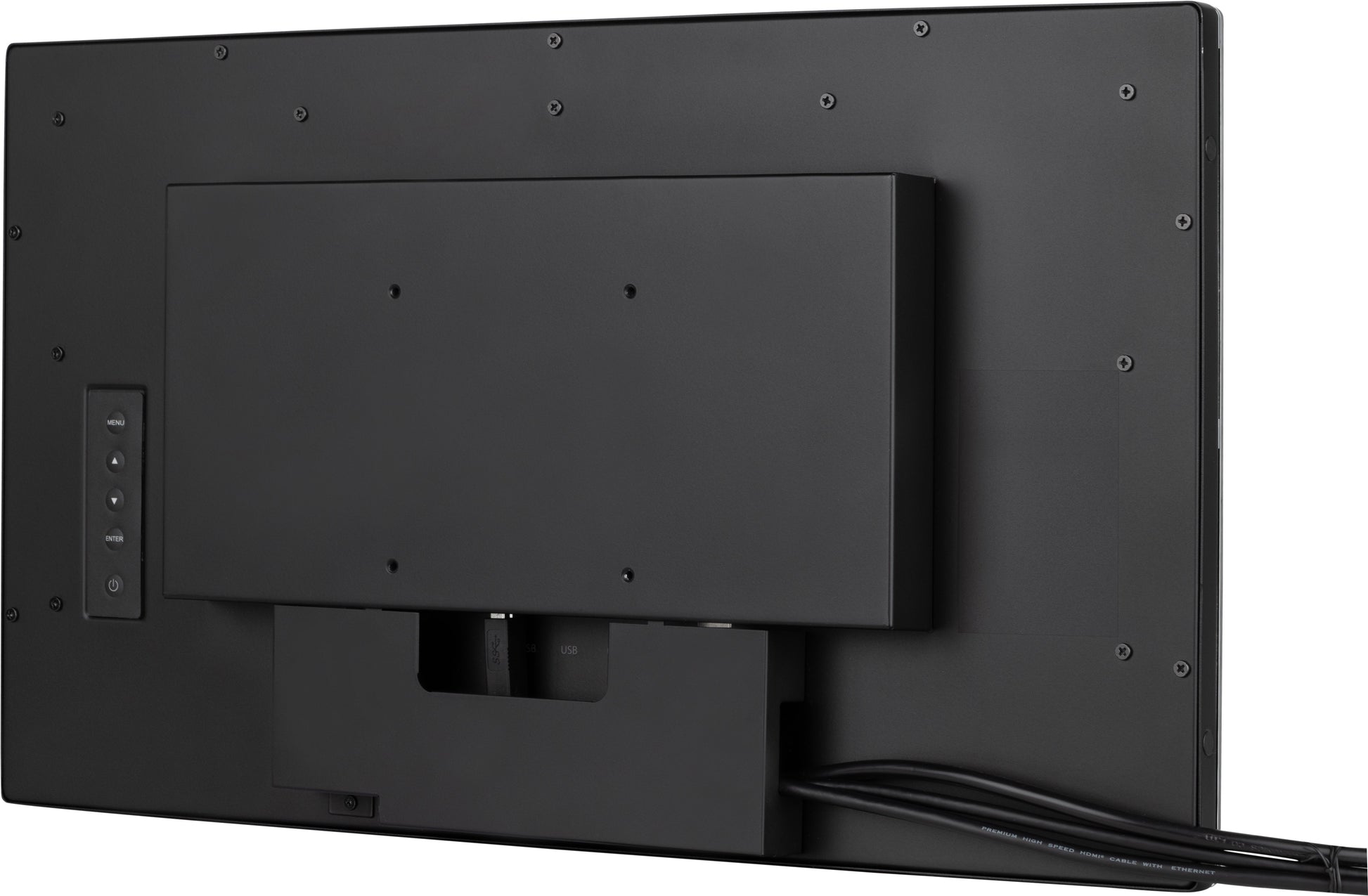

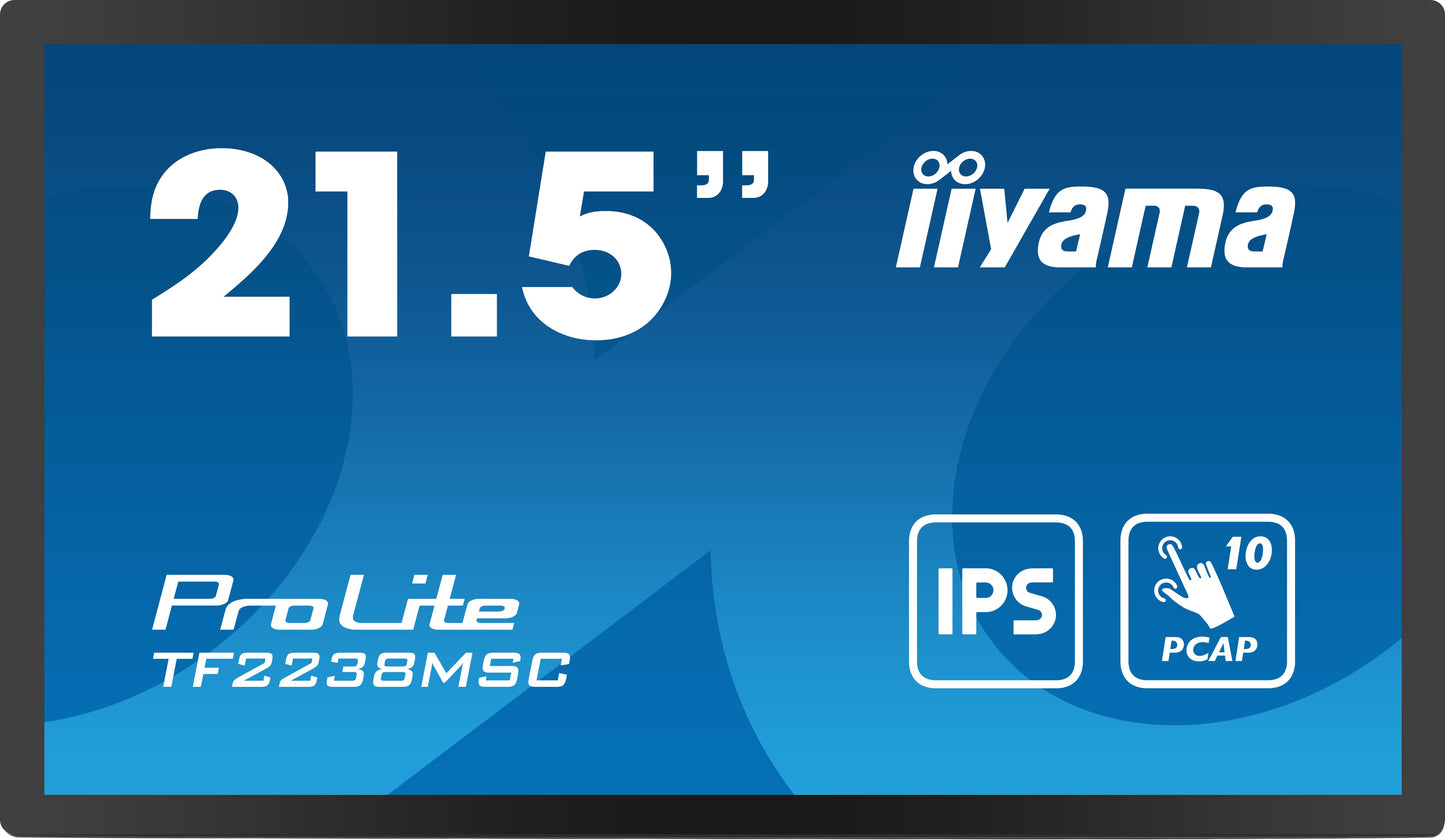

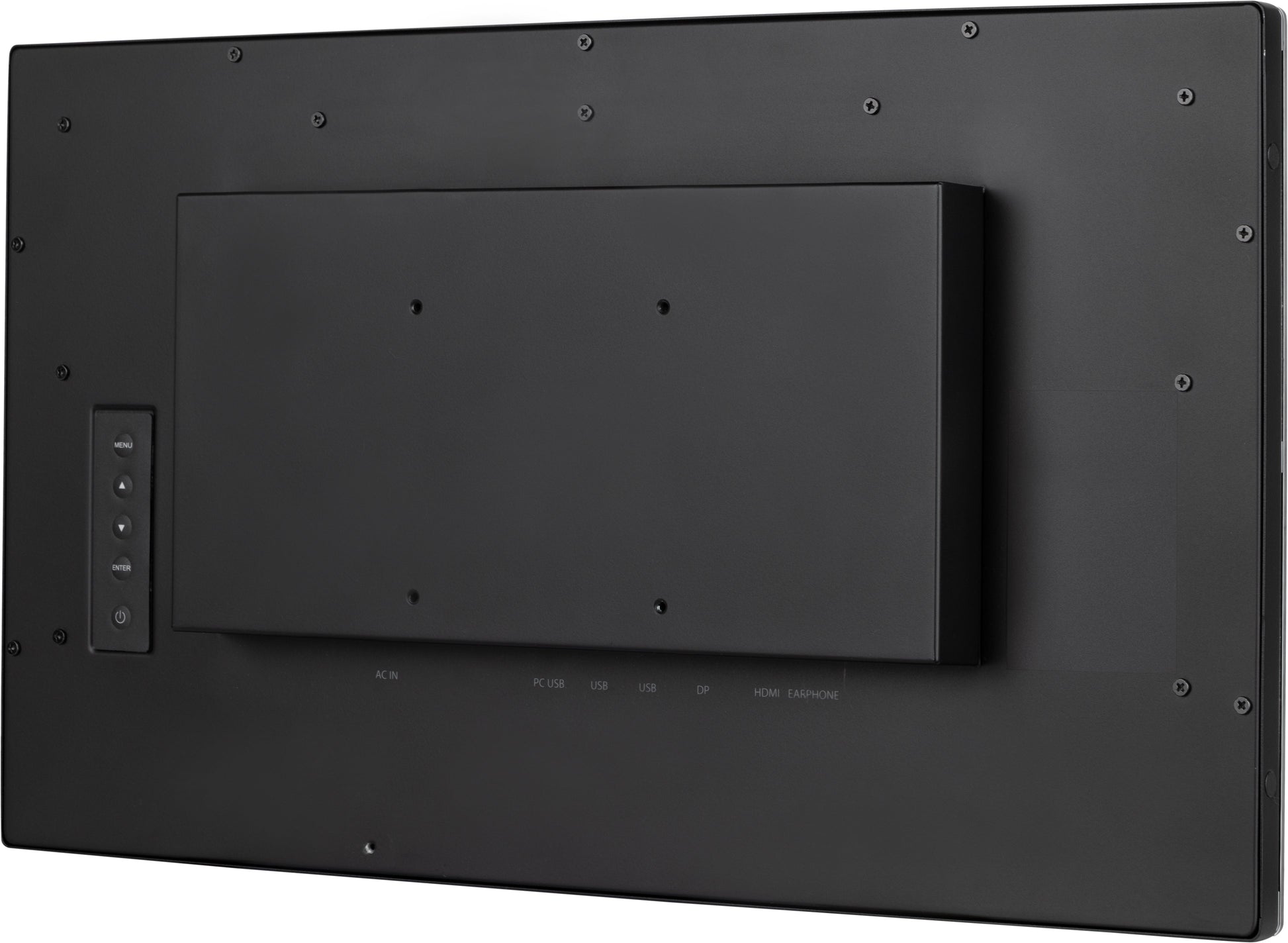

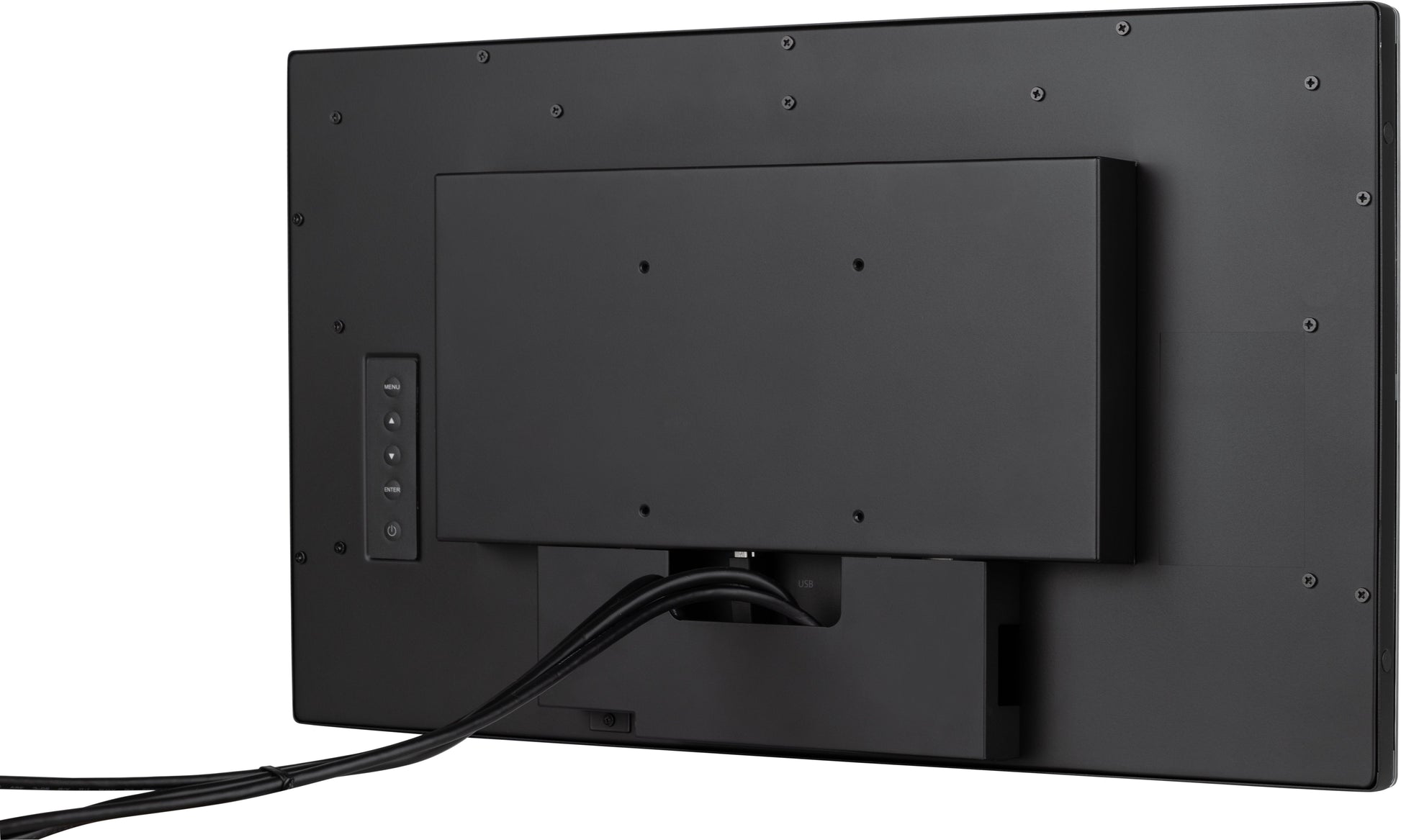

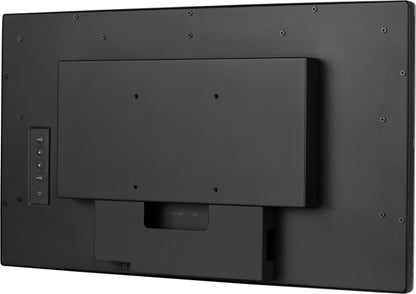

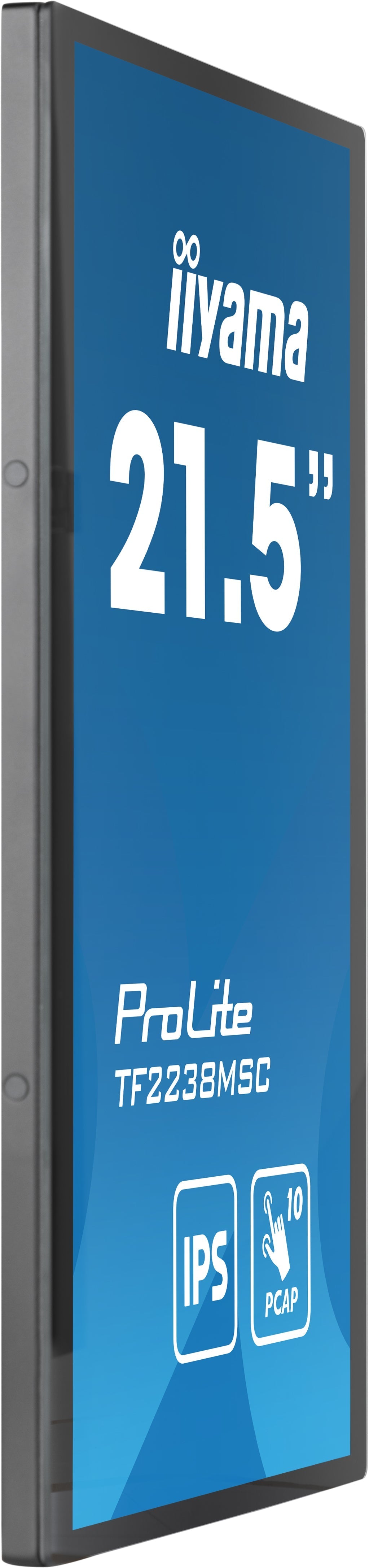

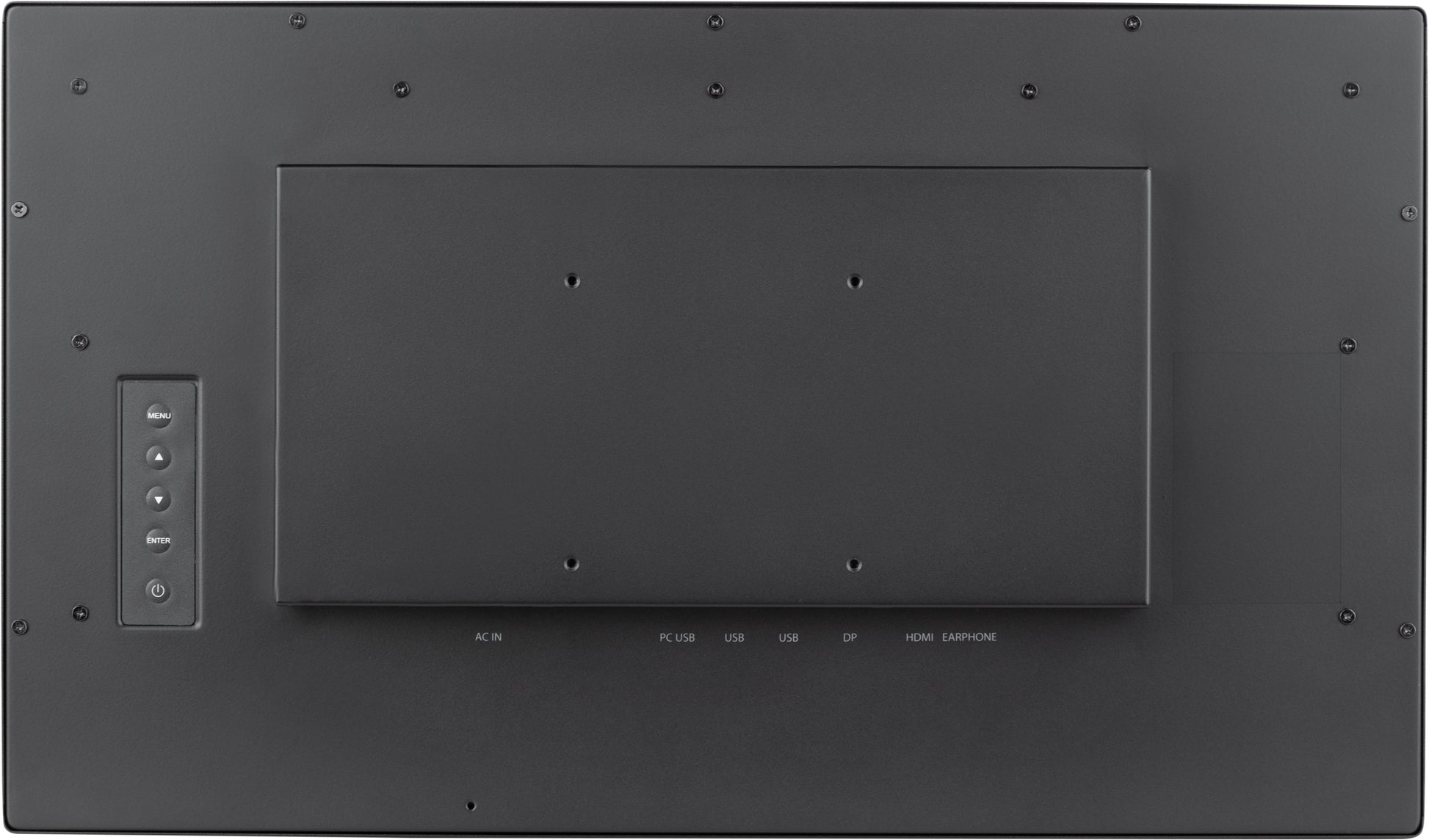

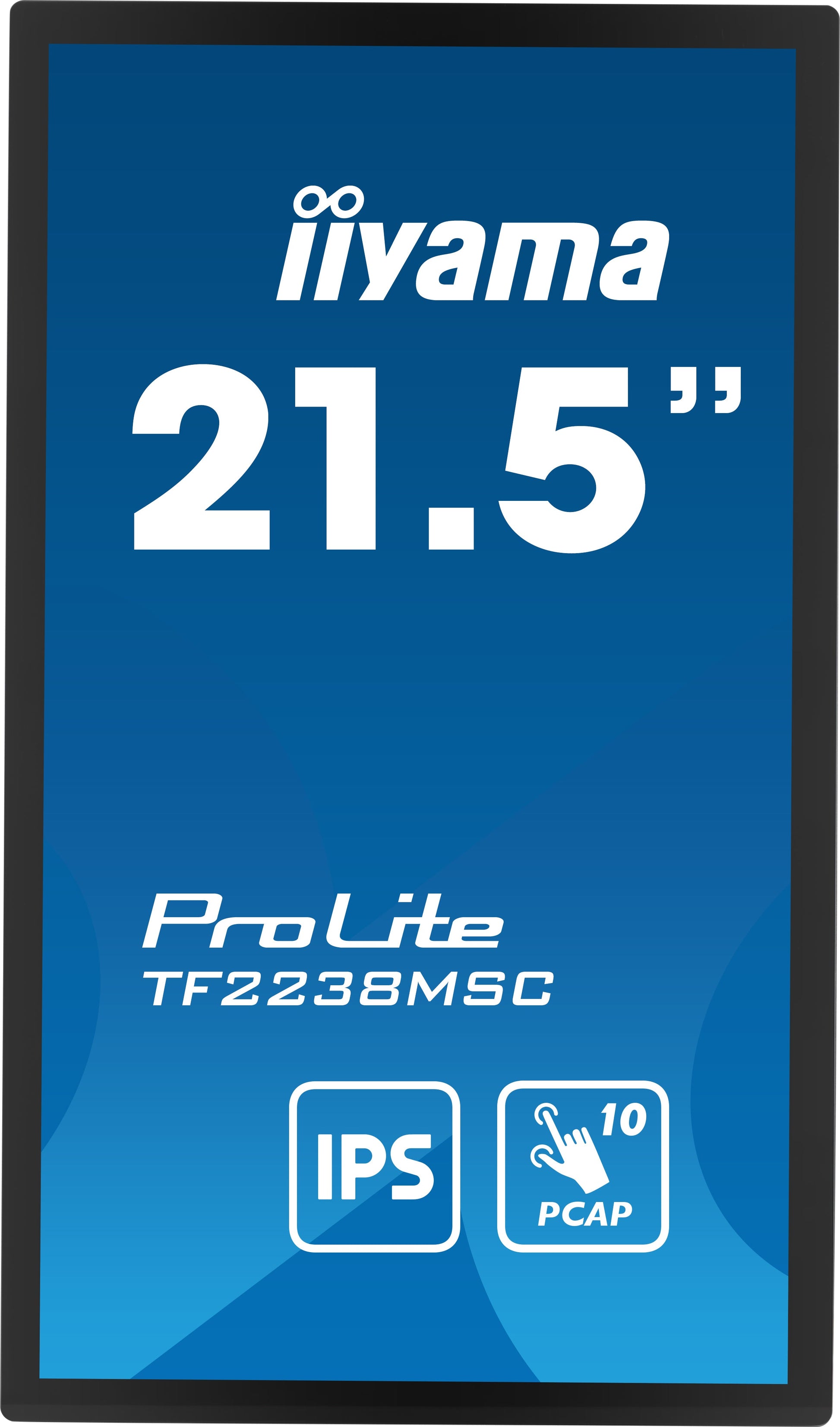

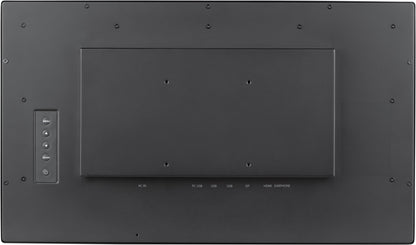

iiyama TF2238MSC-B1 Signage Display Digital A-board 55.9 cm (22") LED 600 cd/m² Full HD Black Touchscreen
iiyama TF2238MSC-B1 Signage Display Digital A-board 55.9 cm (22") LED 600 cd/m² Full HD Black Touchscreen
Couldn't load pickup availability
| Panel type | IPS |
| Display diagonal | 55.9 cm (22") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 600 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Active display area (W x H) | 479 x 260 mm |
| Display diagonal (metric) | 54.5 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |

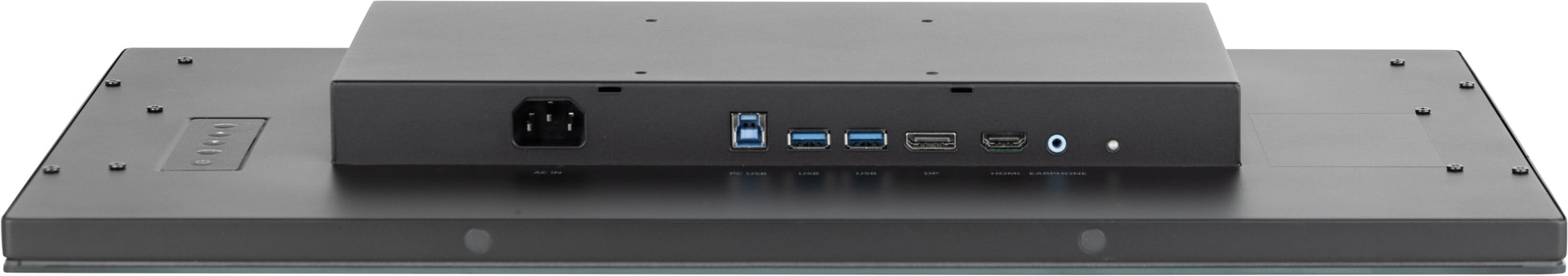

| HDMI ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN | No |
| Wi-Fi | No |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 2 W |
| Product design | Digital A-board |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |

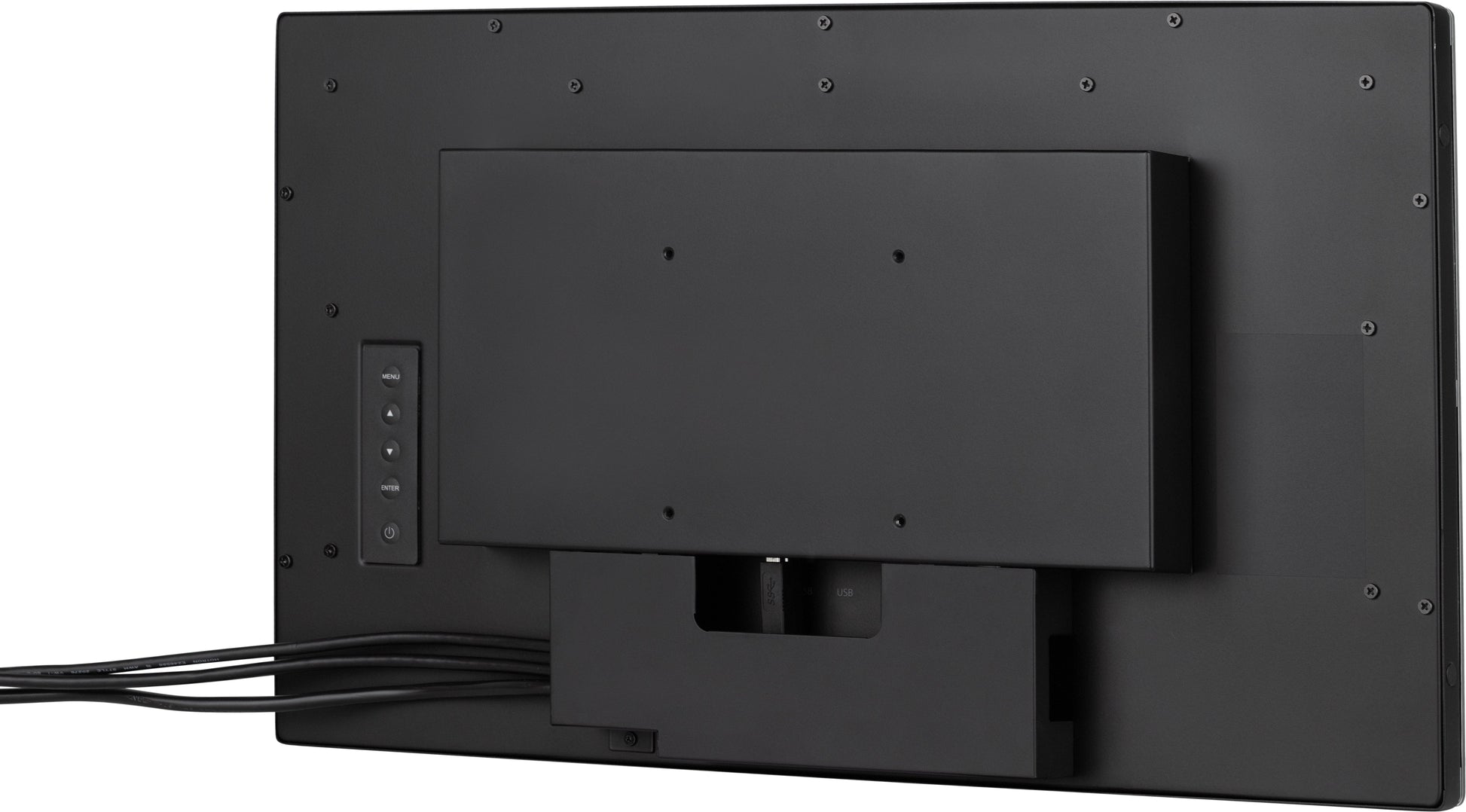

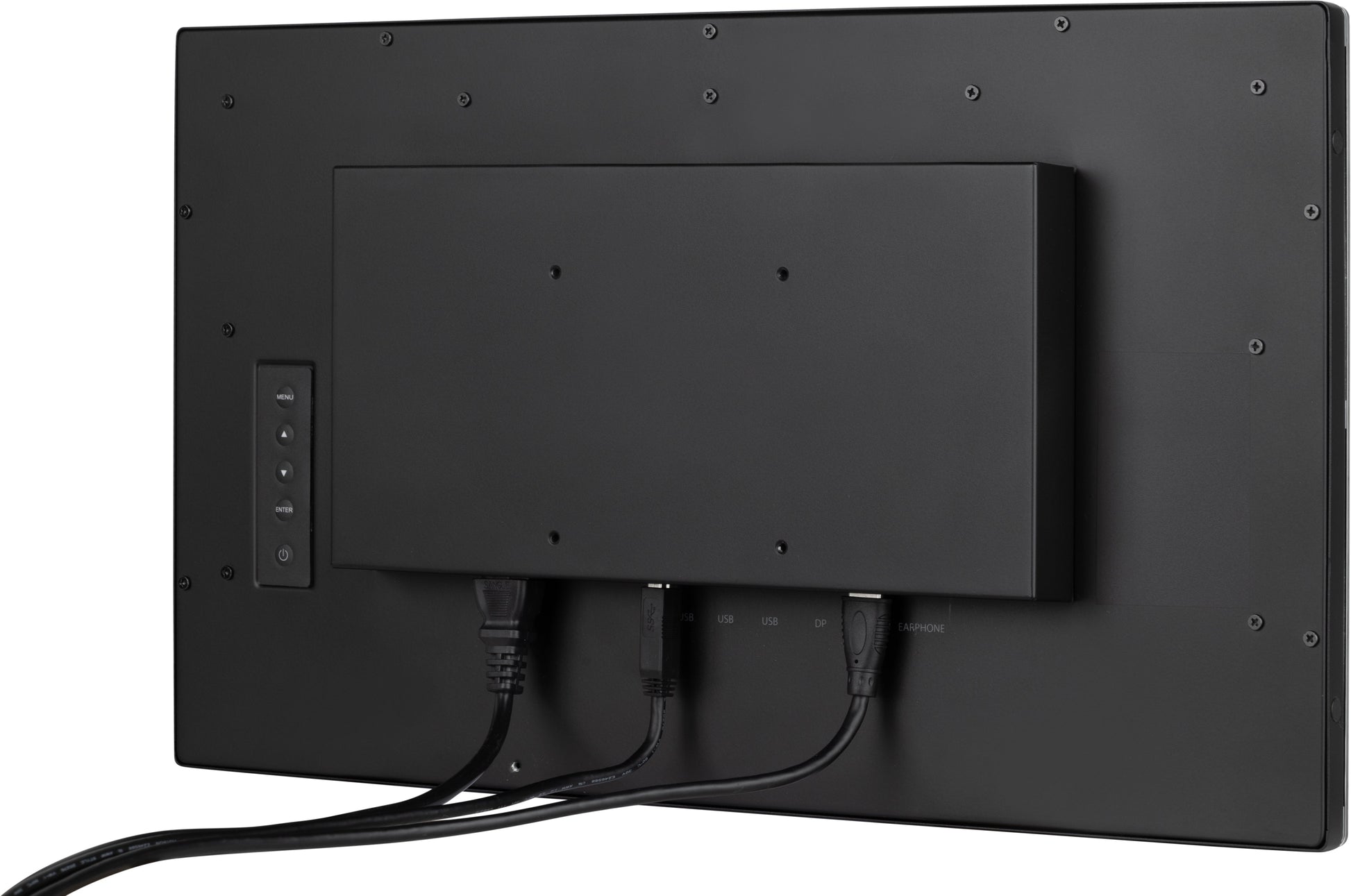

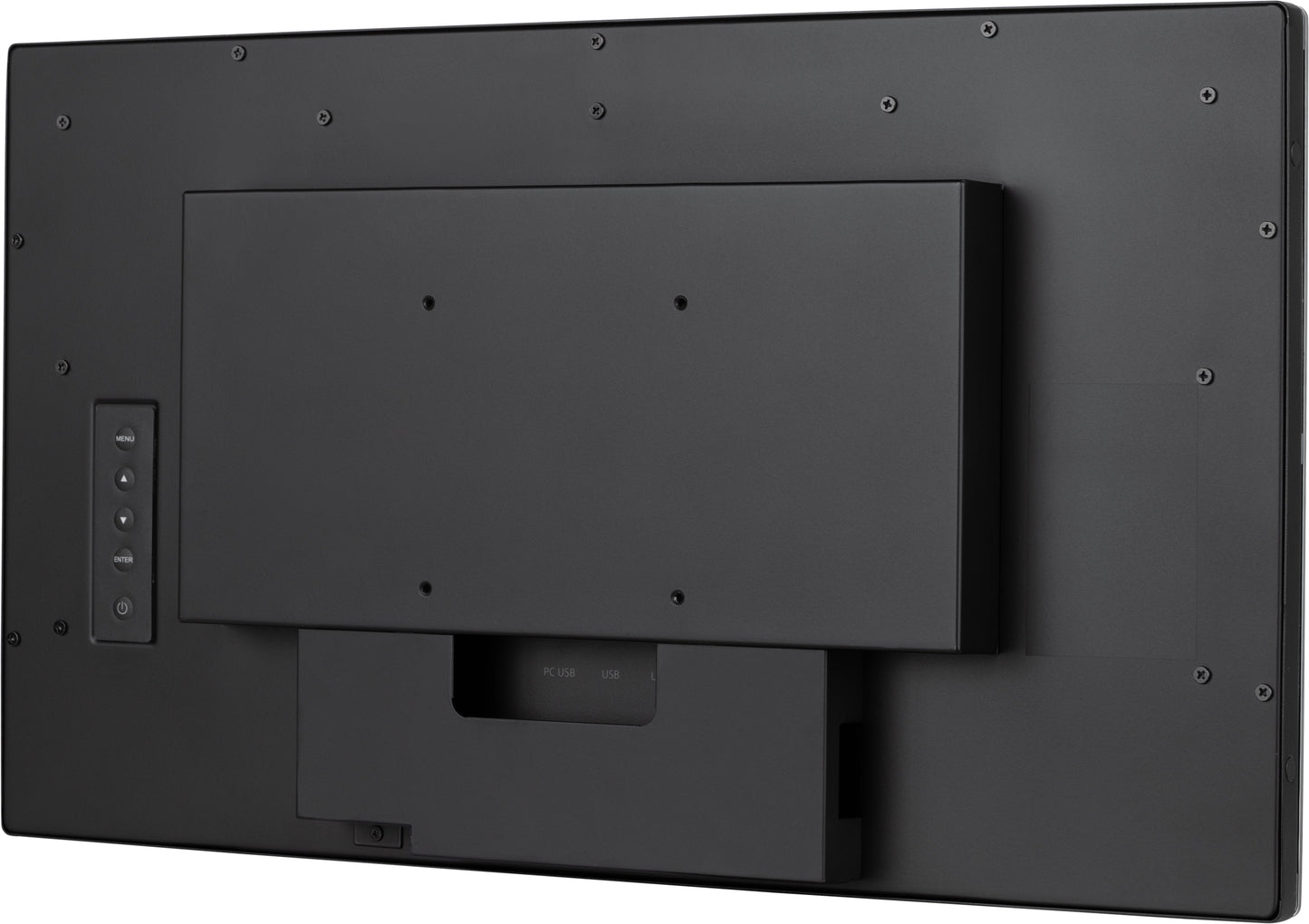

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 1.98 cm |
| Bezel width (side) | 1.7 cm |
| Bezel width (top) | 1.98 cm |
| Purpose | Universal |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, French, Japanese, Polish, Russian |
| HDCP | Yes |
| International Protection (IP) code | IP1X |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | D |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Computer system | No |
| Built-in processor | No |
| Display width | 512.5 mm |
| Display depth | 47 mm |
| Display height | 300 mm |
| Display weight | 5.1 kg |
| Package width | 572 mm |
| Package depth | 112 mm |
| Package height | 364 mm |
| Package weight | 6.4 kg |

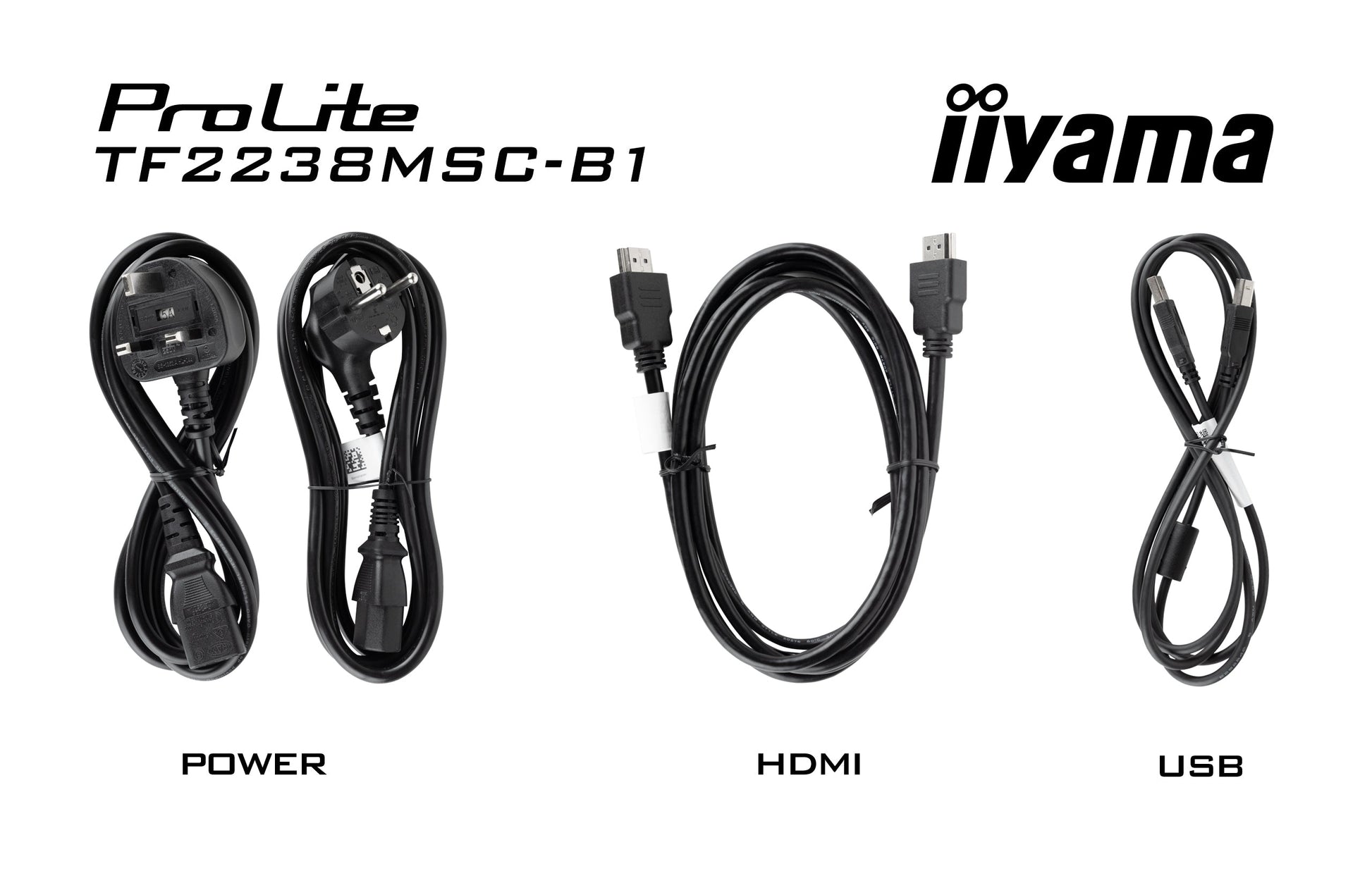

| Cables included | HDMI, Power, USB |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
