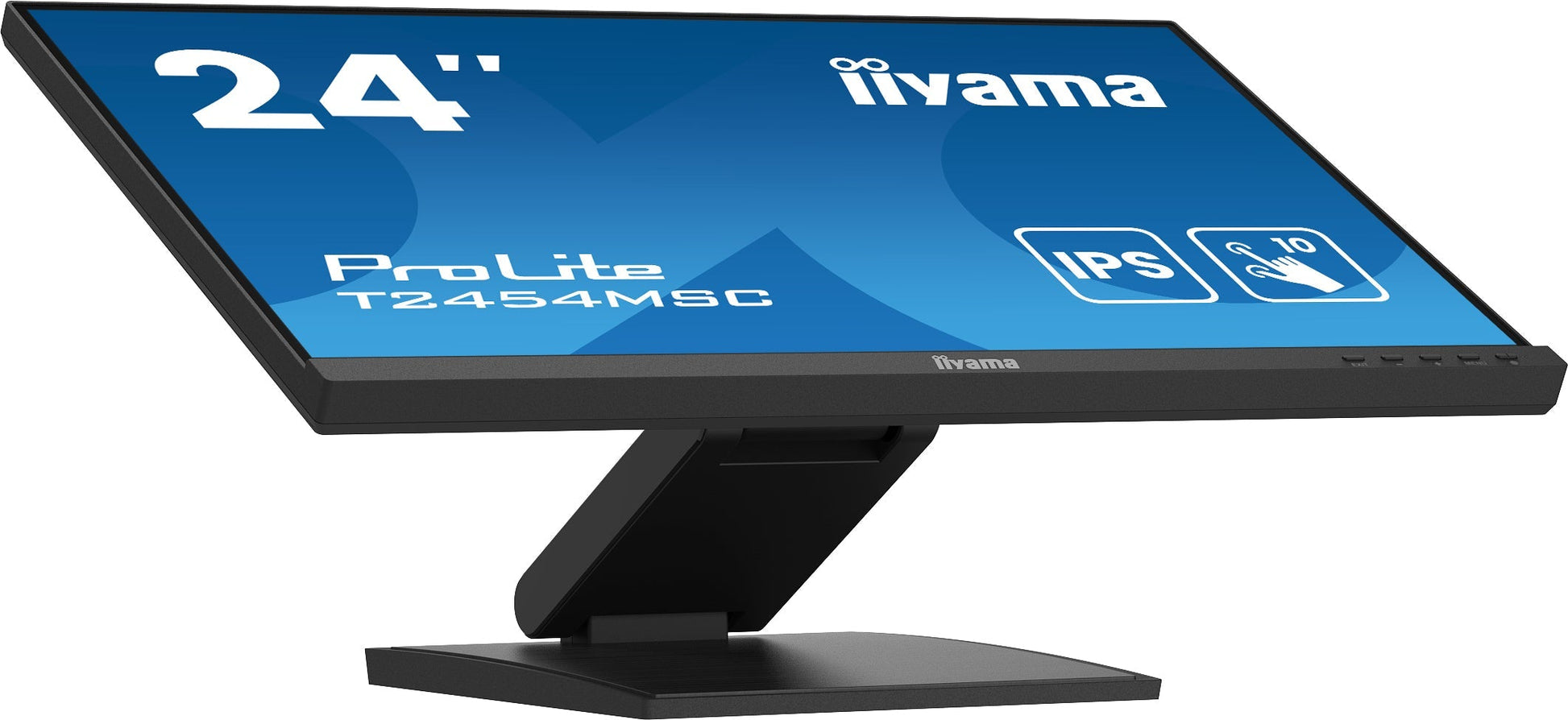

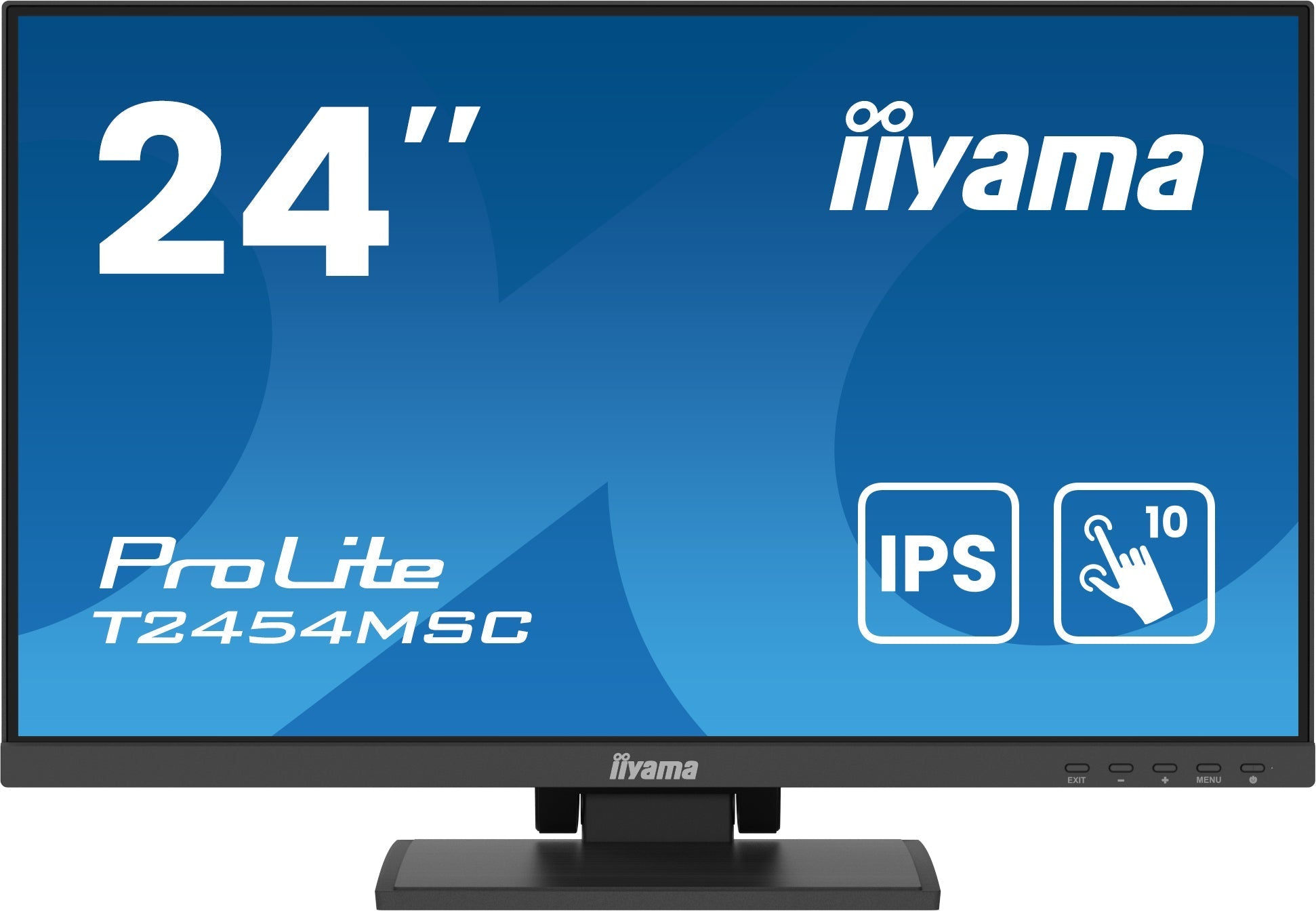

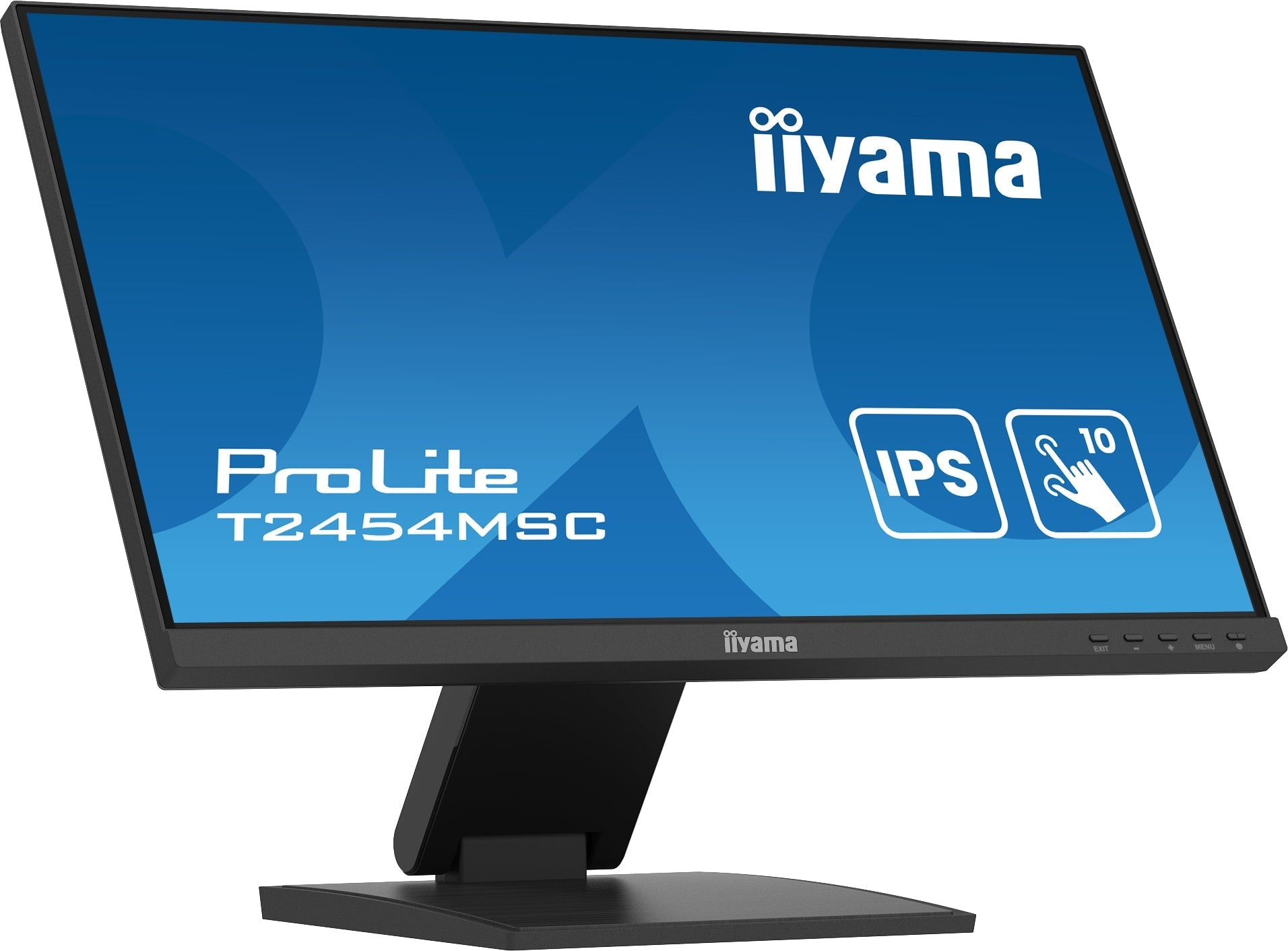

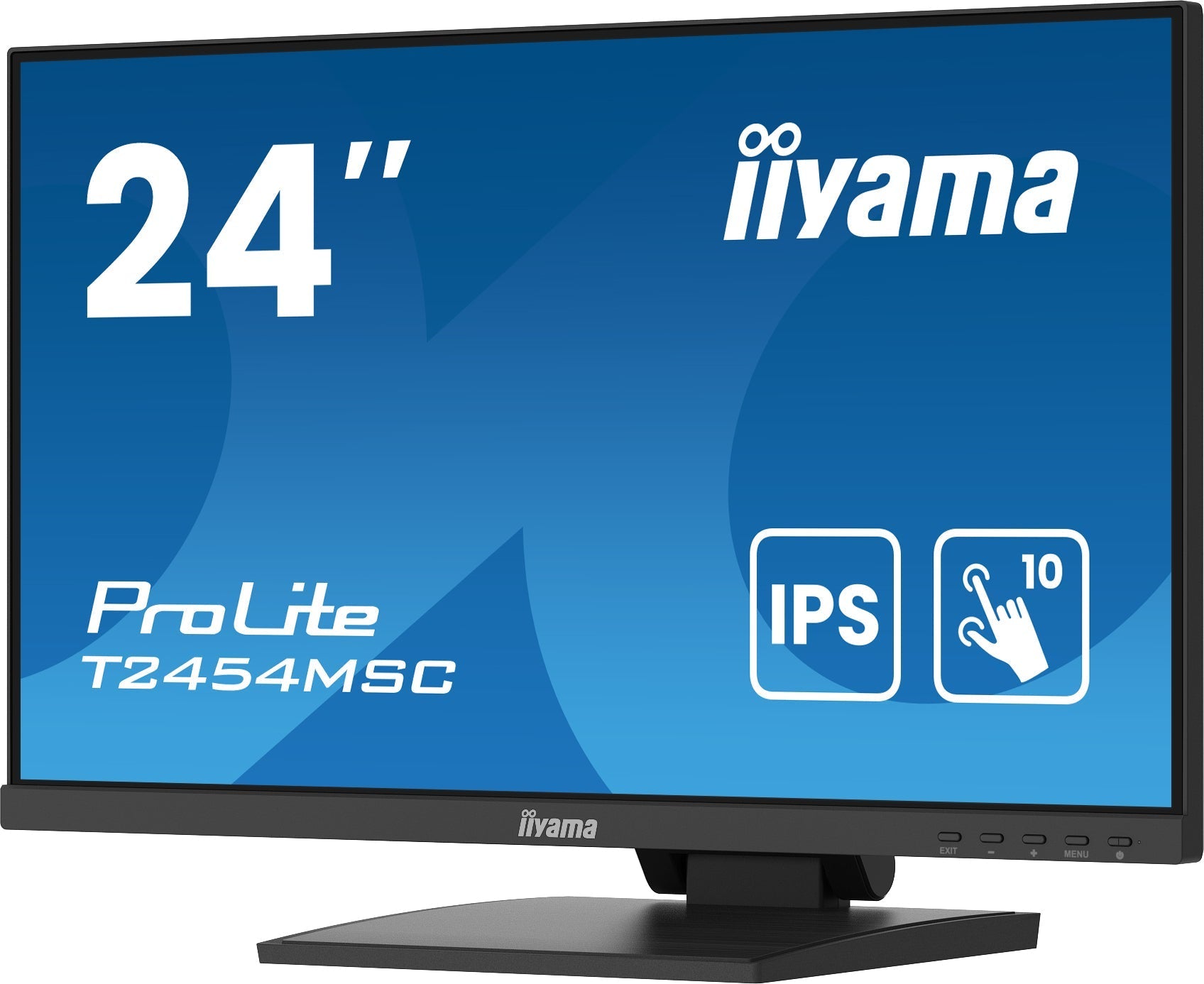

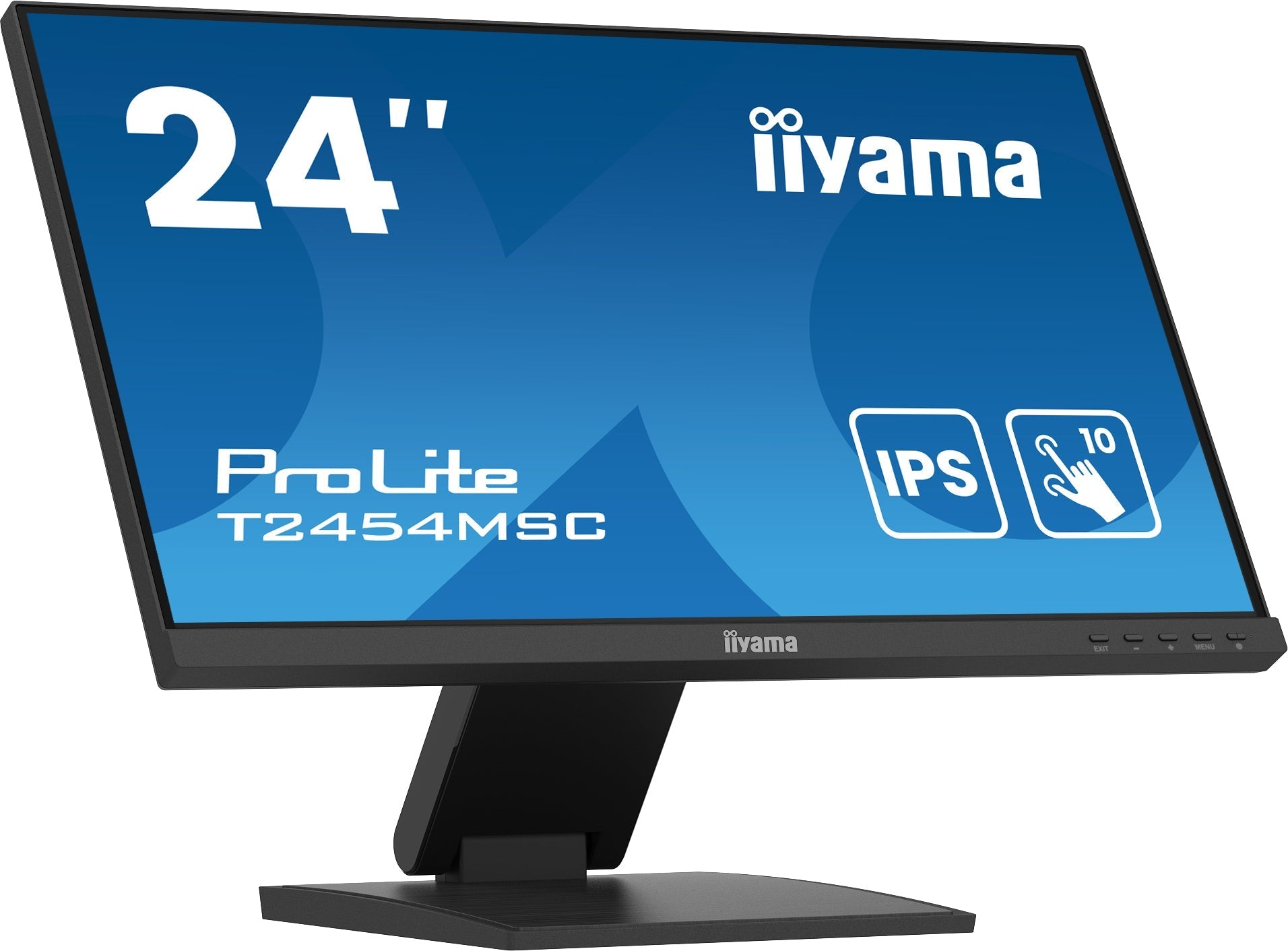

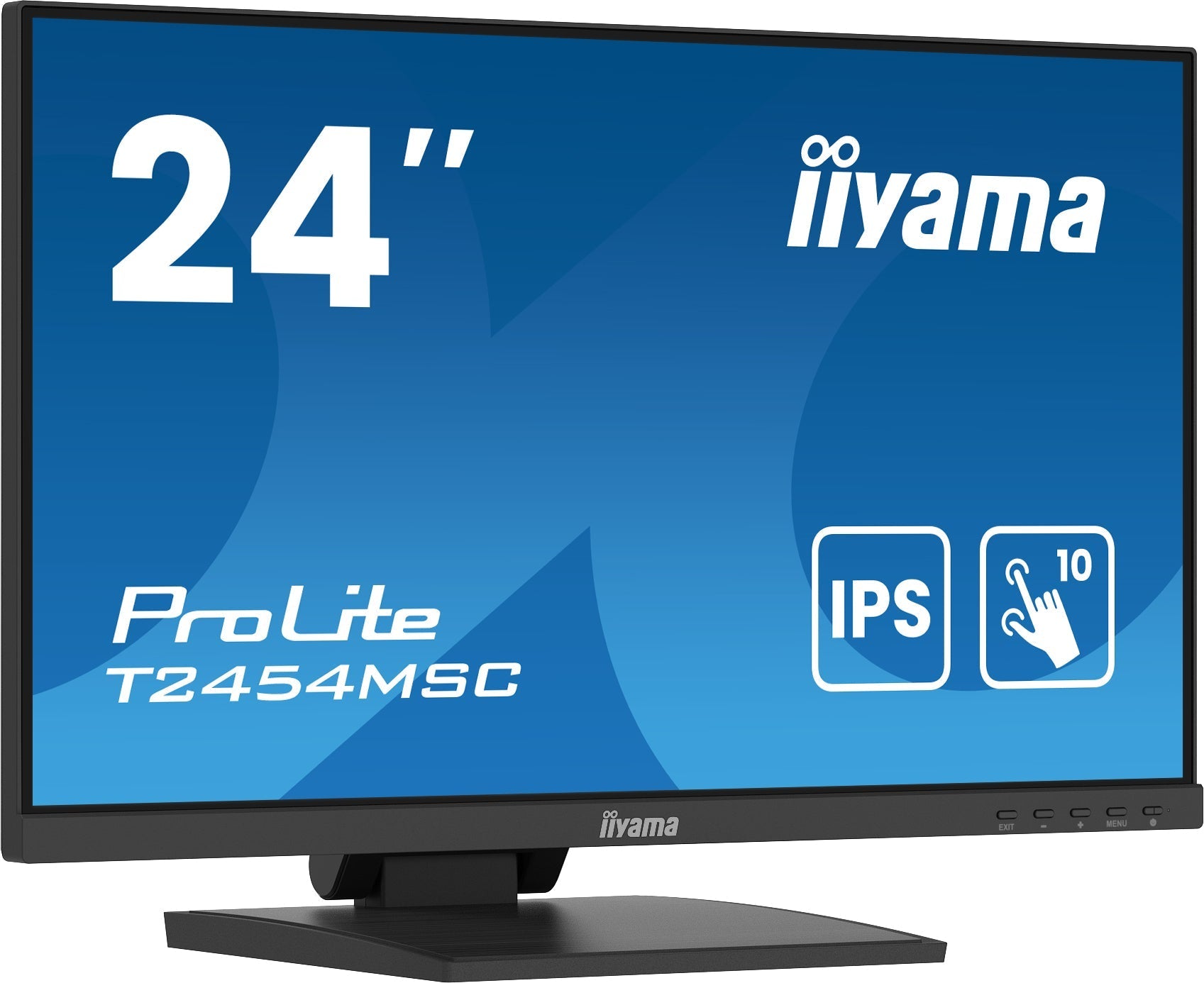

With its Full HD (1920x1080) resolution and accurate In-cell Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B2AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B2AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: LED backlight
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 250 cd/m²
Response time: 4 ms
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 5000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.274 x 0.274 mm
Horizontal scan range: 30 - 80 kHz
Vertical scan range: 56 - 75 Hz
Display diagonal (metric): 60.5 cm
Performance
Feature: Windows operating systems supported
Feature: Linux operating systems supported
Multimedia
RMS rated power: 4 W
Feature: Built-in speaker(s)
Megapixel (approx.): 2.1 MP
Design
Product colour: Black

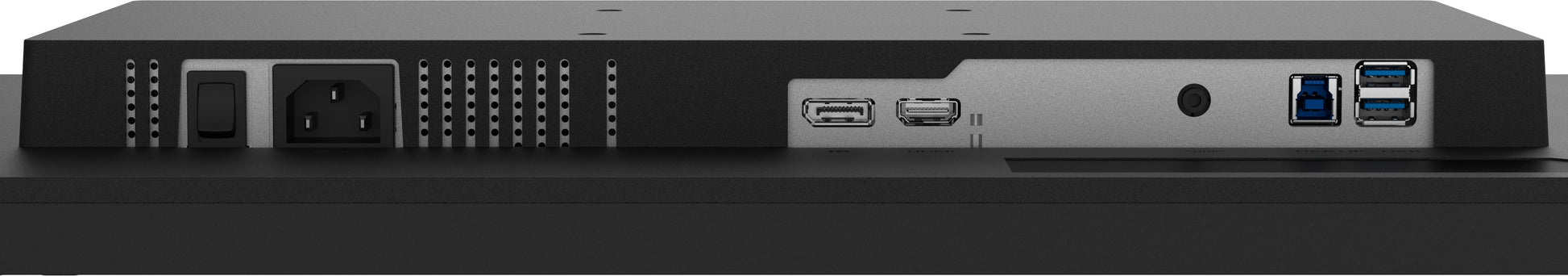

Ports & interfaces
Number of upstream ports: 1
USB Type-A downstream ports quantity: 1
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
Feature: HDCP
Ergonomics

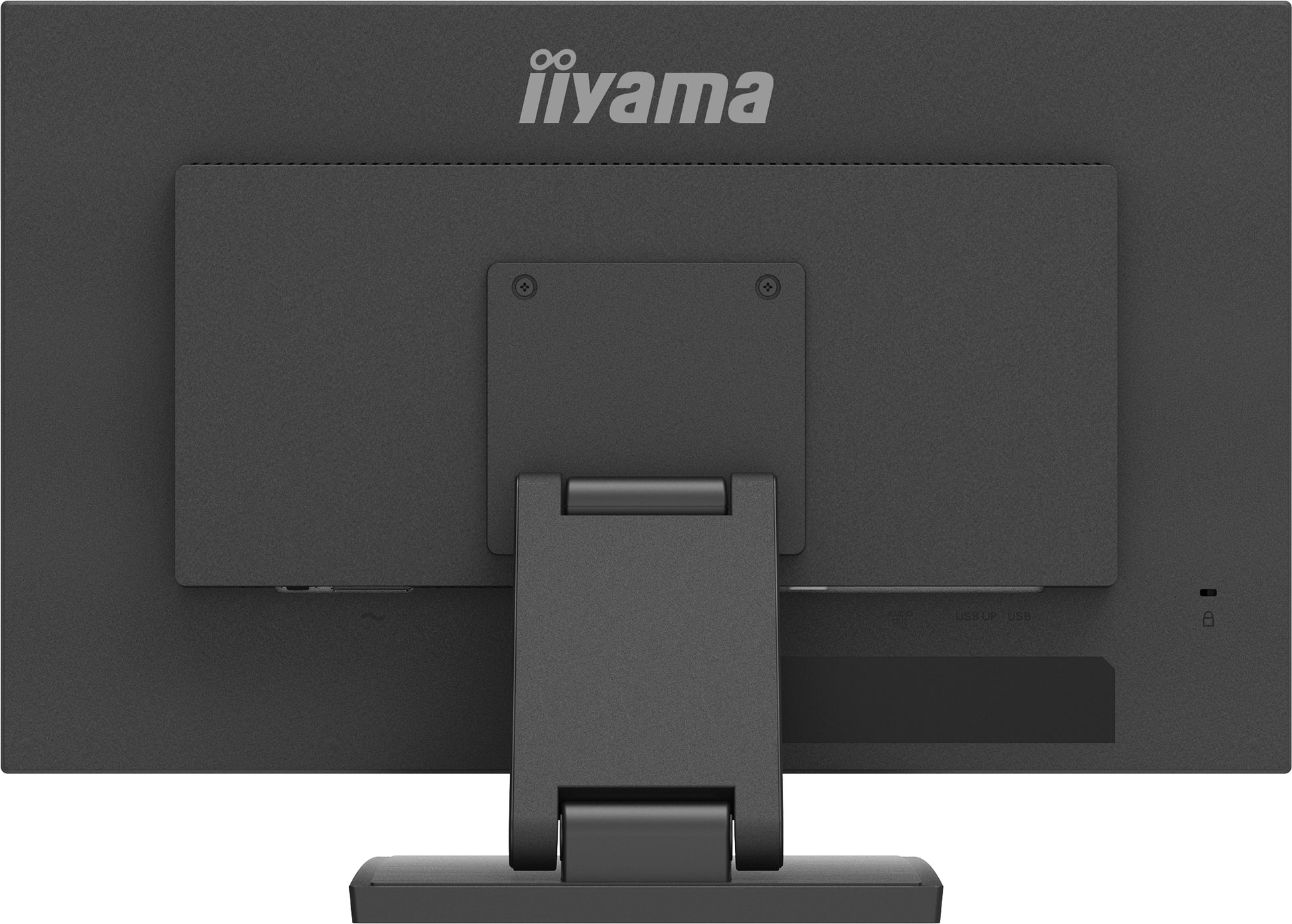

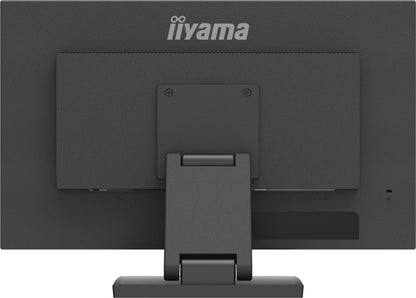

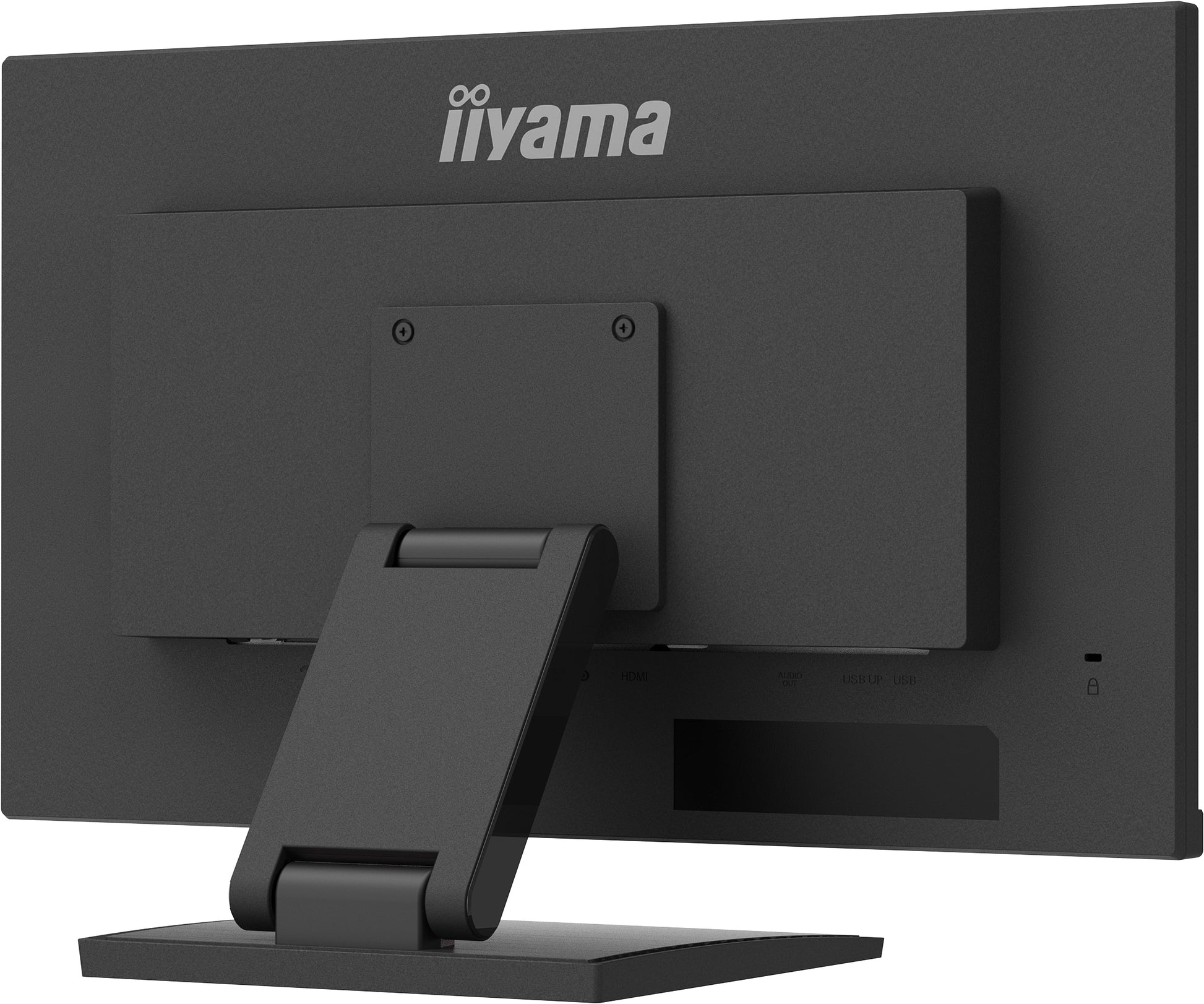

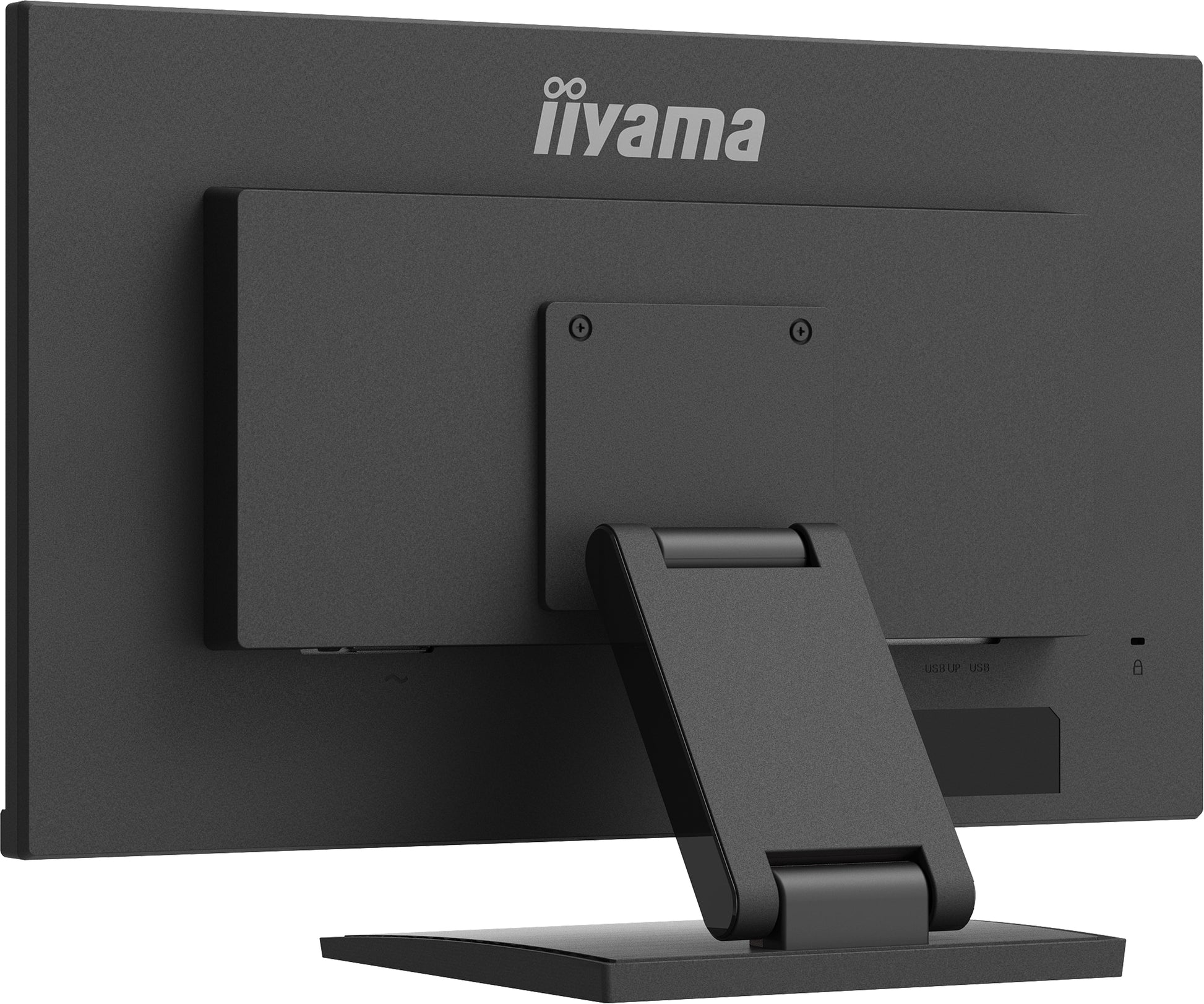

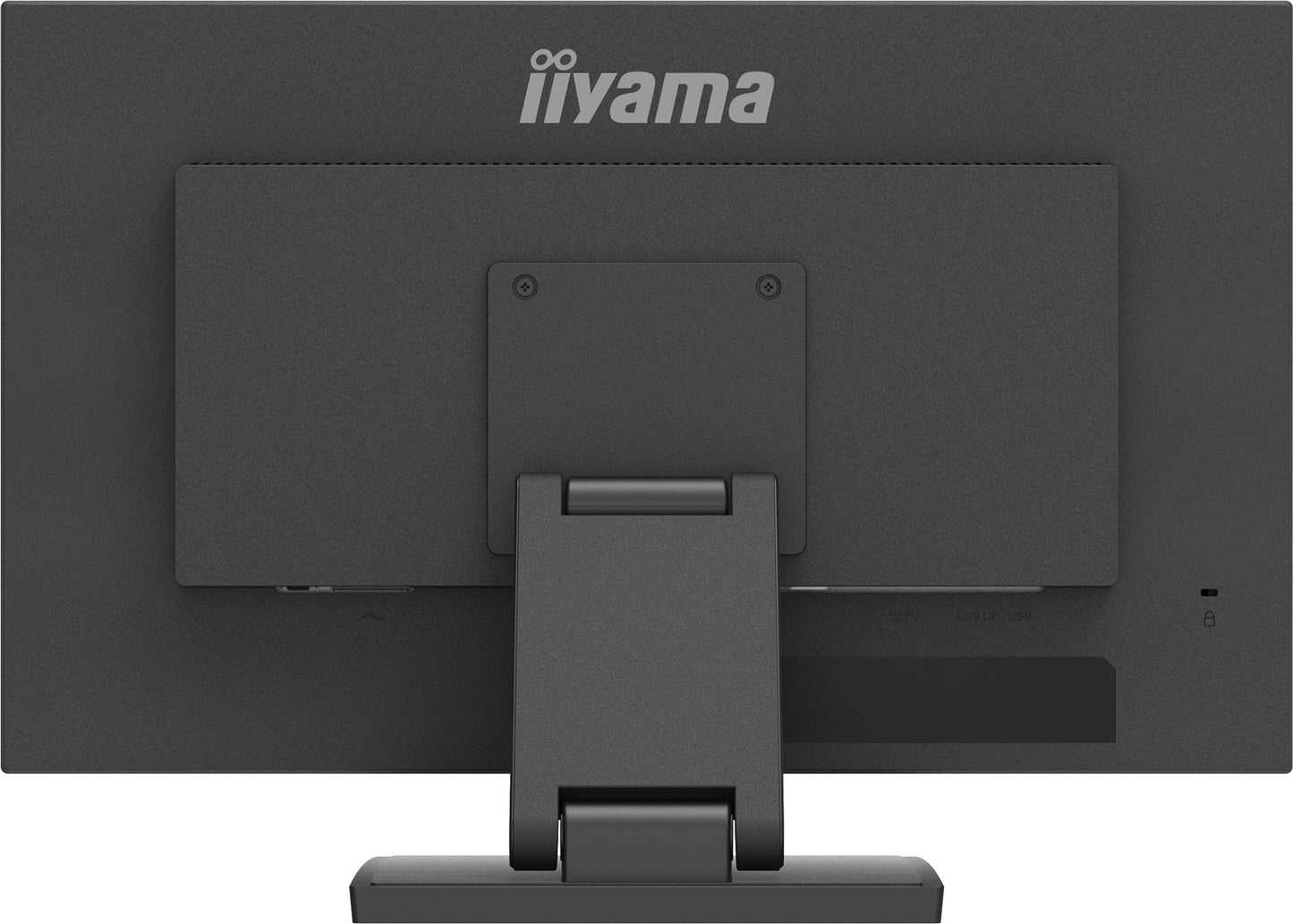

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 7 cm

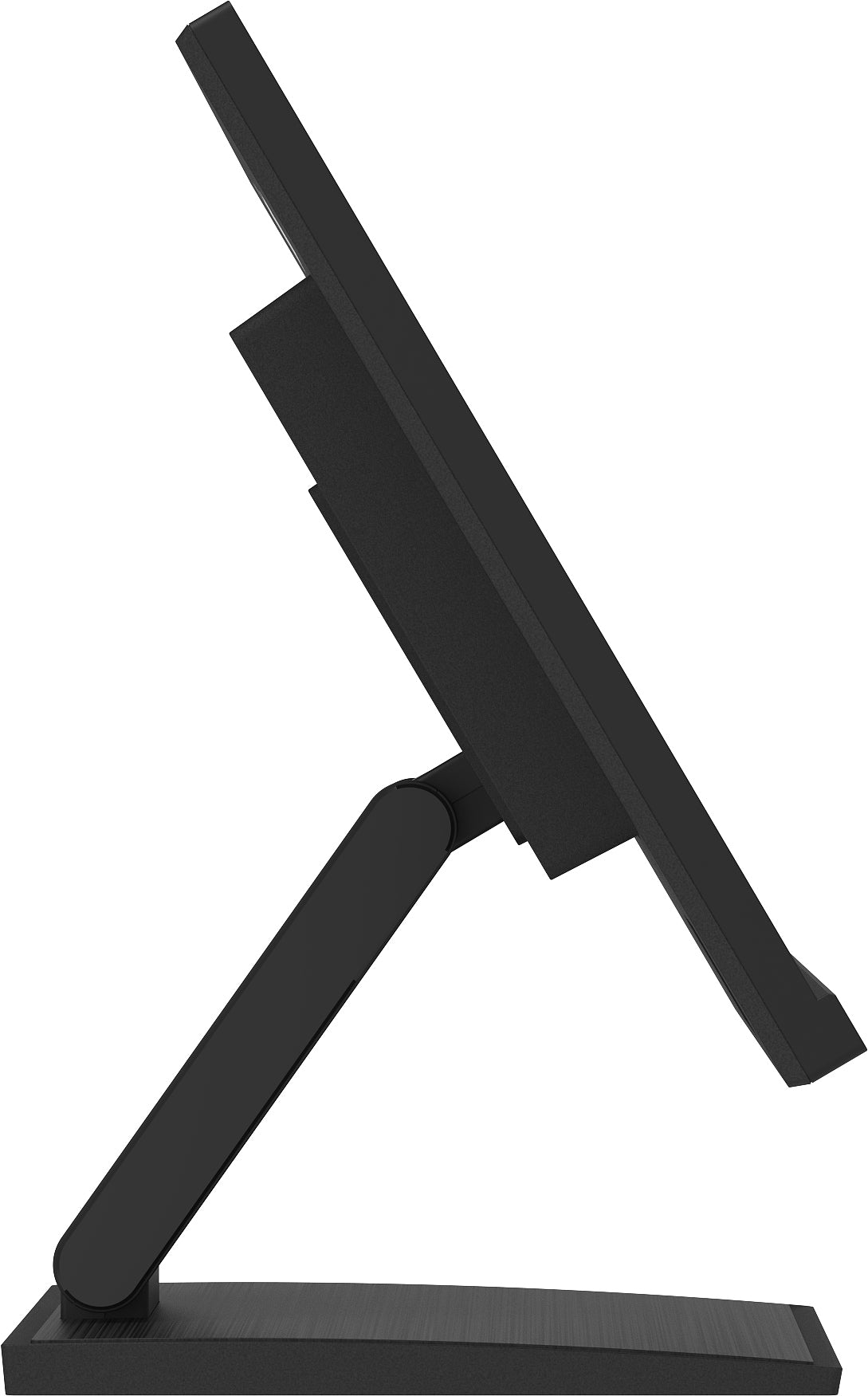

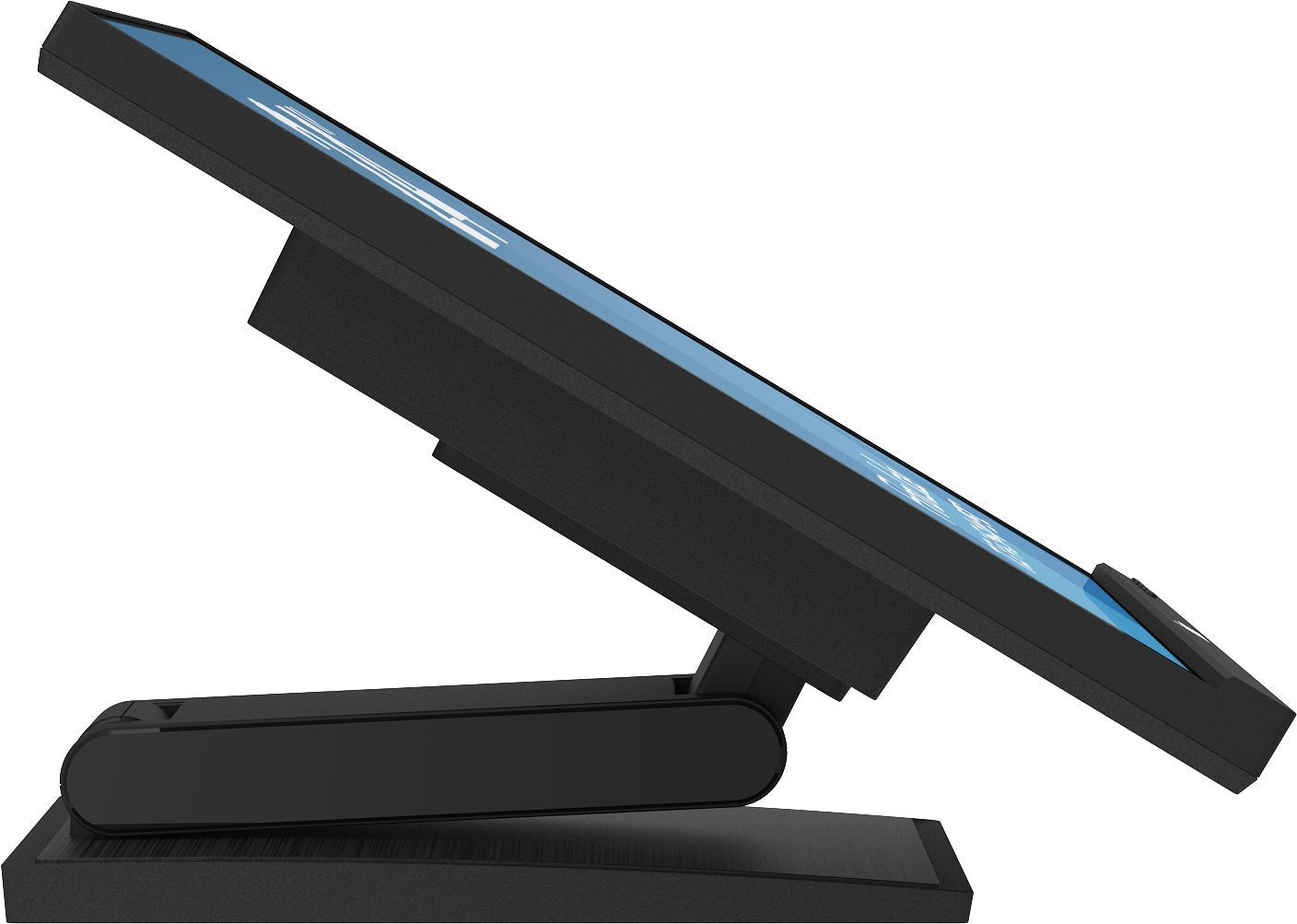

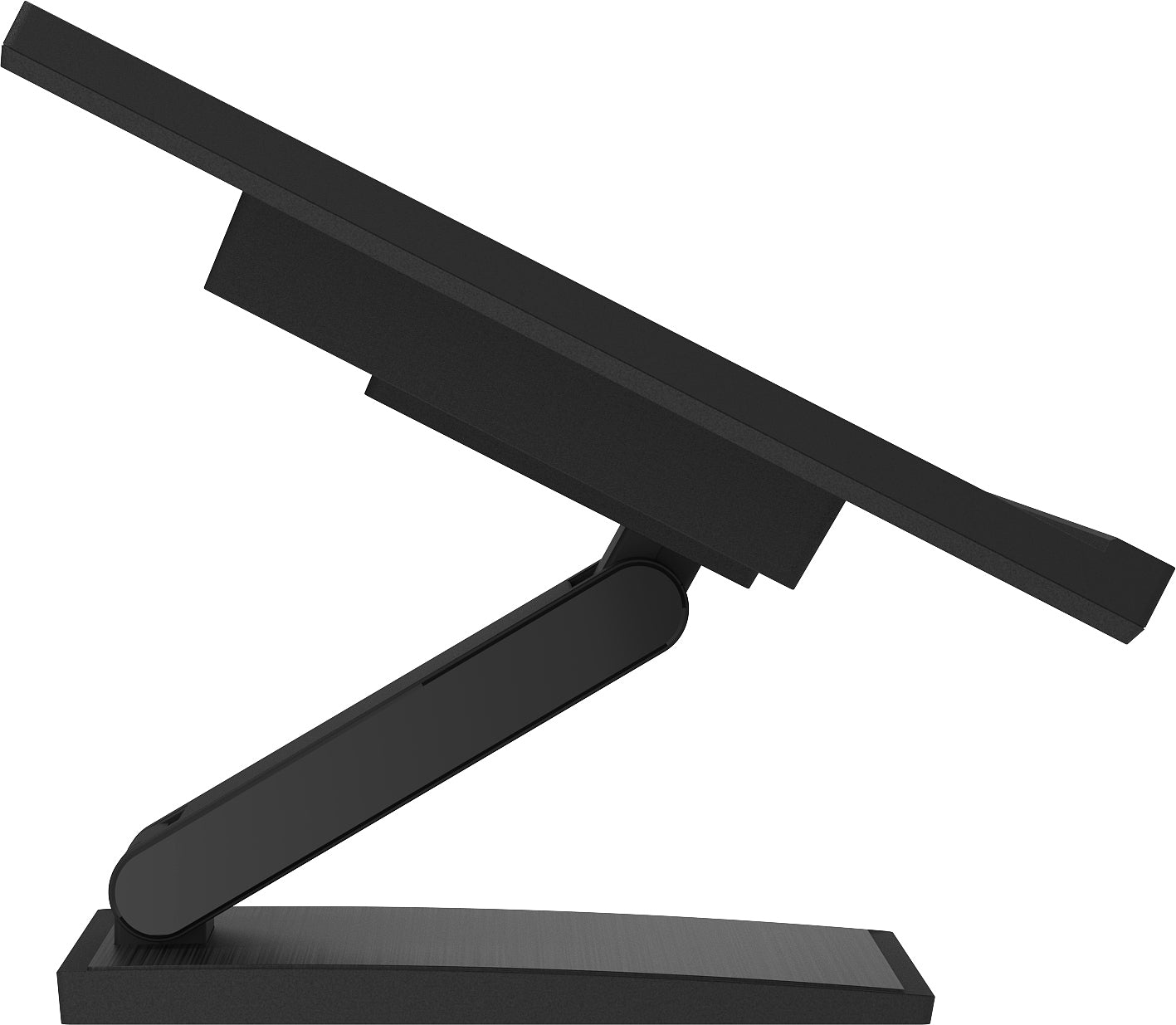

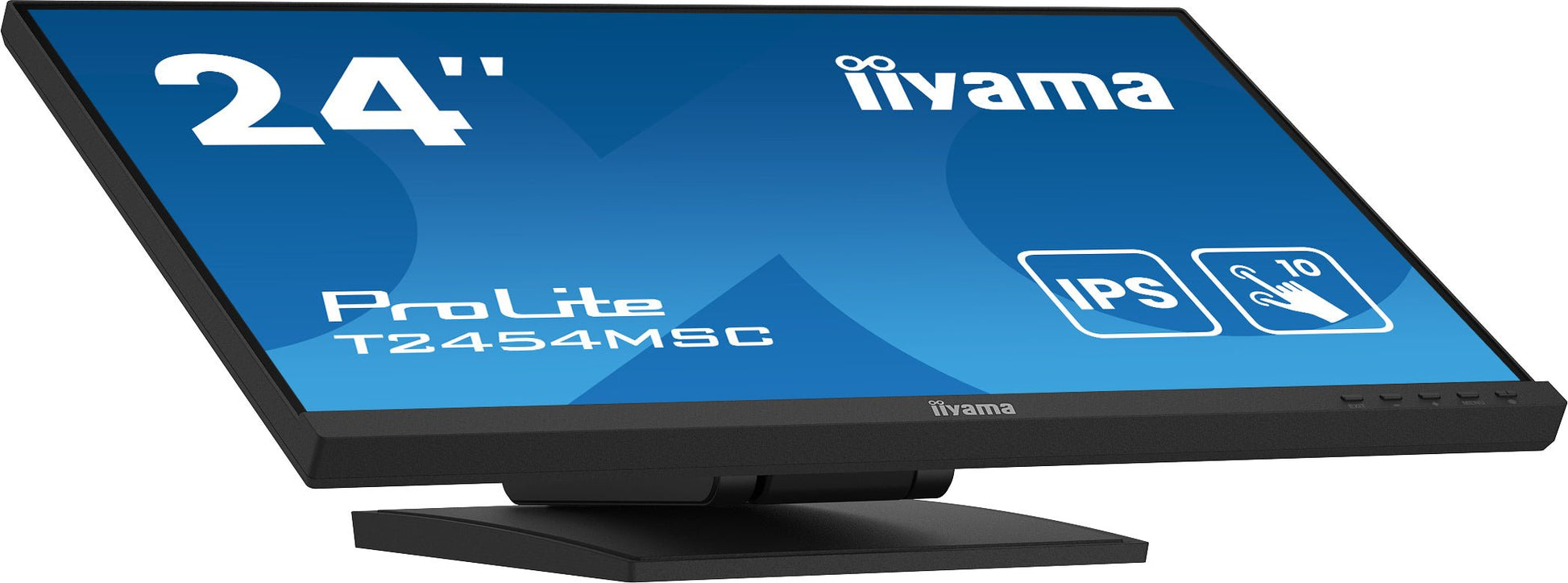

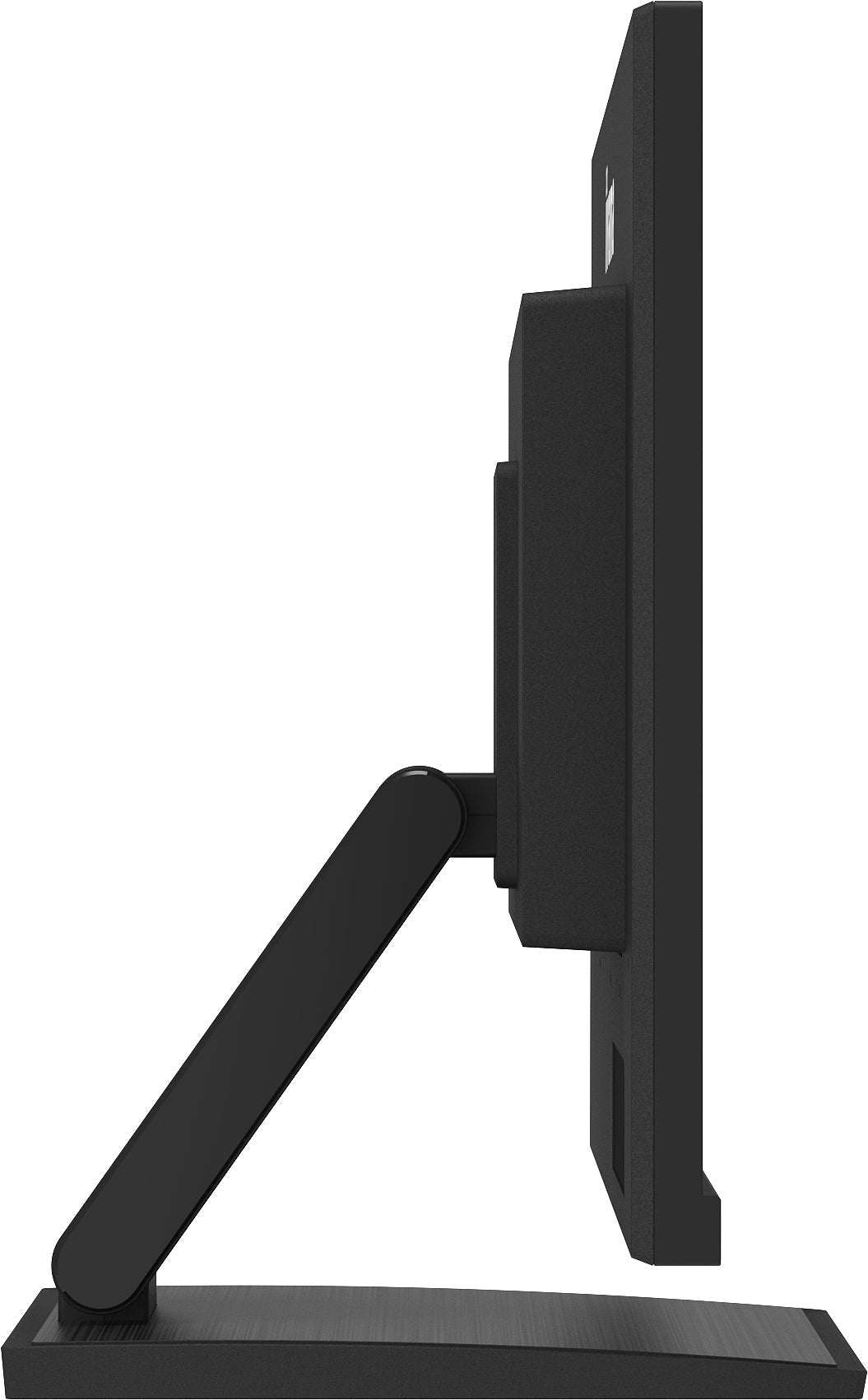

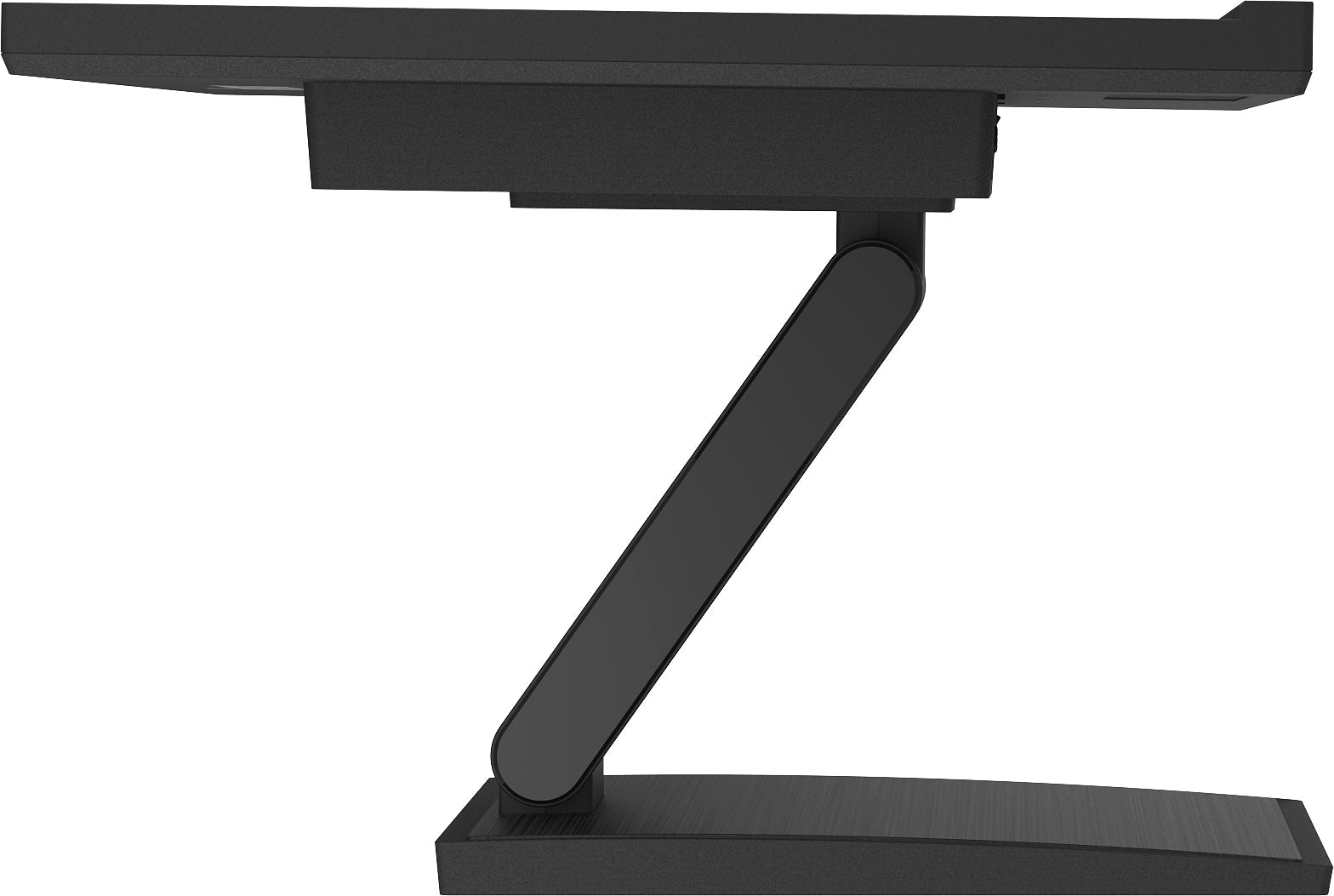

Feature: Tilt adjustment

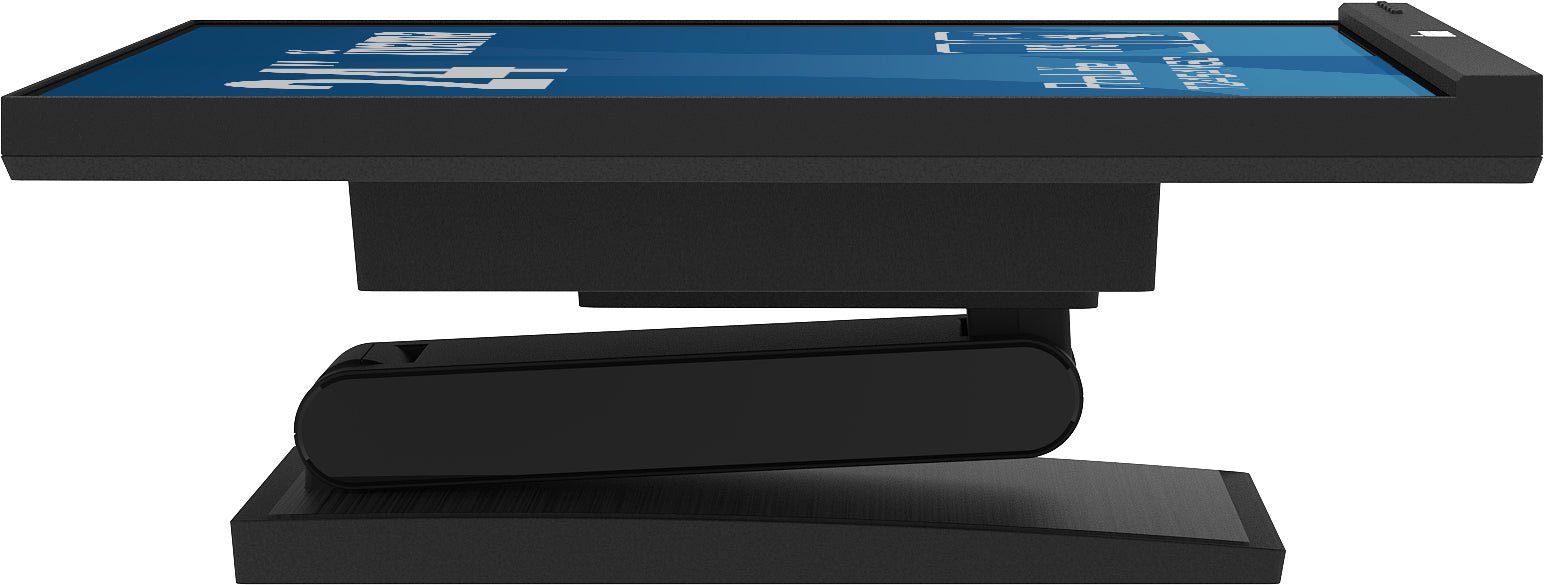

Tilt angle range: -5 - 90°

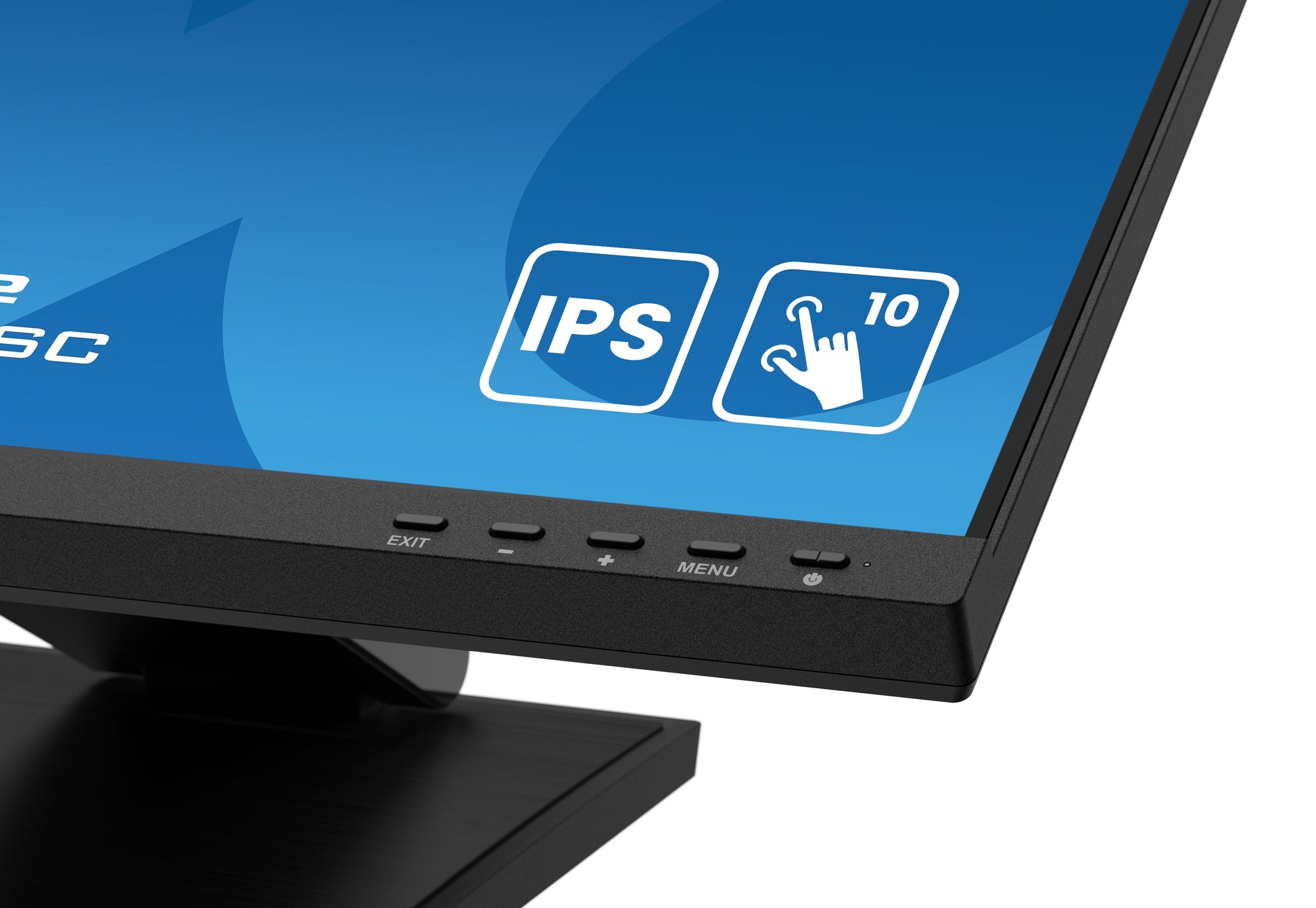

On Screen Display (OSD) languages: German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Number of OSD languages: 10
Feature: Plug and Play
Power
Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 20 kWh
Power consumption (typical): 24 W
Power consumption (standby): 0.5 W
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 366281
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
Width (with stand): 540.5 mm
Depth (with stand): 128 mm
Height (with stand): 388 mm
Weight (with stand): 5.5 kg
Width (without stand): 540.5 mm
Depth (without stand): 46.5 mm
Height (without stand): 322.5 mm
Packaging content
Cables included: AC, HDMI, USB, VGA
Feature: Quick start guide
Other features
International Protection (IP) code: IPX1
Dimensions (W x D x H) with stand: 540.5 x 128 x 388 mm
Display viewable area (HxV): 527.04 x 296.46 mm
Placement supported: Horizontal/Vertical
Feature: Full HD
Compliance certificates: RoHS
Mean time between failures (MTBF): 30000 h
Certification: CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Logistics data
Harmonized System (HS) code: 85285210

iiyama ProLite 24” P-CAP 10pt touchscreen featuring IPS panel technology and Anti Glare coating. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting, Height adjustment. Product colour: Black
iiyama




MBR CODE - T2454MSC-B2AG
EAN - 4948570125210
