LC-Power

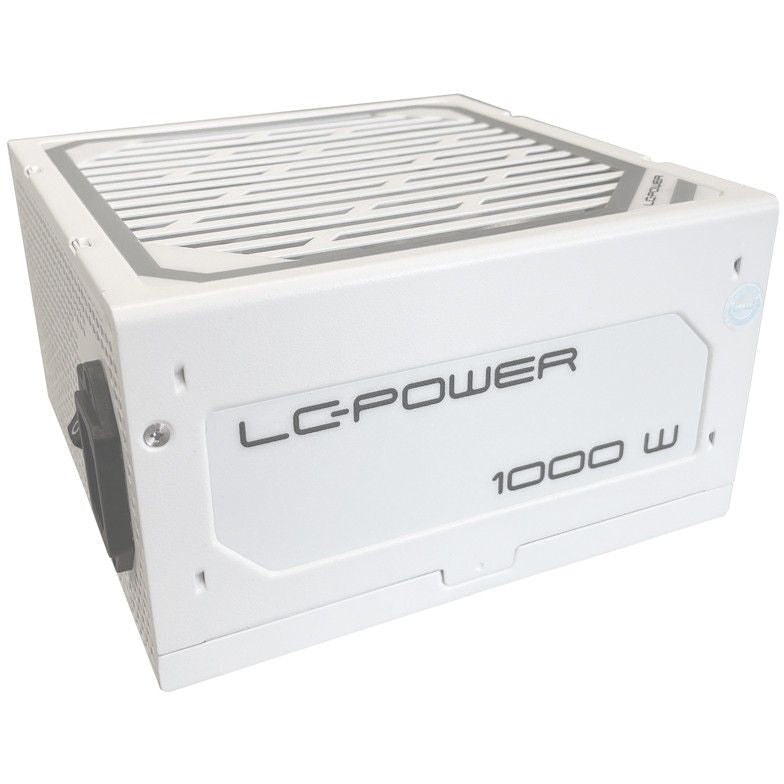

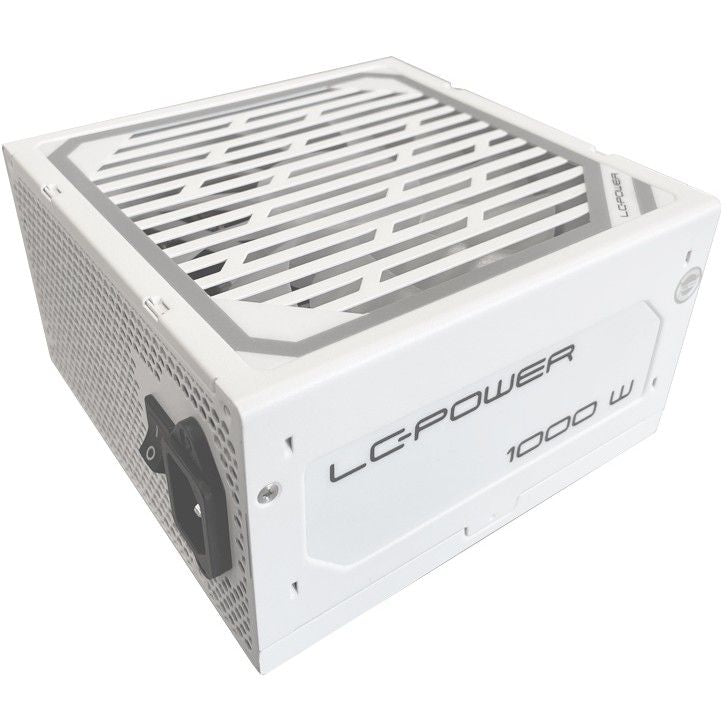

LC-Power LC1000MW V3.1 power supply unit
LC-Power LC1000MW V3.1 power supply unit
Couldn't load pickup availability
The LC1000MW V3.1 is an 80 PLUS® GOLD certified, fully modular ATX power supply, which offers your system high stability and performance.
Power
Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 15 A
Maximum input current (@220V): 8 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 999.6 W
Combined power (+5V): 100 W
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.3 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 10
Number of PATA power connectors: 5
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin): 5
Peripheral (Molex) power cable length: 350,500,650,800 mm
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm

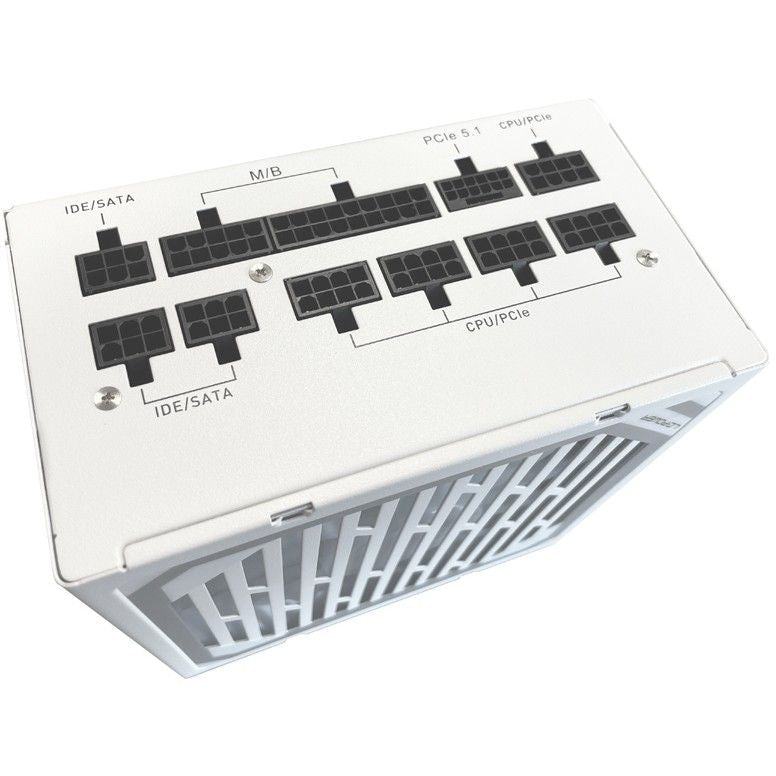

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Design
Product colour: White

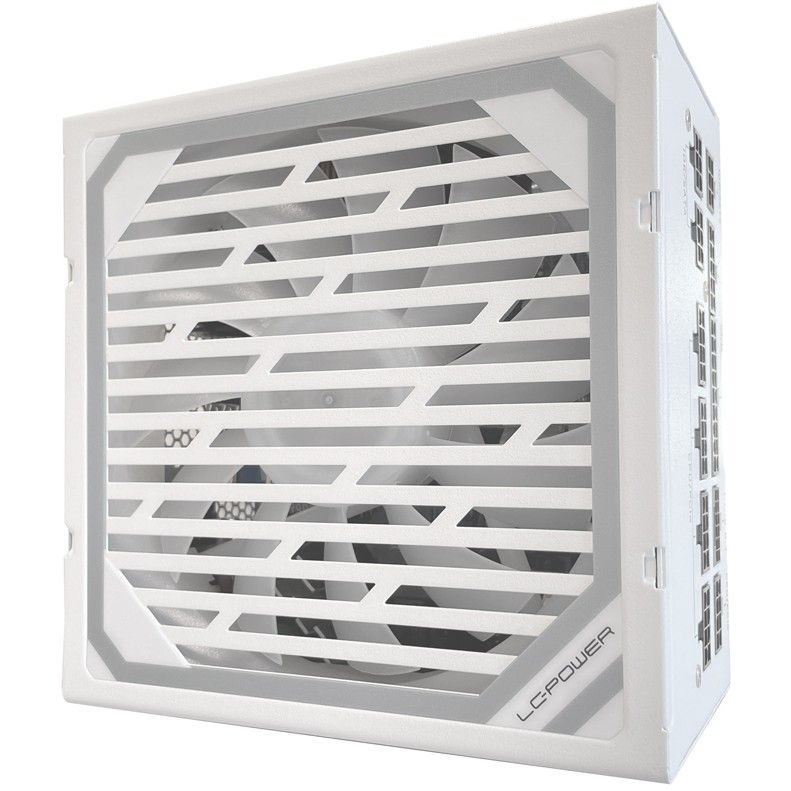

Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Weight & dimensions
Width: 150 mm
Depth: 151 mm
Height: 86 mm
Weight: 2.63 kg
Packaging data
Package width: 278 mm
Package depth: 200 mm
Package height: 115 mm
LC-Power LC1000MW V3.1. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 151 mm, Height: 86 mm
LC-Power
MBR CODE - LC1000MW V3.1
EAN - 4262443280418
