Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

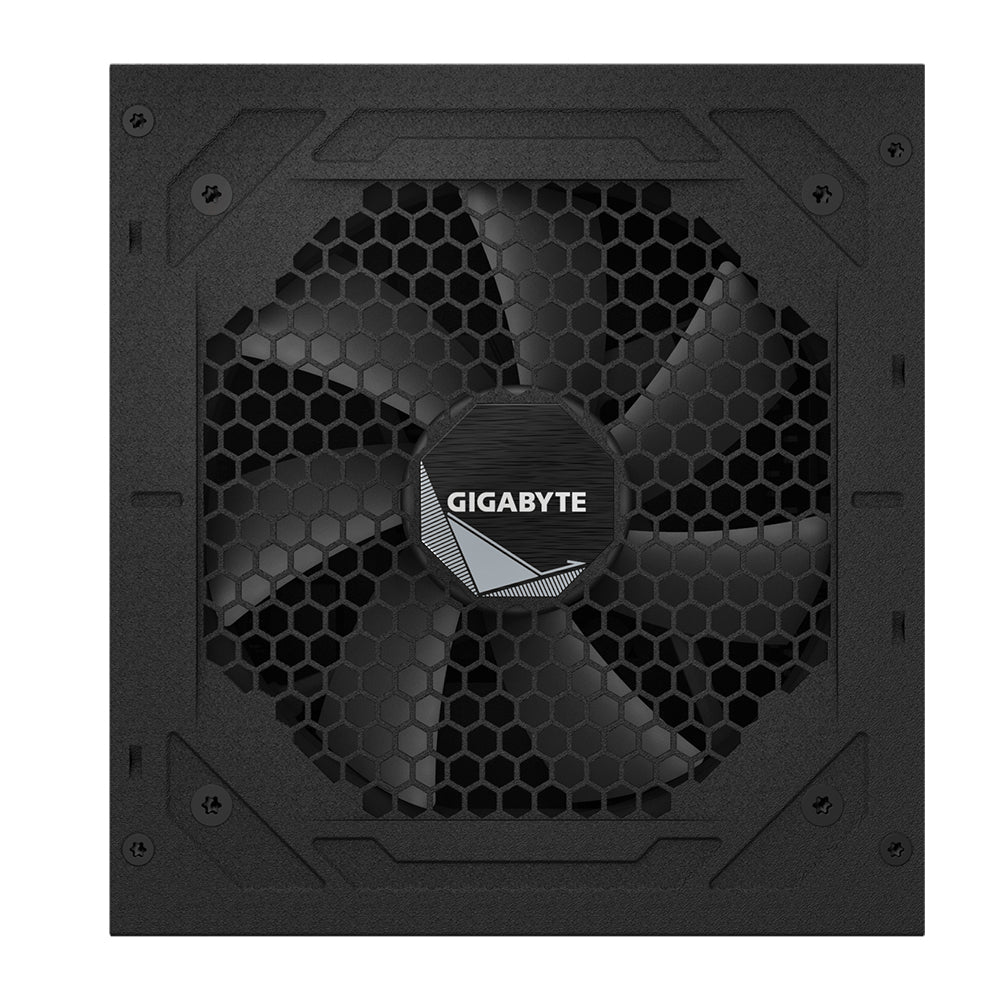

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

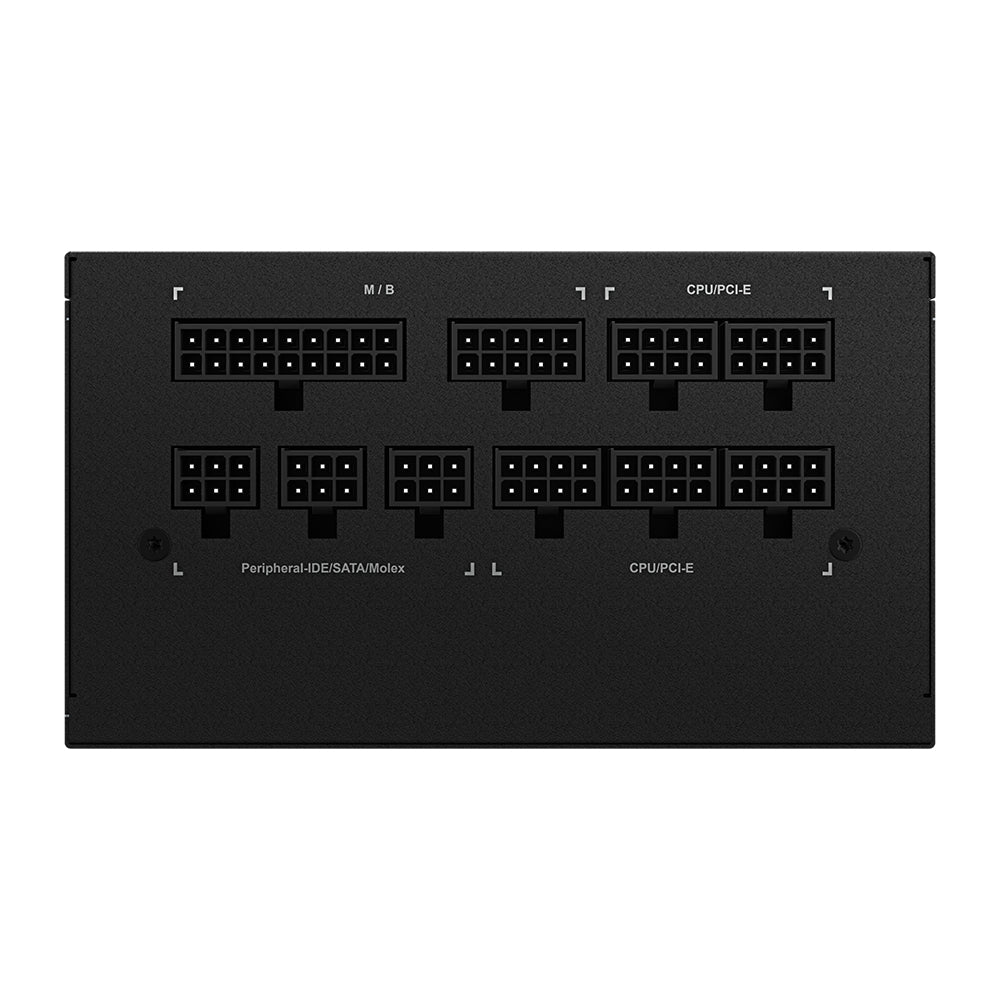

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Power
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum input current (@110V): 12 A
Maximum input current (@220V): 6 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 105 W
Combined power (+12V): 849.6 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
CPU power cable length: 60 cm
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 2
Feature: Floppy disk drive connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020

GIGABYTE UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Gigabyte




MBR CODE - GP-UD850GM
EAN - 4719331552541
