Gigabyte

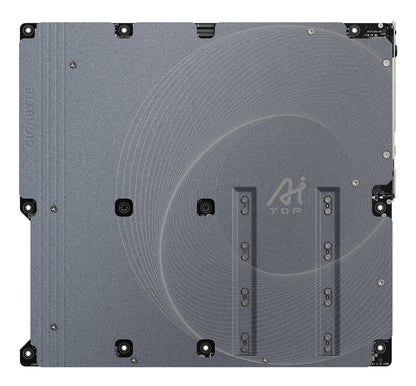

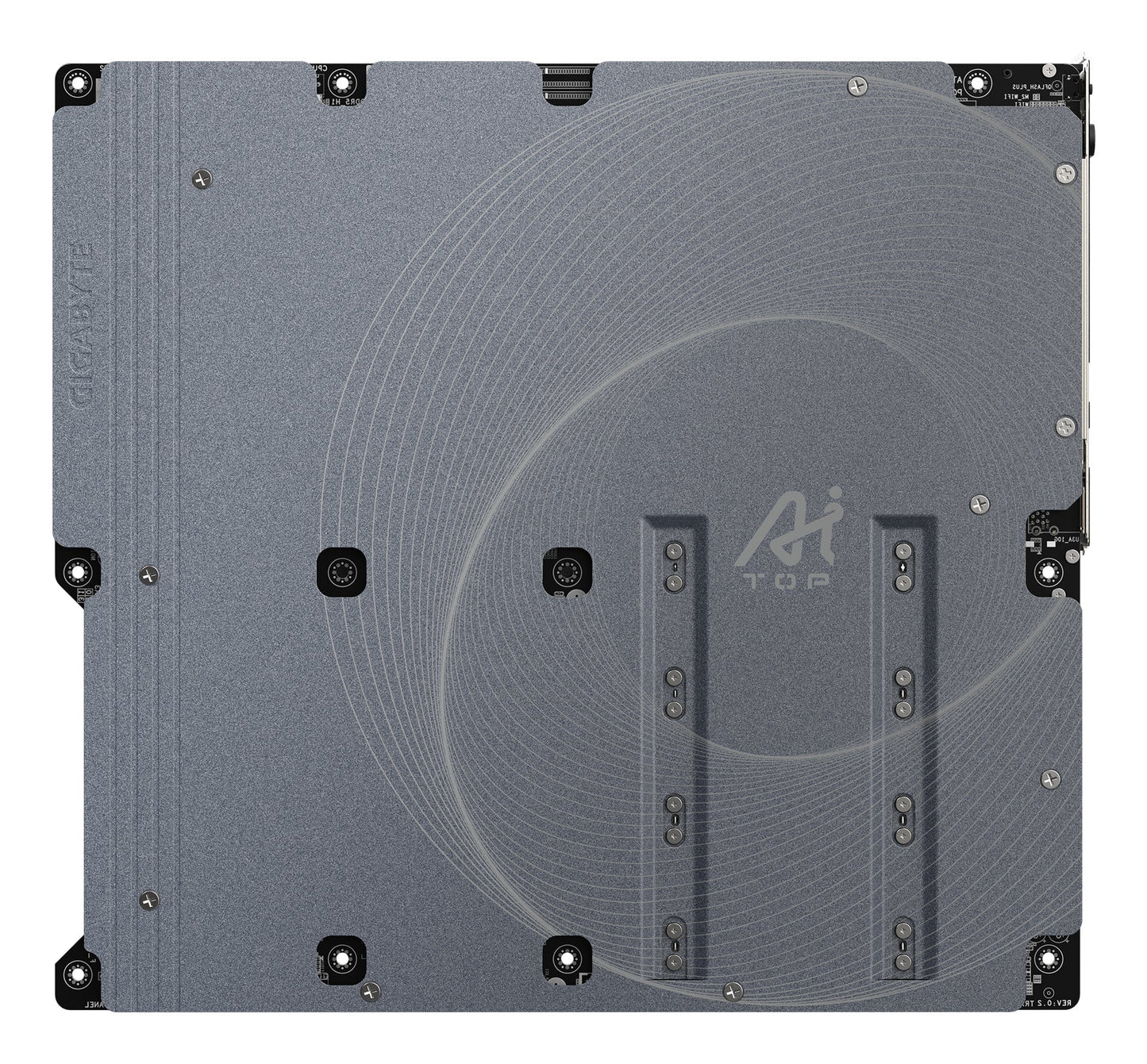

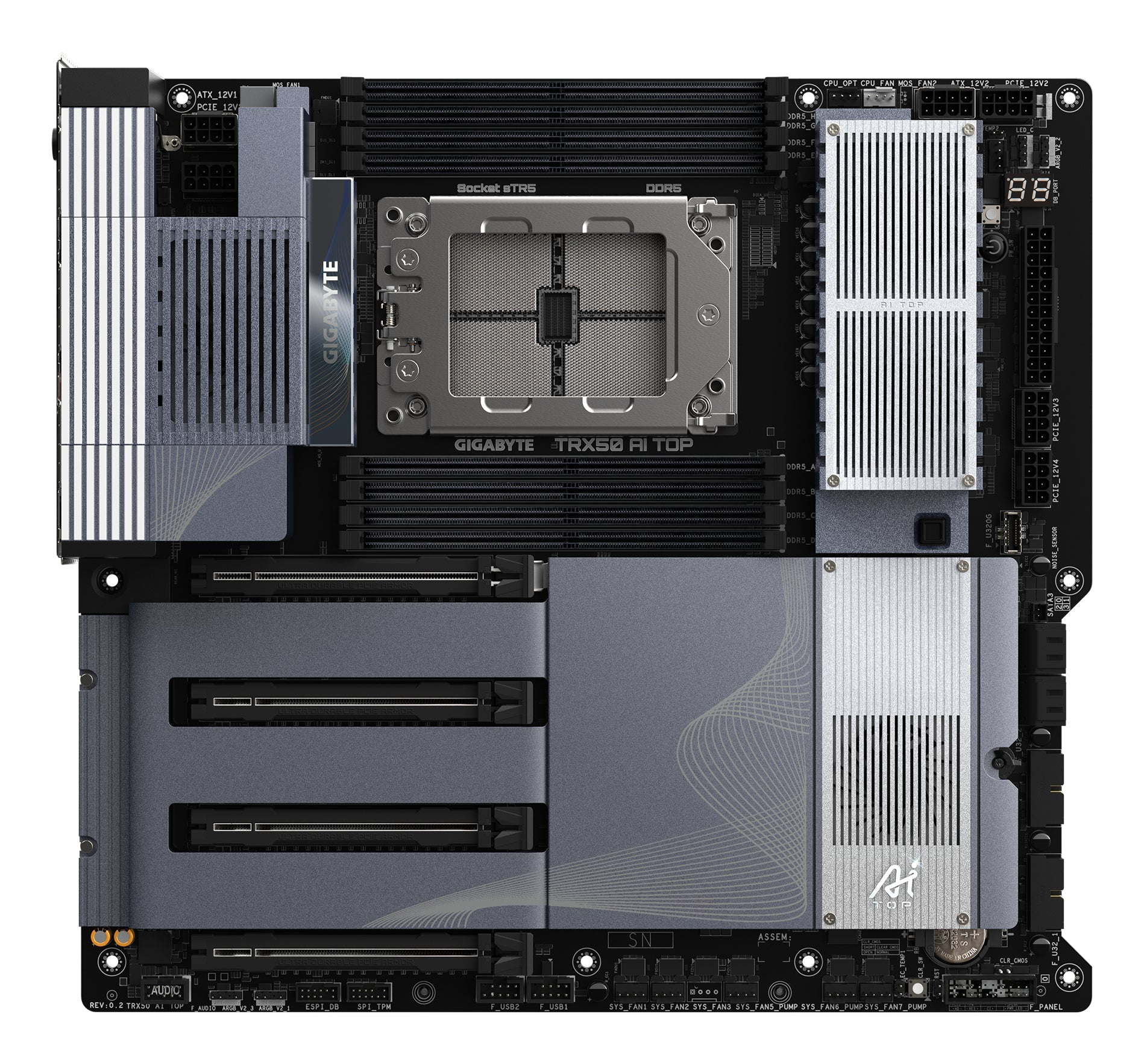

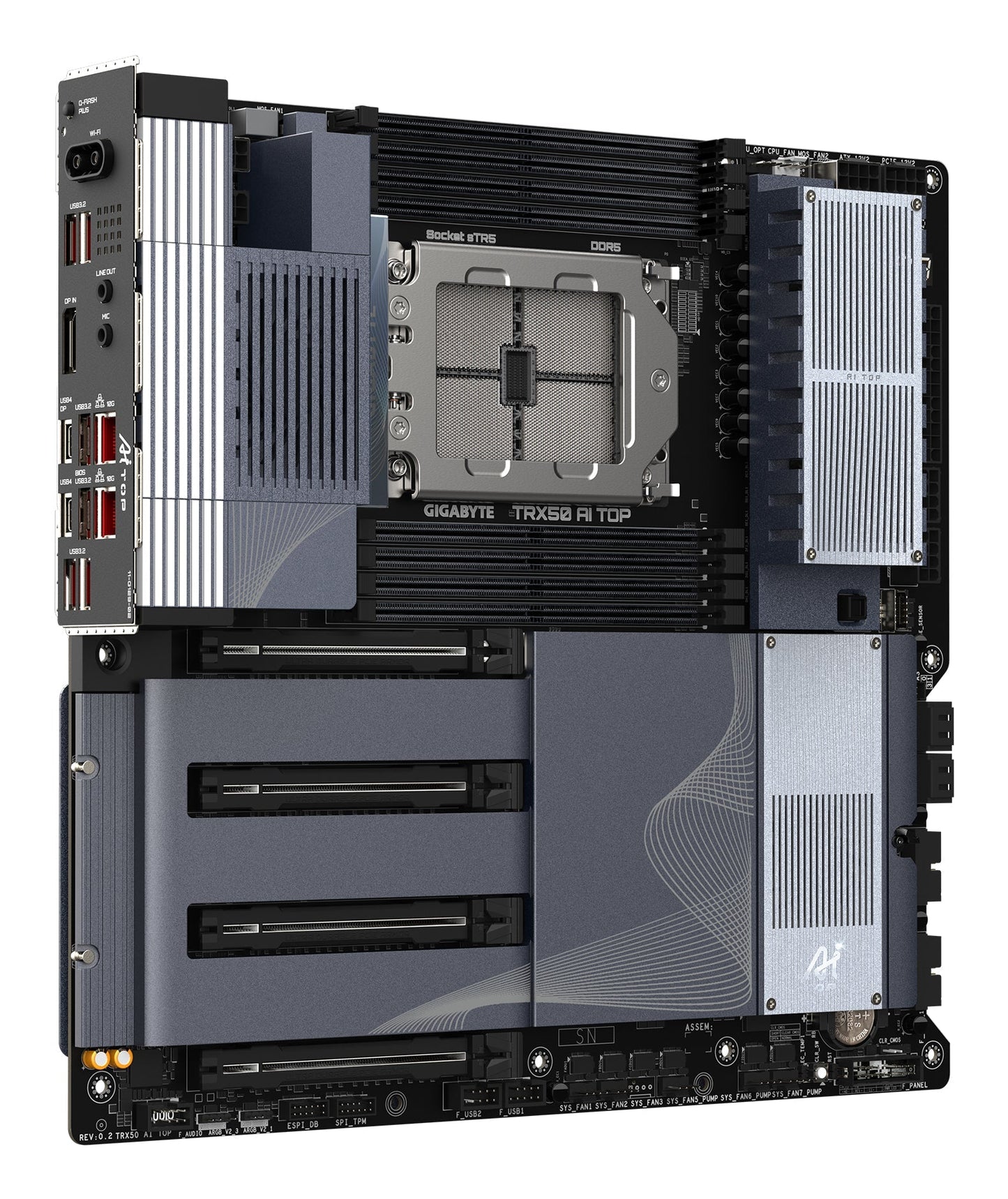

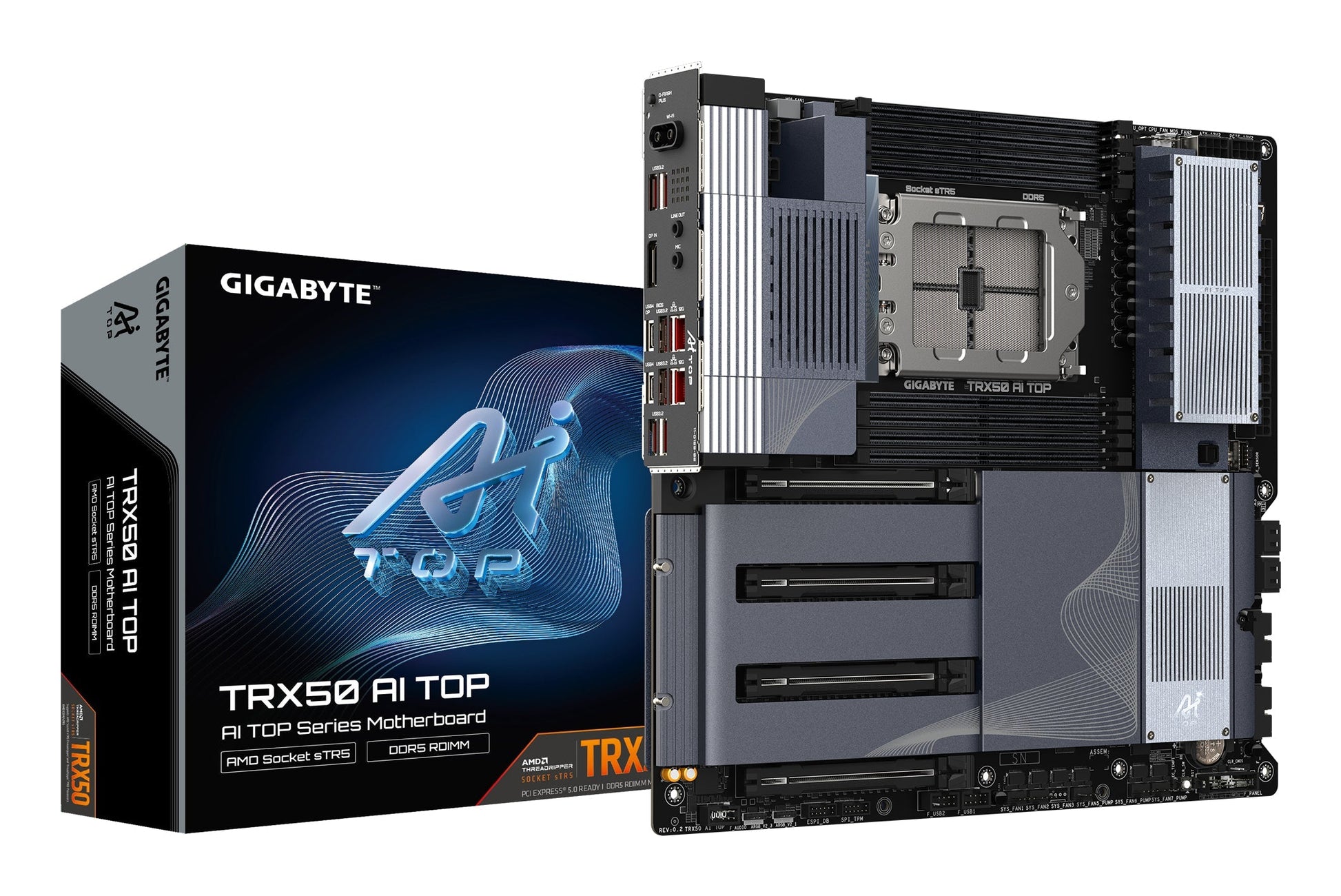

GIGABYTE TRX50 AI TOP-2B motherboard
GIGABYTE TRX50 AI TOP-2B motherboard
Impossibile caricare la disponibilità di ritiro
Processor manufacturer | AMD |
Processor socket | Socket sTR5 |
Compatible processor series | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 8 |
Memory slots type | DIMM |
Memory channels | Quad-channel |
ECC сompatibility | ECC |
Supported memory clock speed (max) | 5200 MHz |
Maximum internal memory | 2 TB |
Unbuffered memory | No |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
Number of HDDs supported | 4 |
Number of storage drives supported | 8 |
RAID support | Yes |
RAID levels | 0, 1, 10 |
Parallel processing technology support | Not supported |
HDCP | No |
DirectX version | 12.0 |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2x2 connectors | 1 |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
Front panel connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
Number of CPU fan connectors | 2 |
Number of chassis fan connectors | 6 |
EPS power connector (8-pin) | Yes |
Number of EPS power connectors (8-pin) | 2 |
TPM connector | Yes |
12V power connector | Yes |
Number of water pump connectors | 5 |
Number of temperature sensor headers | 2 |
Number of noise detection headers | 1 |
RGB LED pin header | Yes |
Number of RGB LED pin headers | 4 |

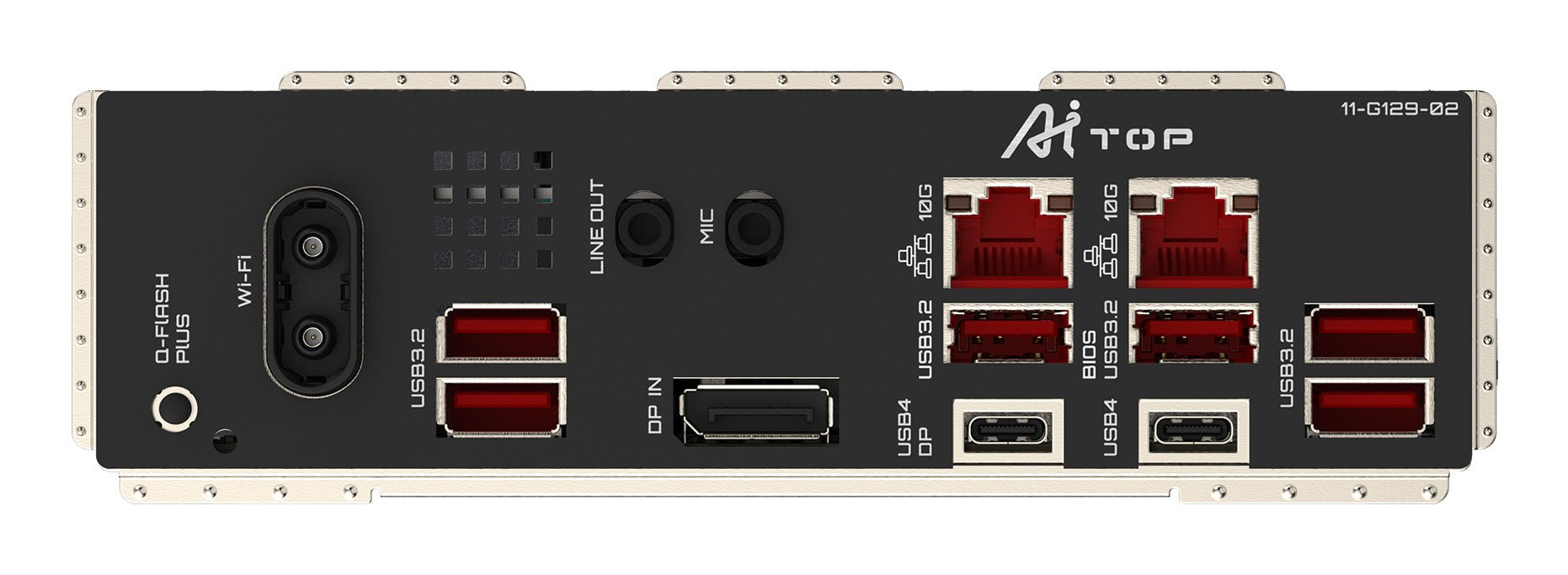

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
USB4 Gen 3x2 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 2 |
DisplayPorts quantity | 1 |
Headphone outputs | 1 |
Line-in | Yes |
WiFi-AP antenna jack | 2 |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
LAN controller | Marvell AQtion AQC113C |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
WLAN controller model | Qualcomm QCNCM865 |
Bluetooth | Yes |
Bluetooth version | 5.3 |
Motherboard chipset | AMD TRX50 |
Audio output channels | 2.0 channels |
Product colour | Black |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Component for | PC |
Motherboard form factor | Extended ATX |
Motherboard chipset family | AMD |
Cooling type | Active |
Power source type | ATX |
Linux operating systems supported | Ubuntu 24.04 LTS |
Windows operating systems supported | Windows 11 x64 |
PCI Express x16 (Gen 5.x) slots | 4 |
Number of M.2 (M) slots | 4 |
1st M.2 largest key size | 2280 |
1st M.2 highest PCI Express generation | 5.0 |
2nd M.2 largest key size | 2280 |
2nd M.2 highest PCI Express generation | 5.0 |
3rd M.2 largest key size | 2280 |
3rd M.2 highest PCI Express generation | 5.0 |
4th M.2 largest key size | 2280 |
4th M.2 highest PCI Express generation | 5.0 |
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | Yes |
Clear CMOS button | Yes |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Country of origin | China |
Products per shipping (inner) case | 1 pc(s) |
Battery weight | 3 g |
Lithium weight per battery | 0.07 g |
Number of battery cells | 1 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Battery type | CR2032 |
Package width | 379 mm |
Package depth | 397 mm |
Package height | 105 mm |
Package weight | 6.47 kg |
Width | 305 mm |
Depth | 330 mm |
Height | 35 mm |
Batteries included | Yes |
Antenna included | Yes |
Screws included | Yes |
Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Warranty period | 3 year(s) |
