FSP

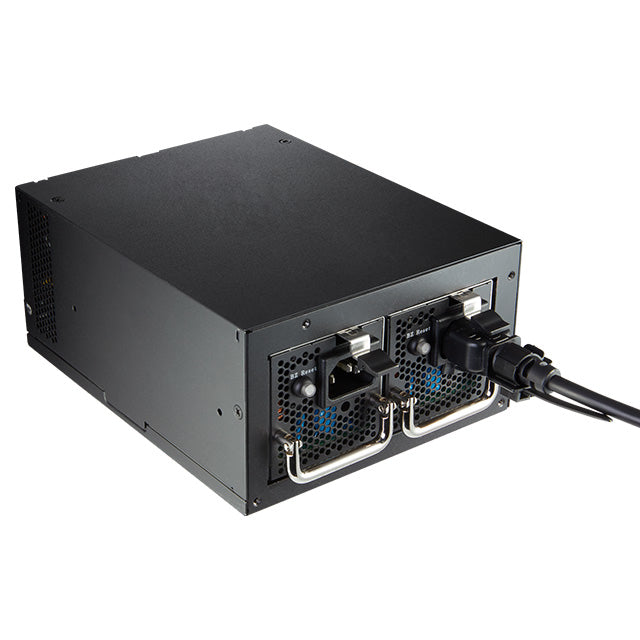

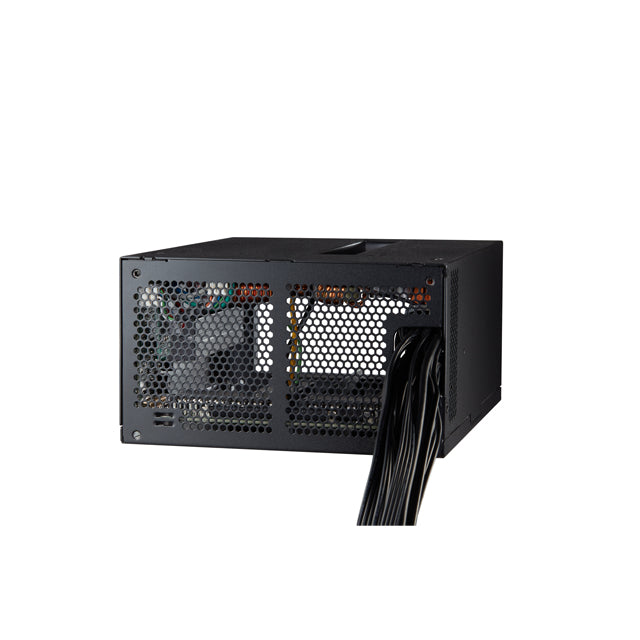

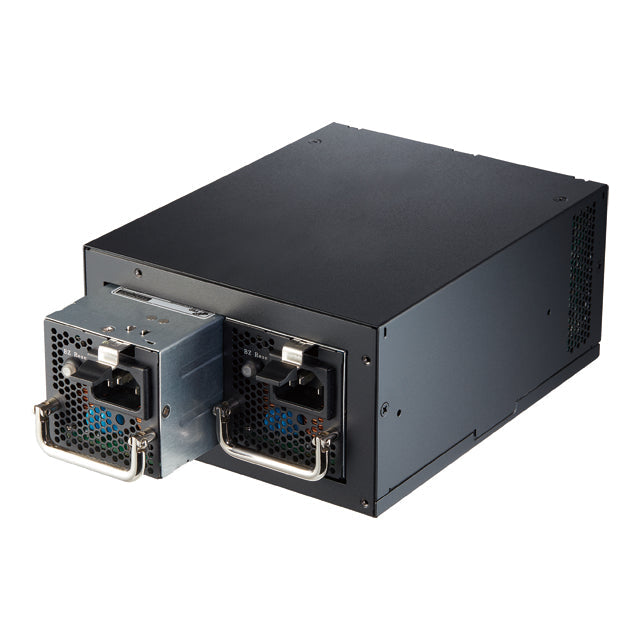

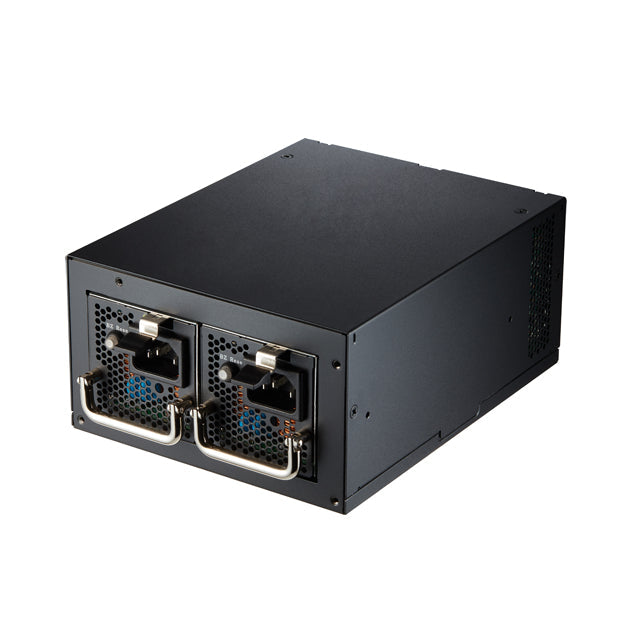

FSP FSP930-20REB power supply unit
FSP FSP930-20REB power supply unit
Impossibile caricare la disponibilità di ritiro
Power
Total power: 930 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10-6 A
Max output current (+12V): 77.5 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
Bearing technology: Ball bearing
Design
Product colour: Black
Cooling type: Active
Fan diameter: 4 cm
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 86 mm
Depth: 150 mm
Height: 190 mm
FSP FSP930-20REB. Total power: 930 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 4 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
FSP
MBR CODE - 9PA9300201
EAN - 4713224524837
| Total power | 930 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-6 A |
| Max output current (+12V) | 77.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Ball bearing |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 86 mm |
| Depth | 150 mm |
| Height | 190 mm |
