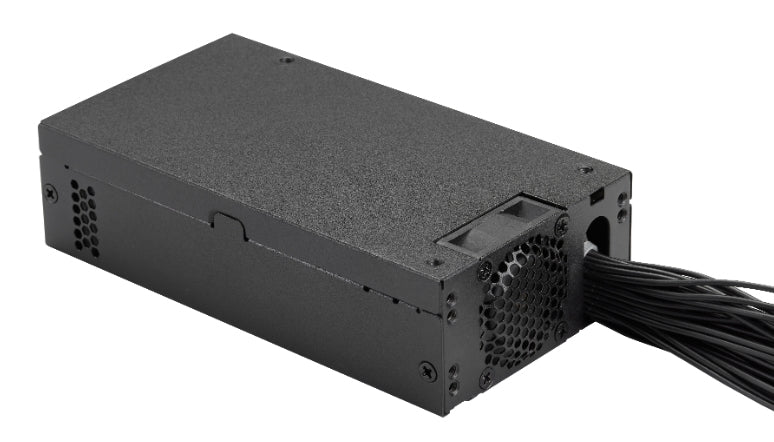

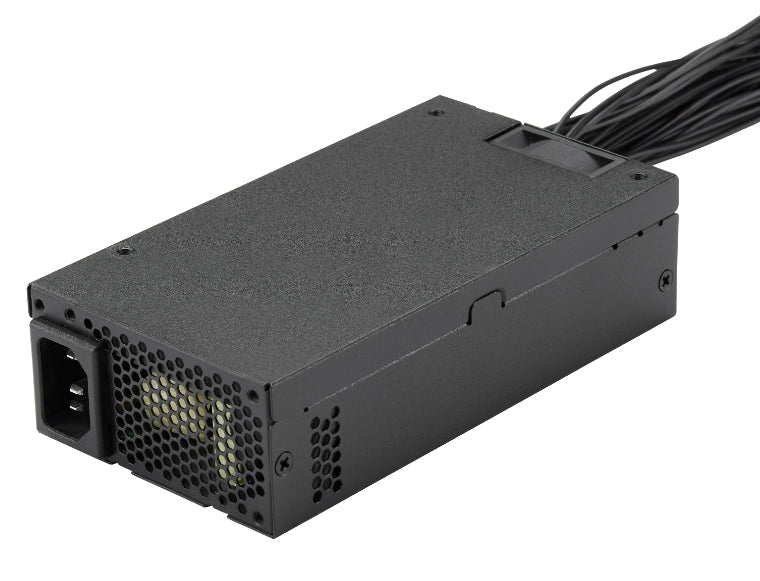

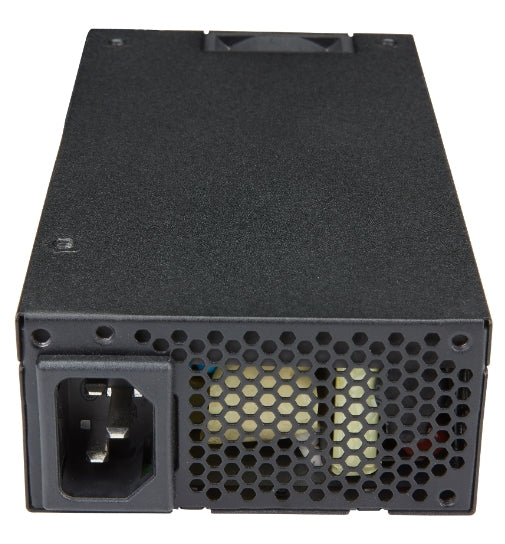

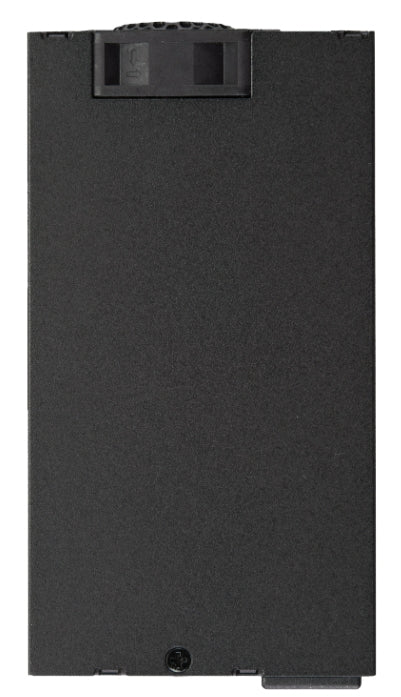

FSP FlexGURU PRO 500W power supply unit
FSP FlexGURU PRO 500W power supply unit
Impossibile caricare la disponibilità di ritiro
The FlexGURU PRO series offers an inner 40mm fan design, which reduces noise and allows for maximum cooling at all times.
All Black Round Cables
The all black round cables offers your system a more sophisticated look compared to other entry-level power supplies.
90% Efficiency Conversion
The efficiency of your power supply is very important since it directly affects your system's performance. The FlexGURU PRO 500W has a guaranteed typical efficiency of 90% and offers a high conversion power to power your system.
Multifunctional Design
The FlexGURU series comes with the included 1U bracket which turns the FlexGURU PRO 500W into a 1U IPC power supply.
Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), full guardian circuit protection to keep your hardware safe.
Japanese Electrolytic Capacitors
The FlexGURU series utilizes main Japanese Electrolytic Capacitors to offer stable outputs and long-term reliability.
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8-4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+5V) | 90 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 41 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | NAS/storage server |
| Power supply unit (PSU) form factor | 1U |
| Bearing technology | Ball bearing |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 40.5 mm |
| Depth | 150 mm |
| Height | 81.5 mm |
