Gigabyte

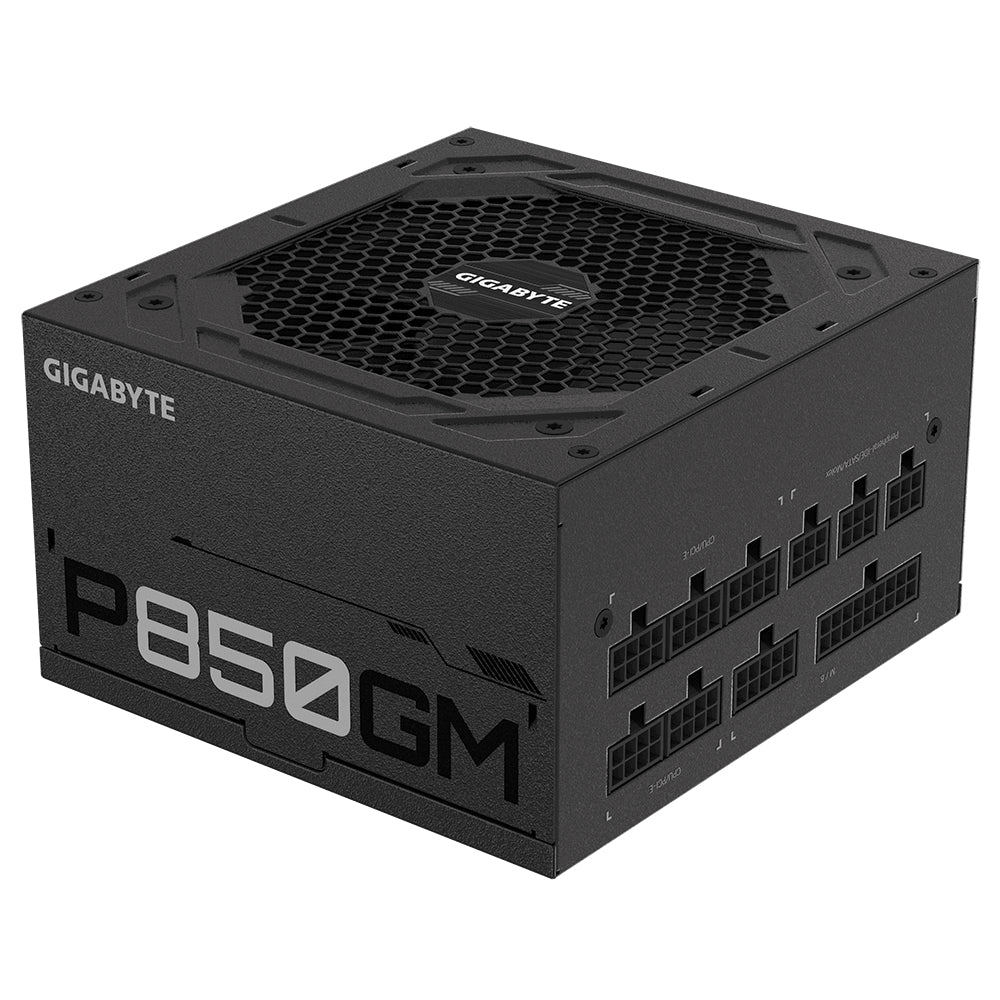

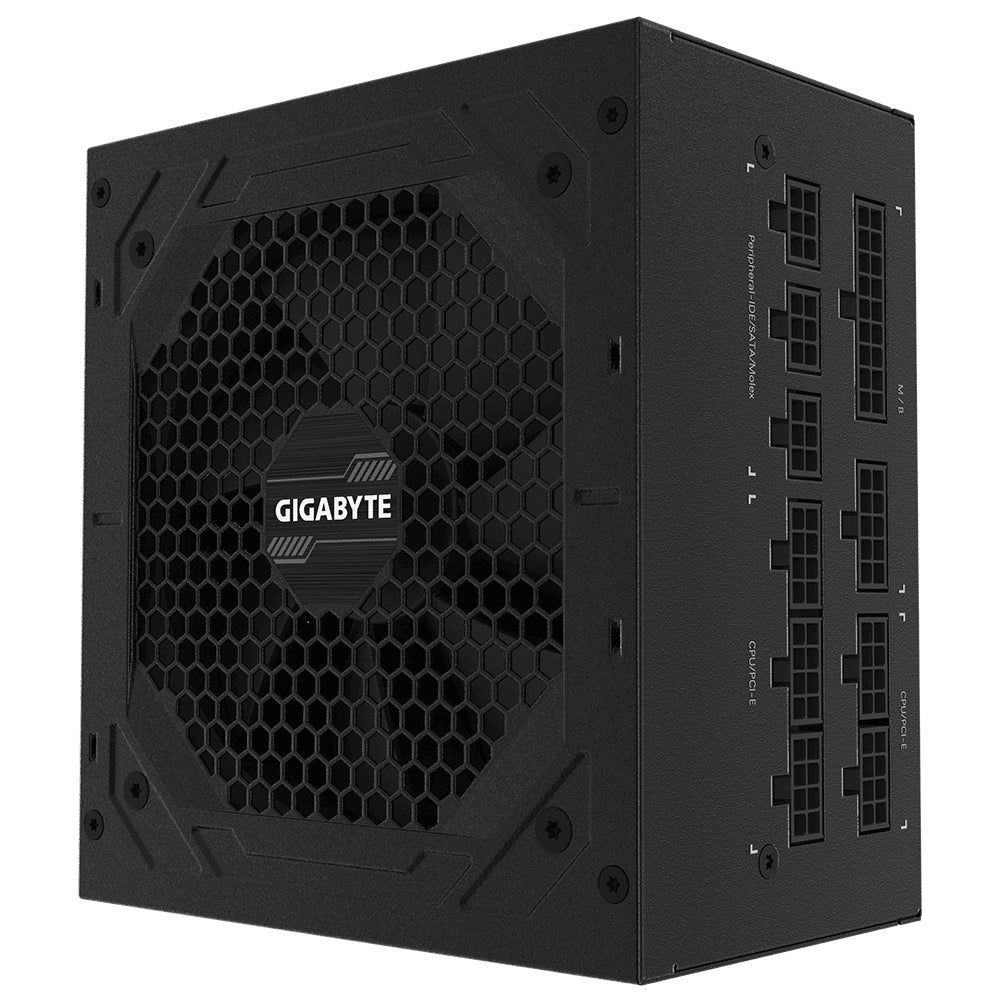

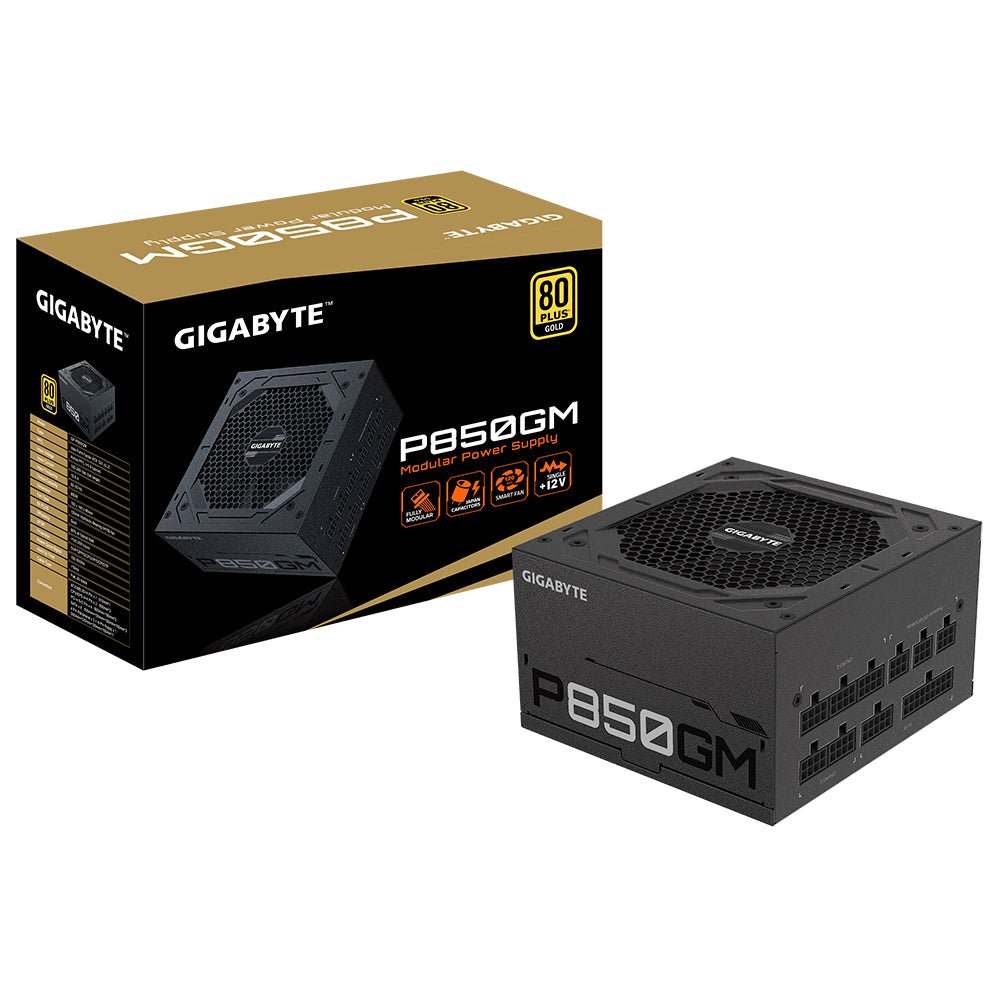

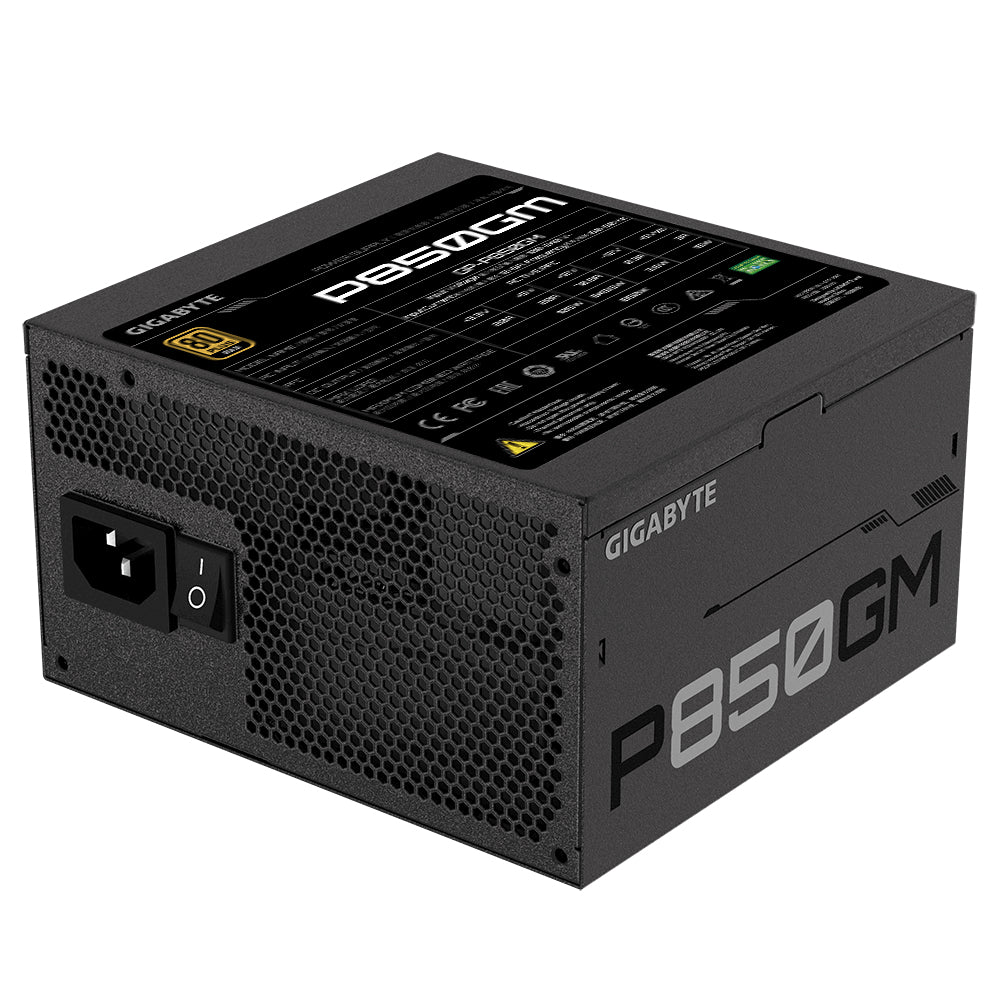

GIGABYTE P850GM power supply unit

GIGABYTE P850GM power supply unit

SKU: 119764
Gnáthphraghas €134,05
Gnáthphraghas Praghas díola €134,05
Díol Díolta amach
CBL san áireamh Ríomhtar an loingseoireacht ag an tseiceáil amach.

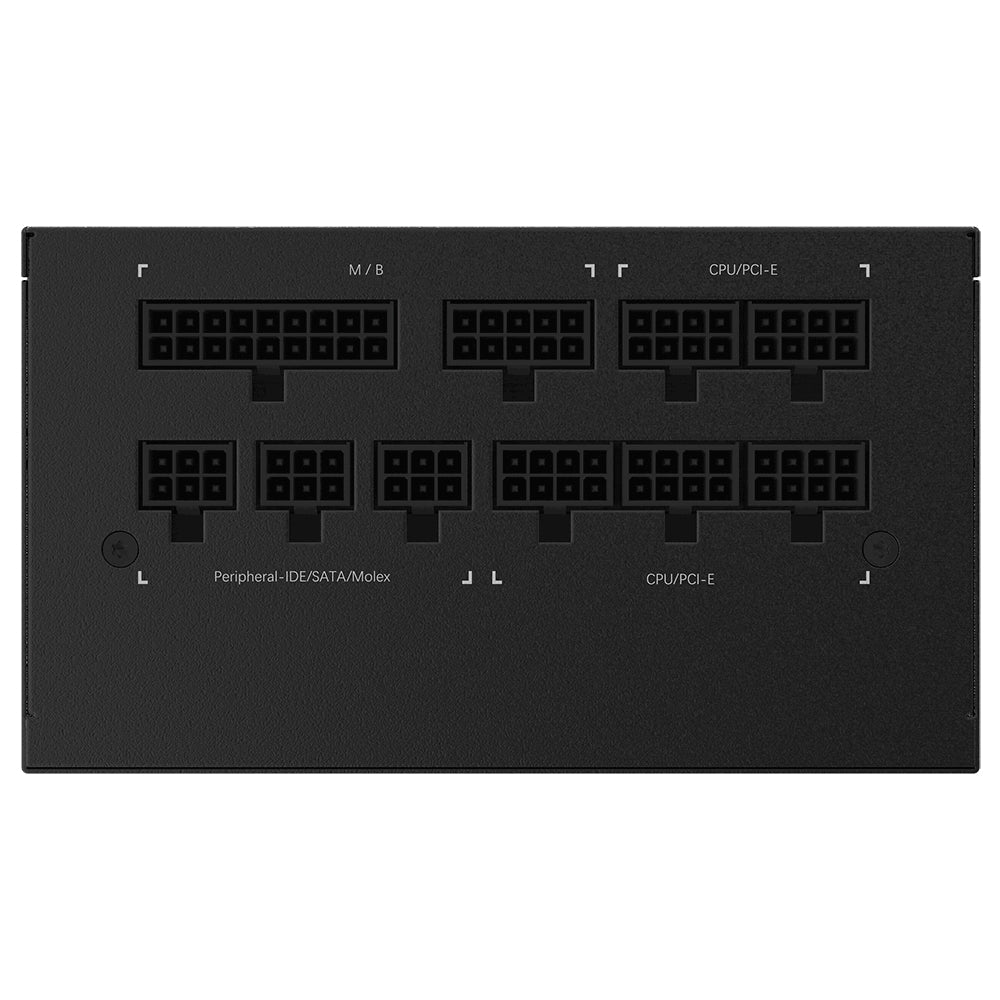

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

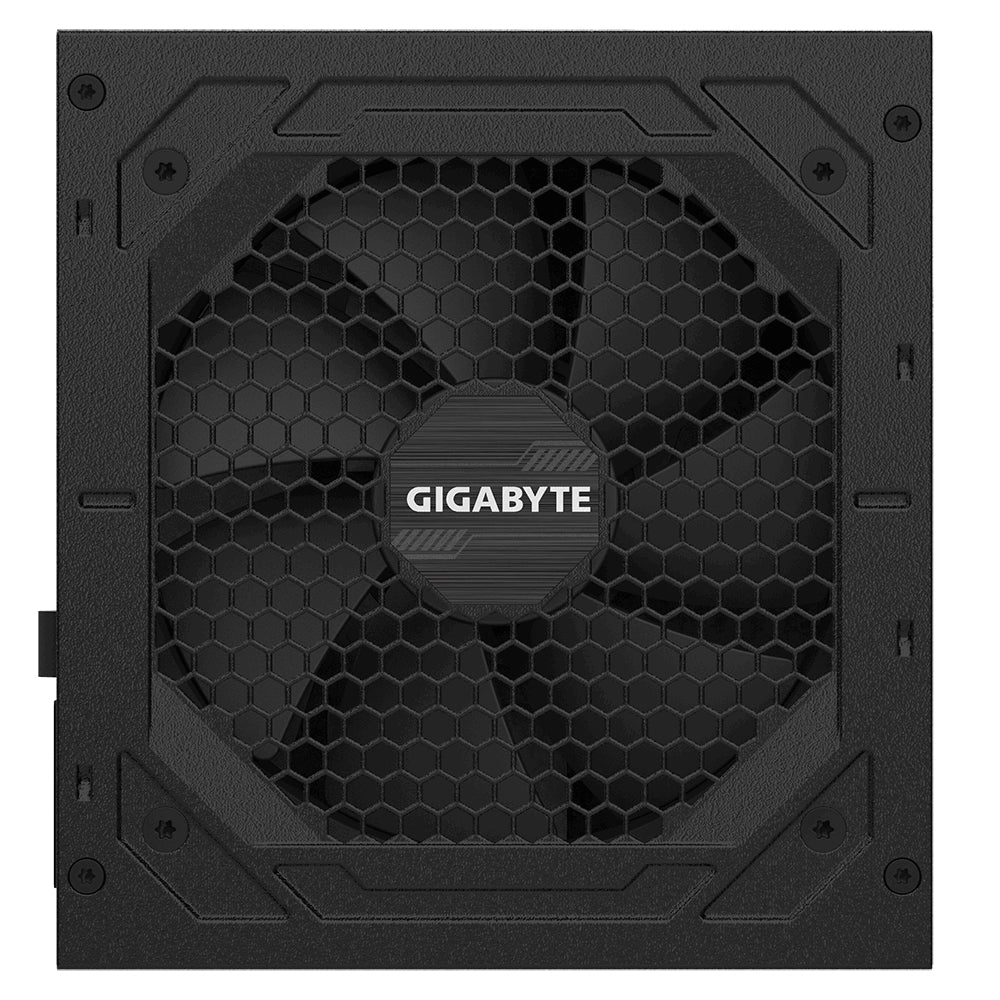

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

DIMENSIONS
Compact size to fit any small chassis.

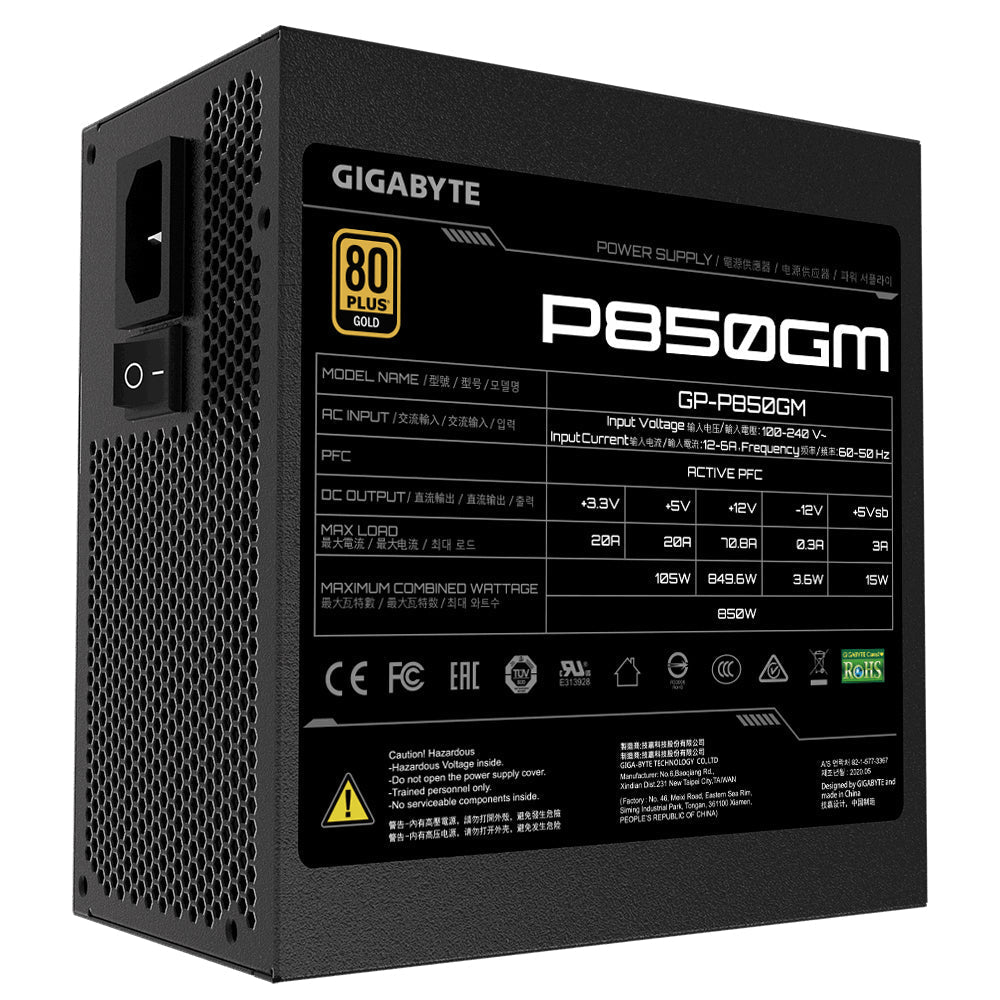

Total power 850 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Maximum input current (@110V) 12 A
Maximum input current (@220V) 6 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 846 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 70.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Hold time 16 ms
Efficiency 90%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 61 cm
Number of SATA power connectors 8
SATA power cable length 600,750,900 mm
Peripheral (Molex) power connectors (4-pin) 3
PCI Express power connectors (6+2 pin) 4
PCI Express power cable length 75 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 60 cm
ATX power connector (20+4 pin) Yes
Floppy drive power connector 2
Floppy disk drive connector Yes
Floppy disk drive cable length 89 cm
Cabling type Fully-Modular
80 PLUS certification 80 PLUS Gold
Purpose PC
Power supply unit (PSU) form factor ATX
ATX version 2.31
Mean time between failures (MTBF) 100000 h
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan location Top
On/off switch Yes
Width 150 mm
Depth 140 mm
Height 86 mm
Package type Box
Harmonized System (HS) code 84733020
Féach na sonraí iomlána
