ASUS

ASUS Q670EA-IM-A

ASUS Q670EA-IM-A

SKU: 21246863
Gnáthphraghas €531,19
Gnáthphraghas Praghas díola €531,19
Díol Díolta amach
CBL san áireamh Ríomhtar an loingseoireacht ag an tseiceáil amach.

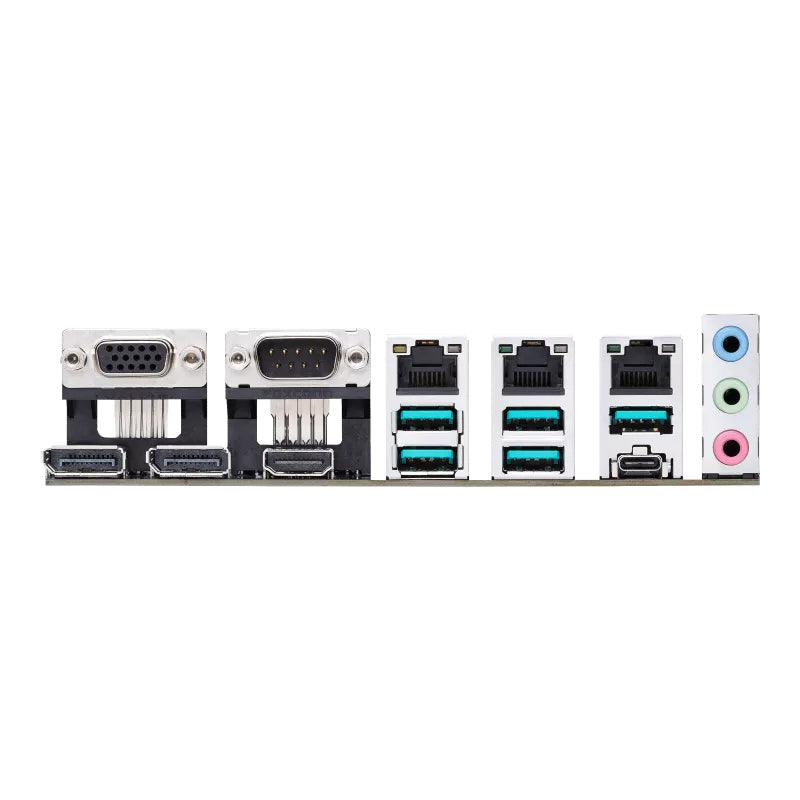

Q670E ATX motherboard, LGA1700 Socket for 14th/13th/12th Gen Intel CPU, 125W TDP, 4*U-DIMM, 3*Lan, 2*PCIe x16 slots, 2*PCI, VGA, HDMI, DP++, 2*M.2 slot, 6*COM, 7*SATA, USB 3.2 Gen 2, USB Type C

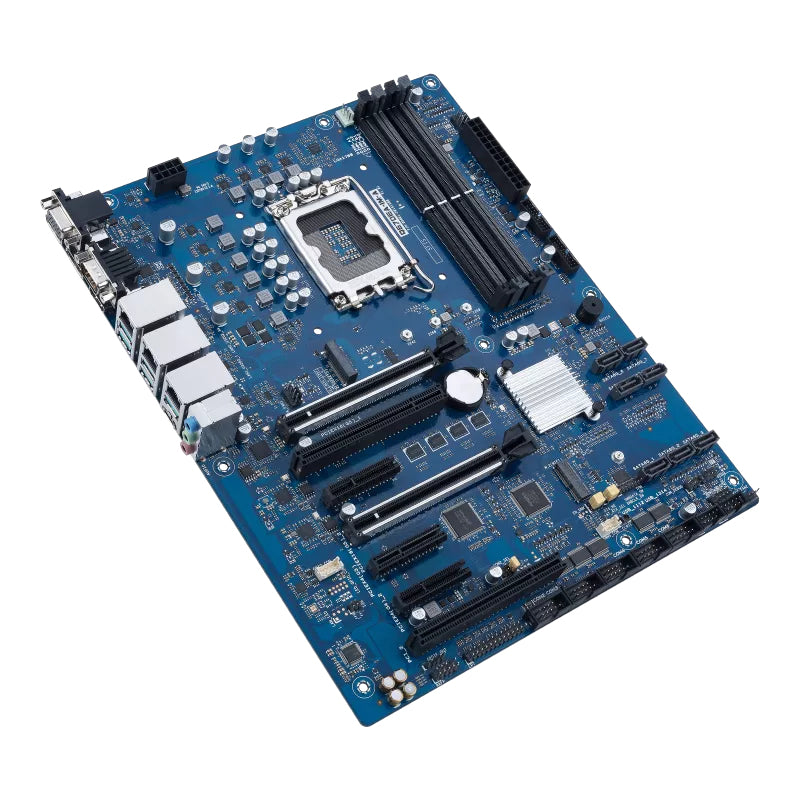

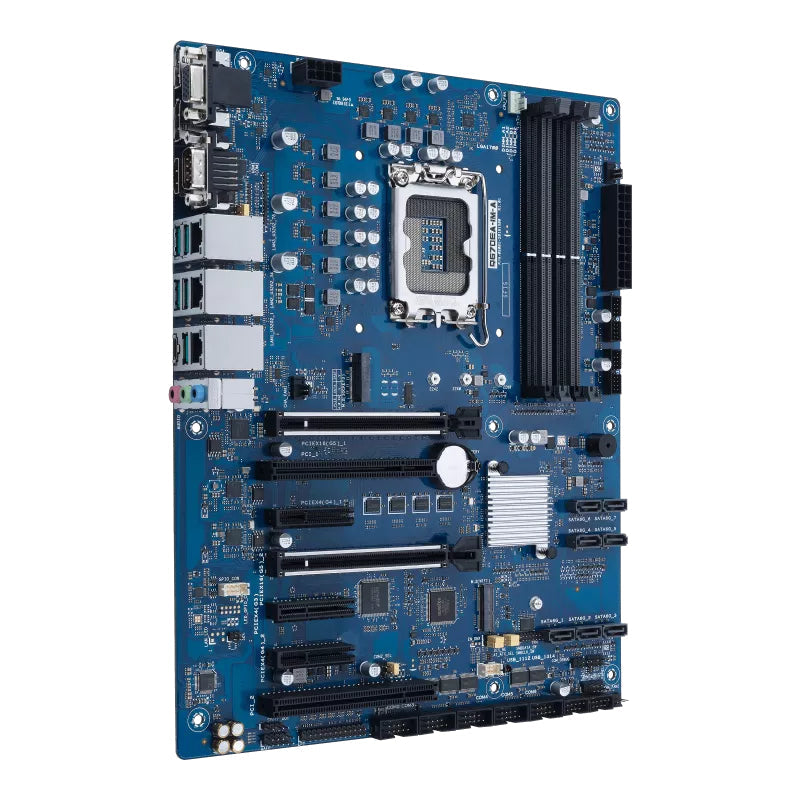

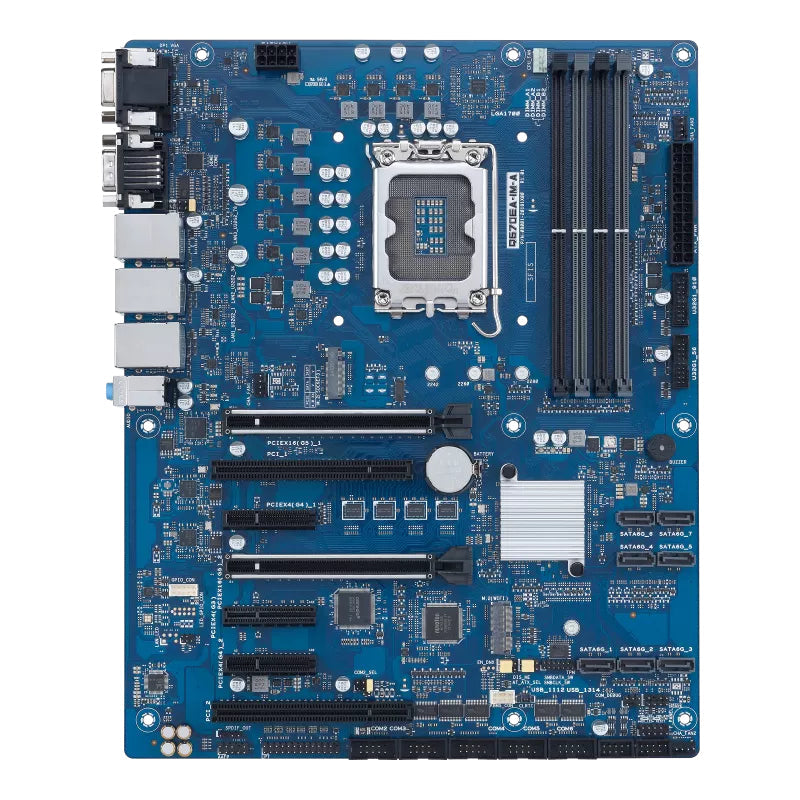

The ASUS Q670EA-IM-A is an ATX industrial motherboard featuring rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, COM ports and three Intel LAN ports. And there is rich expandability with a PCIe slot, PCI slot, M.2 E key, and M.2 M key. This makes the ASUS Q670EA-IM-A an ideal choice for a wide range of embedded applications.

As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Supported memory clock speeds 3600,4000,4400 MHz
Maximum internal memory 128 GB
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported 7
RAID support Yes
RAID levels 0, 1, 5, 10
Maximum resolution 4096 x 2160 pixels
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 7
S/PDIF out connector Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 1
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
Number of COM connectors 5
TPM connector Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 3
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 2
DisplayPort version 1.4
Line-in Yes
Microphone in Yes
Serial ports quantity 1
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller Intel® I210-AT, Intel I226-LM, Intel I226-V
Motherboard chipset Intel Q670E
Audio chip Realtek ALC897
Motherboard form factor ATX
Motherboard chipset family Intel
Linux operating systems supported Yes
Windows operating systems supported Windows 10 IoT Enterprise, Windows 10 x64
Certification CE, FCC, BSMI, VCCI, RCM CE-LVD
PCI Express x4 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 2
PCI slots 2
Number of M.2 (M) slots 2
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) 0 - 60 °C
Operating relative humidity (H-H) 10 - 95%
Width 305 mm
Depth 244 mm
PCI Express x4 (Gen 3.x) slots 1
