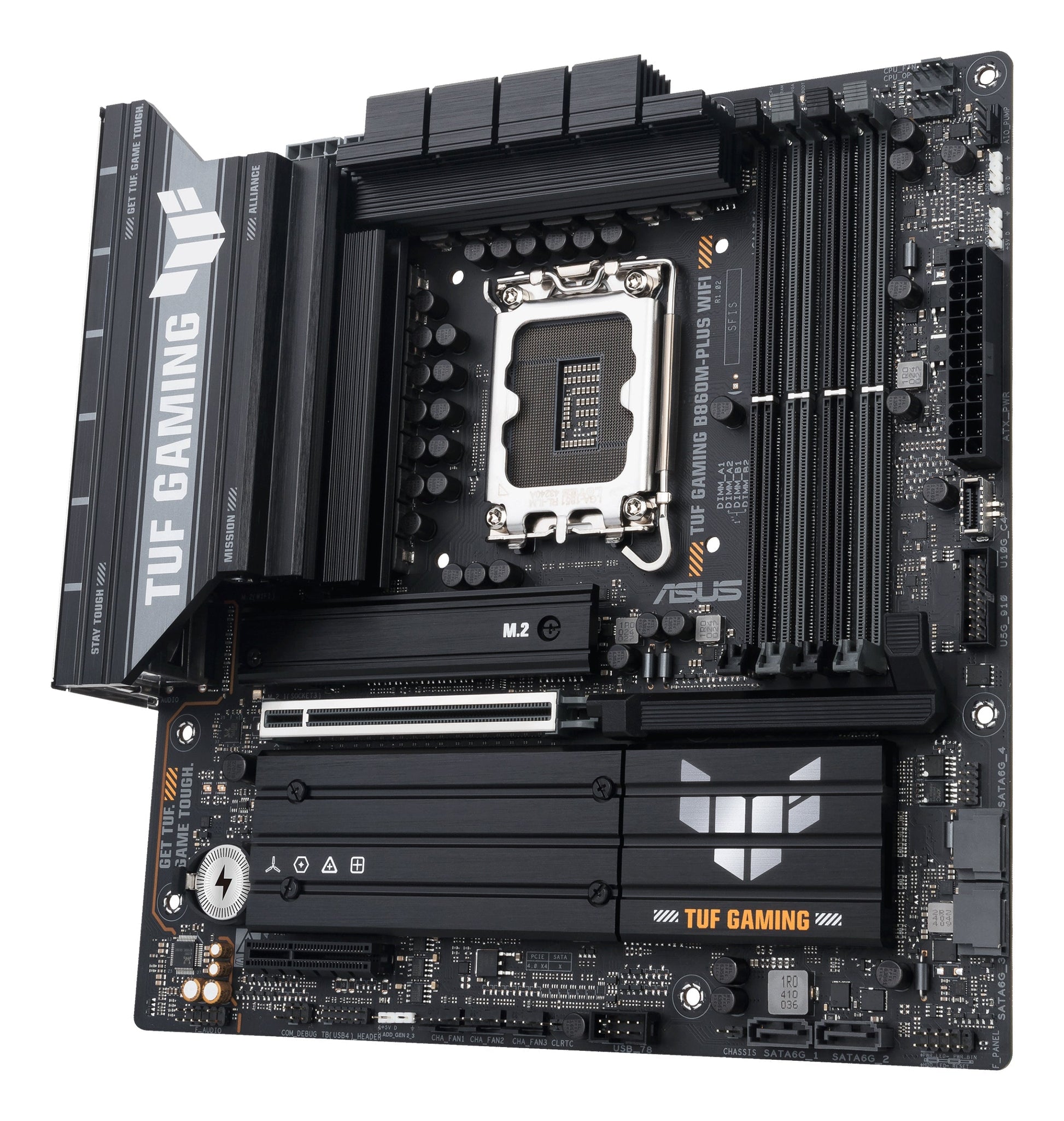

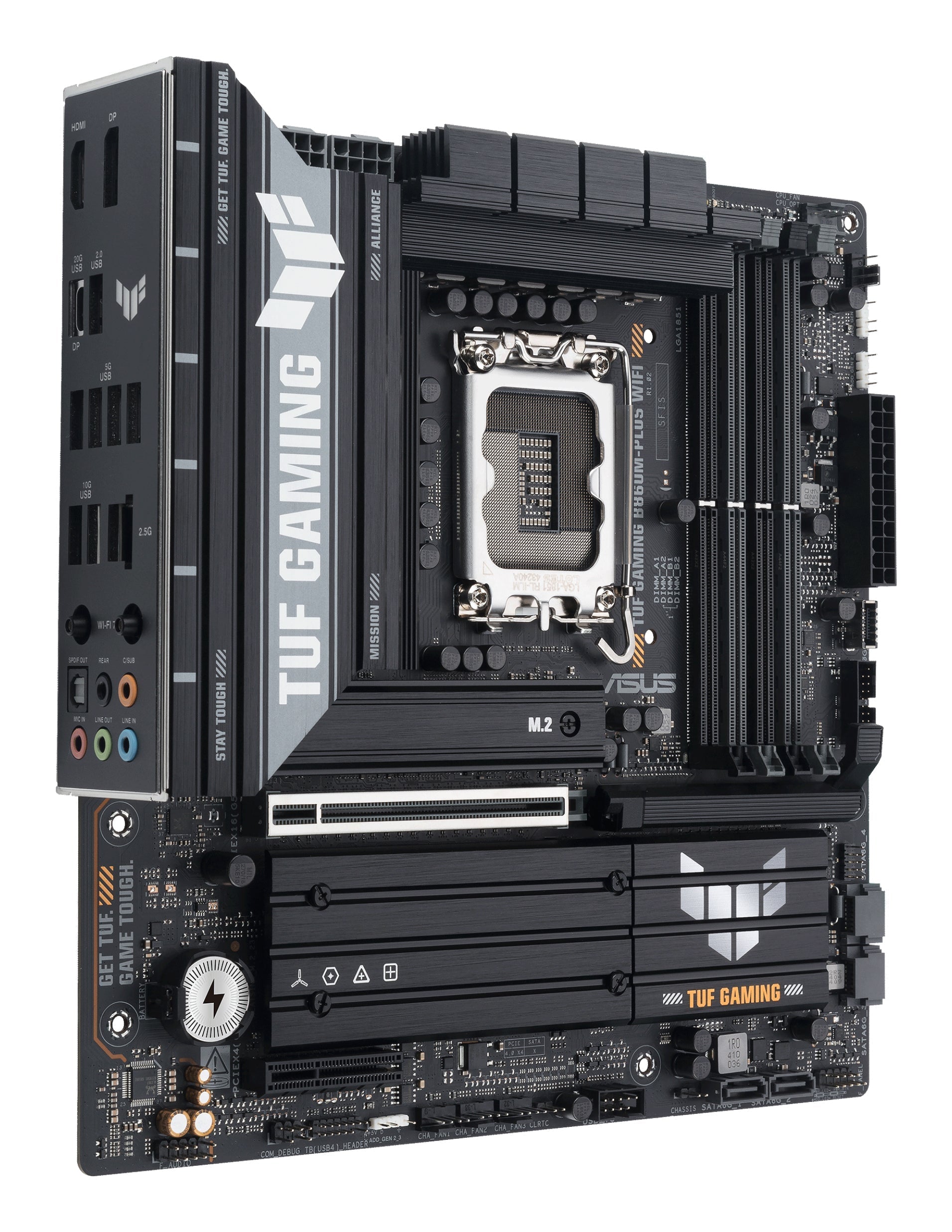

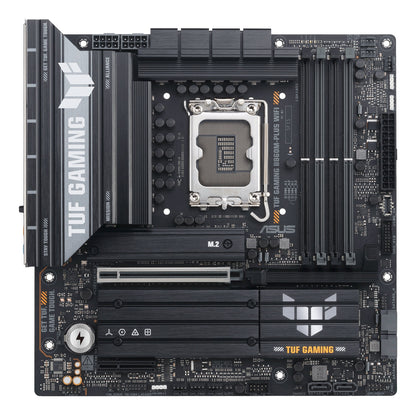

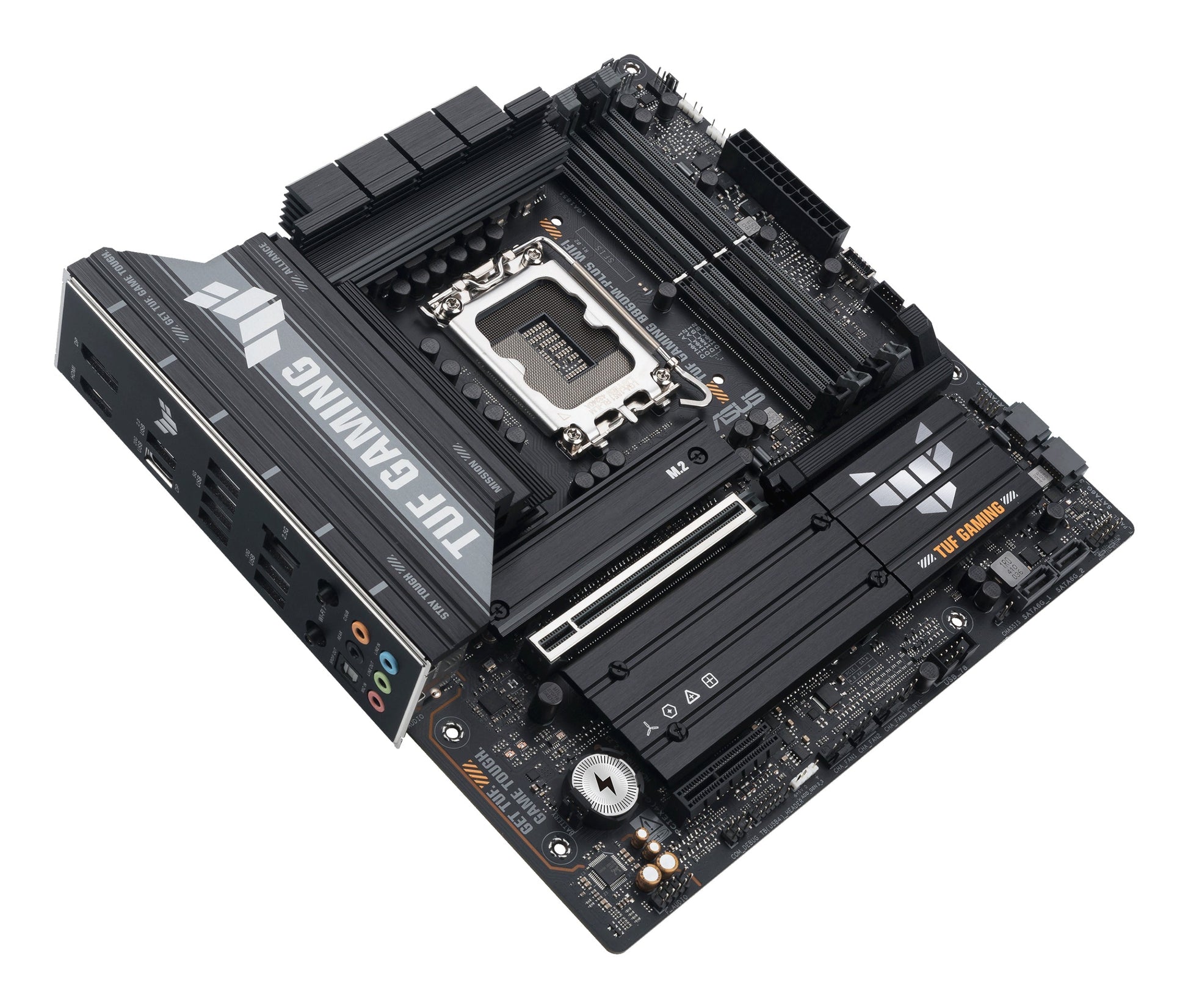

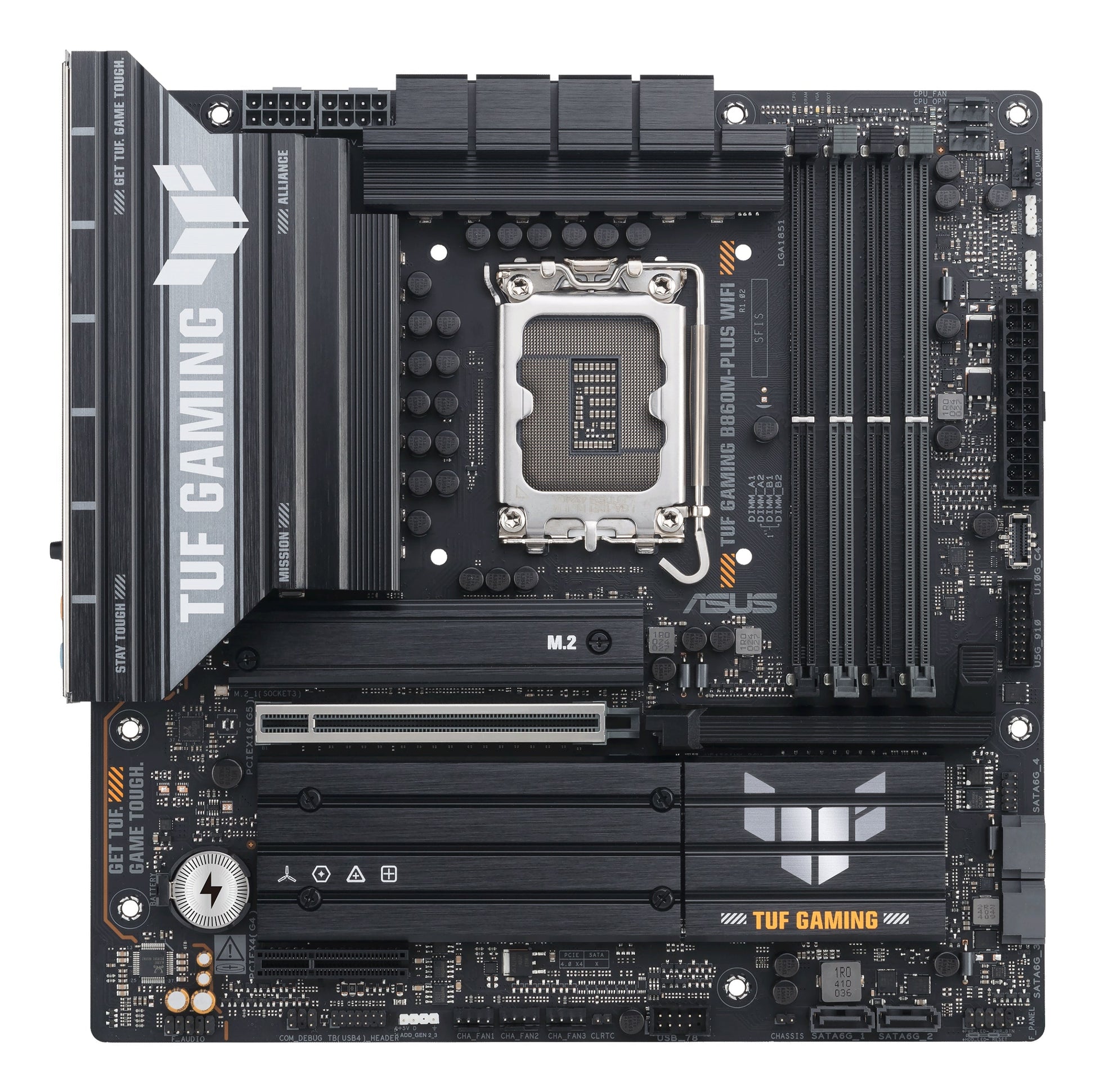

ASUS TUF GAMING B860M-PLUS WIFI
ASUS TUF GAMING B860M-PLUS WIFI
Impossible de charger la disponibilité du service de retrait
B860M-PLUS WIFI
ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Processor manufacturer | Intel |
Processor socket | LGA 1851 (Socket V1) |
Compatible processor series | Intel Core Ultra (Series 2) |
Supported processor sockets | LGA 1851 |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
ECC сompatibility | Non-ECC |
Maximum internal memory | 256 GB |
Unbuffered memory | Yes |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Number of HDDs supported | 4 |
Number of storage drives supported | 7 |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
Parallel processing technology support | Not supported |
On-board graphics card | No |
USB 2.0 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
Front panel connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
Number of chassis fan connectors | 3 |
Chassis intrusion connector | Yes |
Thunderbolt headers | 1 |
12V power connector | Yes |

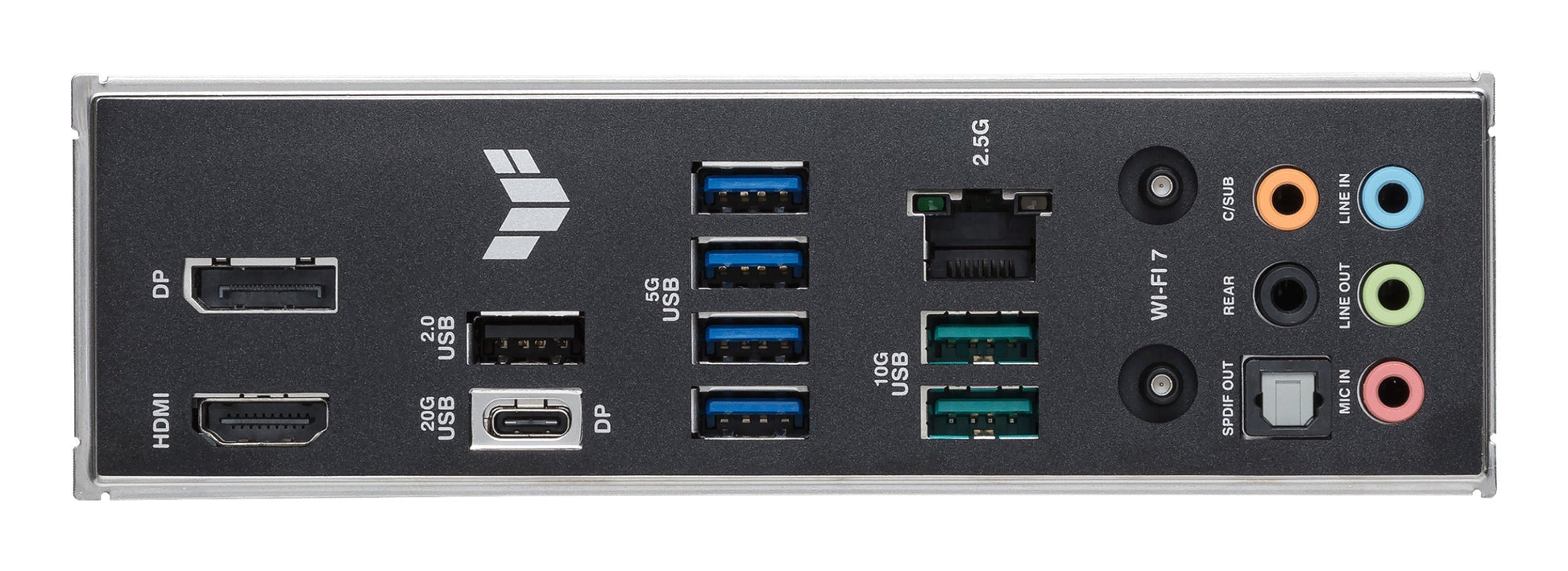

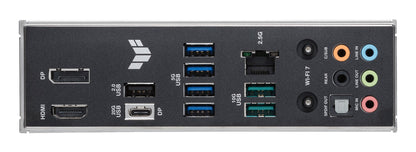

USB 2.0 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
S/PDIF out port | Yes |

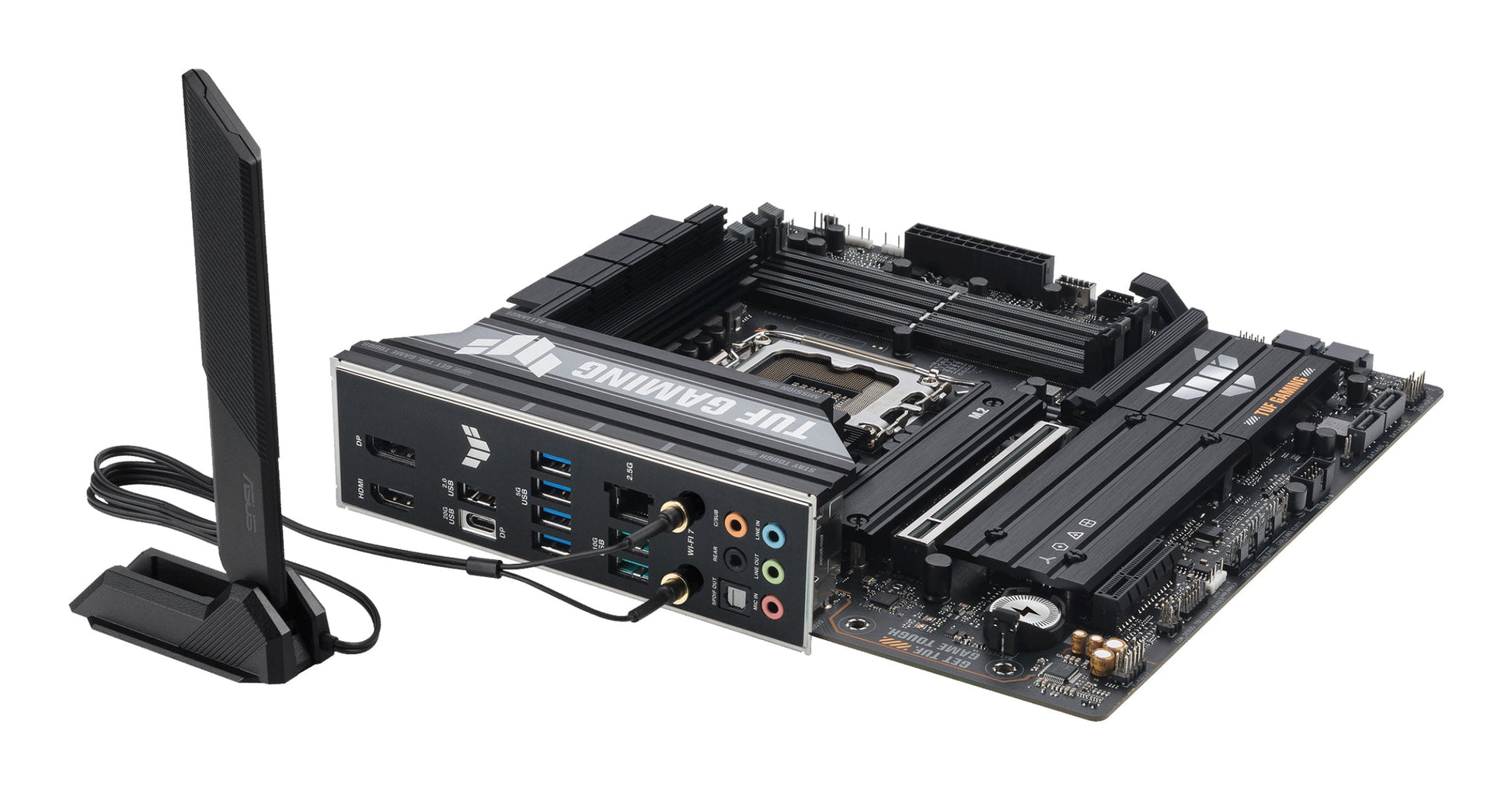

WiFi-AP antenna jack | 1 |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi standards | Wi-Fi 7 (802.11be) |
Bluetooth | Yes |
Bluetooth version | 5.4 |
Motherboard chipset | Intel B860 |
Audio output channels | 7.1 channels |
Product colour | Black |
Component for | PC |
Motherboard form factor | micro ATX |
Motherboard chipset family | Intel |
Windows operating systems supported | Windows 11 |
PCI Express x4 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 3 |
1st M.2 largest key size | 2280 |
1st M.2 highest PCI Express generation | 5.0 |
2nd M.2 largest key size | 2280 |
2nd M.2 highest PCI Express generation | 4.0 |
3rd M.2 largest key size | 2280 |
3rd M.2 highest PCI Express generation | 4.0 |
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
Package width | 275 mm |
Package depth | 275 mm |
Package height | 67.5 mm |
Package weight | 1.65 kg |
Width | 244 mm |
Depth | 244 mm |
Cables included | SATA |
Antenna included | Yes |
Screws included | Yes |
